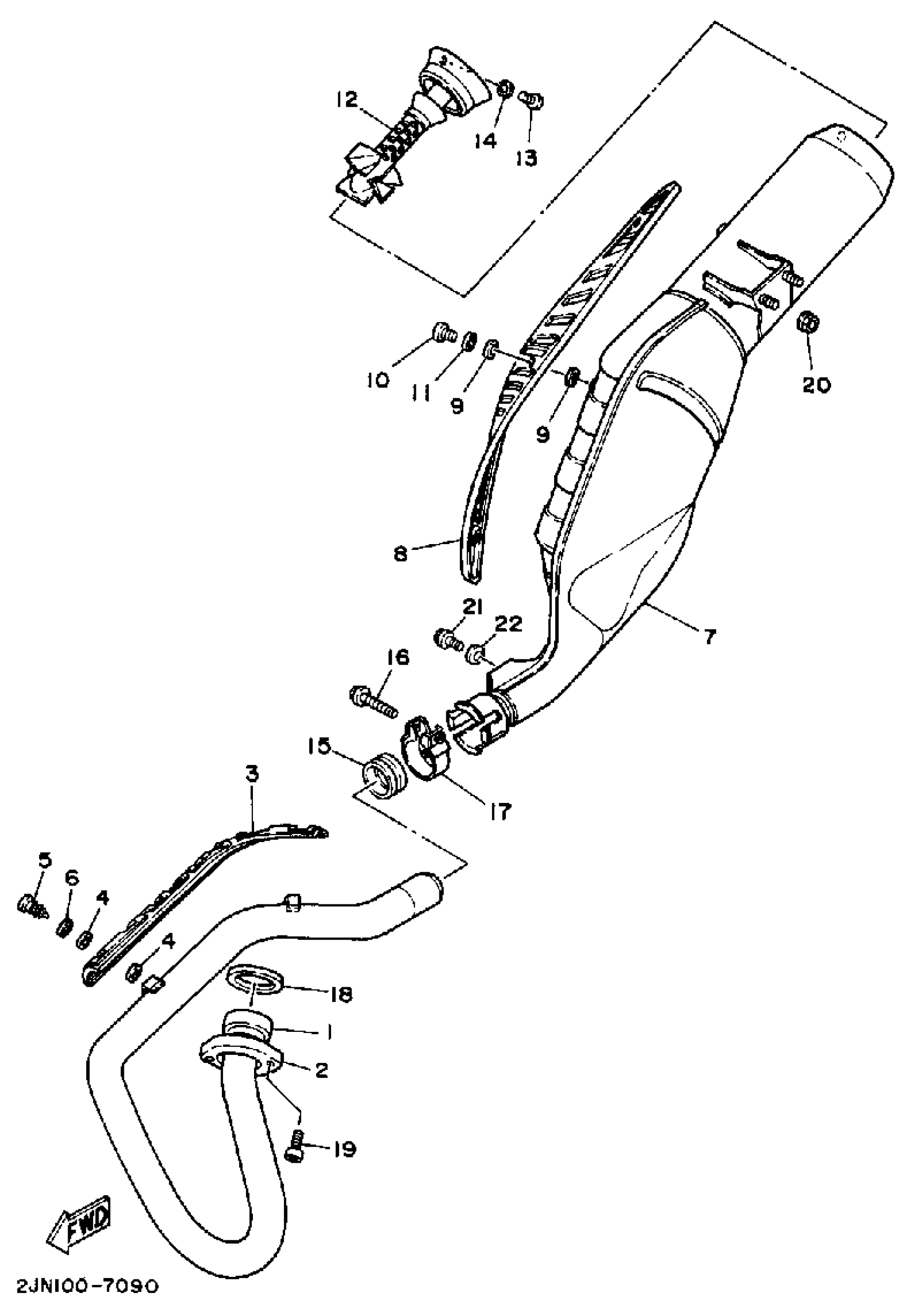

Yamaha BW350U (BIG WHEEL) 1988 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
2JN-14611-00-00
Unavailable
2
NUT, RING
2JN-14612-00-00
Unavailable
3
PROTECTOR, EXHAUST PIPE
54G-14628-01-00
Unavailable
4
WASHER, PROTECTOR
30X-14766-00-00
Unavailable
7
MUFFLER L
2JN-14711-00-00
Unavailable
8
PROTECTER, MUFF 2
2JN-14728-00-00
Unavailable
9
WASHER, PROTECTOR
30X-14766-00-00
Unavailable
12
PIPE, OUTLET
2JN-14752-00-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
16
UNAVAILABLE IN PRICE BOOK
95816-08945-00
Unavailable
17
BAND, MUFFLER
(2JN-14715-00-00)
Unavailable
18
GASKET, EXHAUST PIPE
3GD-14613-00-00
Unavailable
19
BOLT,SOCKET
91317-06025-00
Unavailable
20
NUT, FLANGE
95704-08500-00
Unavailable
21
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
22
WASHER (853)
90201-08326-00
Unavailable
