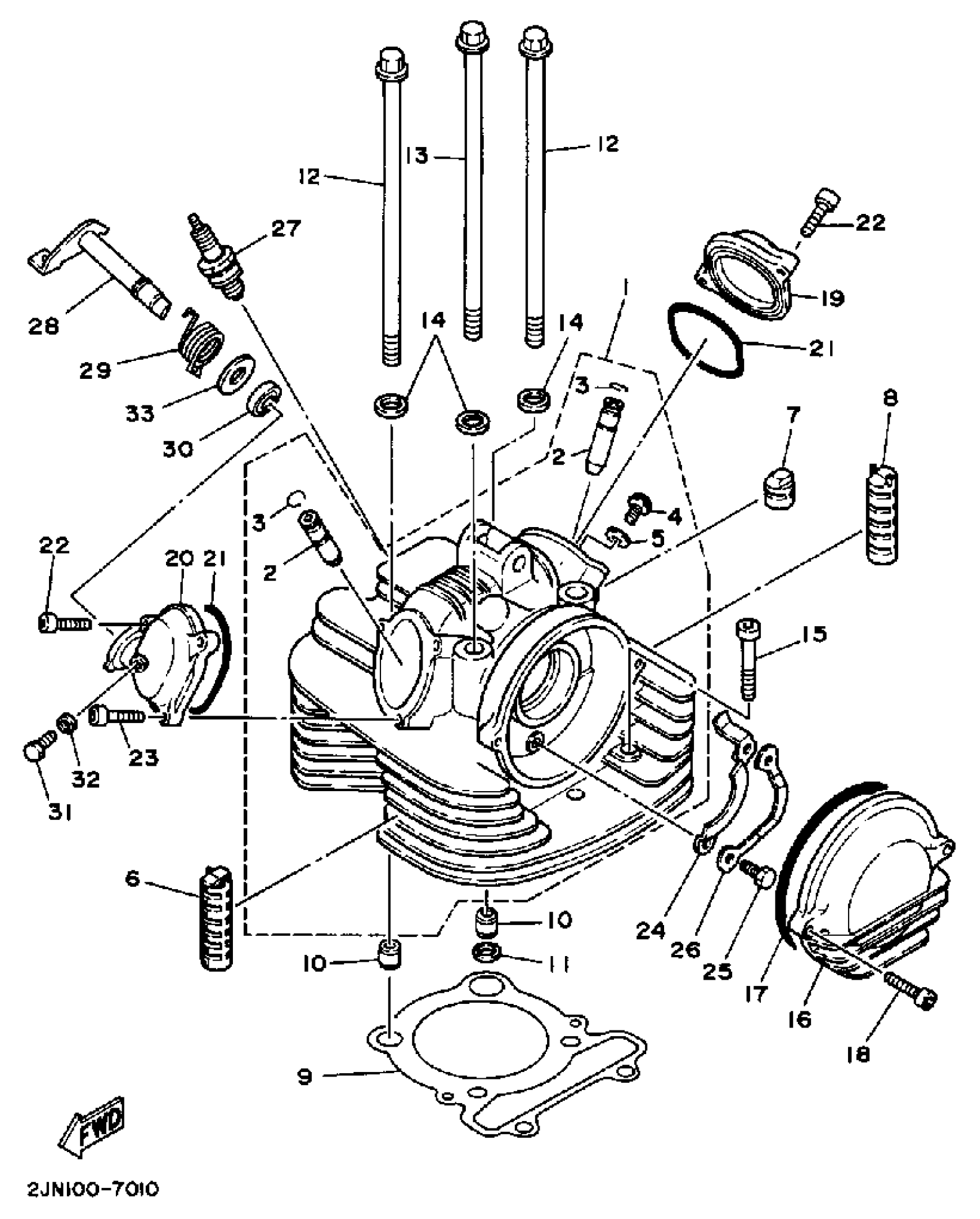

Yamaha BW350U (BIG WHEEL) 1988 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(2JN-11110-00-00)

Unavailable

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$58.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT UNION 137131650000

90401-06001-00

Unavailable

5

GASKET (4V2)

90430-06166-00

$3.76

6

ABSORBER

583-11127-00-00

$7.99

7

ABSORBER

583-11127-00-00

$7.99

8

ABSORBER

583-11127-00-00

$7.99

9

GASKET, CYLINDER HEAD 1

1UY-11181-01-00

$46.99

10

PIN, DOWEL

99530-14016-00

$3.80

11

GASKET (1L9)

90430-14131-00

$8.49

12

BOLT, FLANGE

90105-10137-00

$11.49

13

BOLT, FLANGE

90105-10136-00

$11.49

14

WASHER PLATE 341839090000

90201-10128-00

$4.82

15

BOLT, SOCKET

91317-08050-00

$8.49

16

COVER, CYLINDER HEAD SIDE 1

3Y1-11185-00-00

Unavailable

17

O-RING (15A)

93211-06635-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

COVER, CYLINDER.HEAD 2

(2JN-11186-00-00)

Unavailable

20

COVER, CYLINDER.HEAD 3

(2JN-11187-00-00)

Unavailable

21

O-RING

93210-57634-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

BOLT

90109-06556-00

Unavailable

24

PLATE

3Y1-1111F-00-00

Unavailable

25

BOLT (661)

97013-06012-00

Unavailable

26

WASHER, LOCK (3Y1)

90215-06162-00

Unavailable

27

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable

28

DECOMPRESSION WIRE ASSEMBLY

1UY-12280-00-00

Unavailable

29

SPRING, TORSION

90508-12610-00

Unavailable

30

SEAL, OIL (30X)

93102-12321-00

Unavailable

31

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

32

GASKET 256113960000

90430-06014-00

Unavailable

33

WASHER

90201-12588-00

Unavailable
