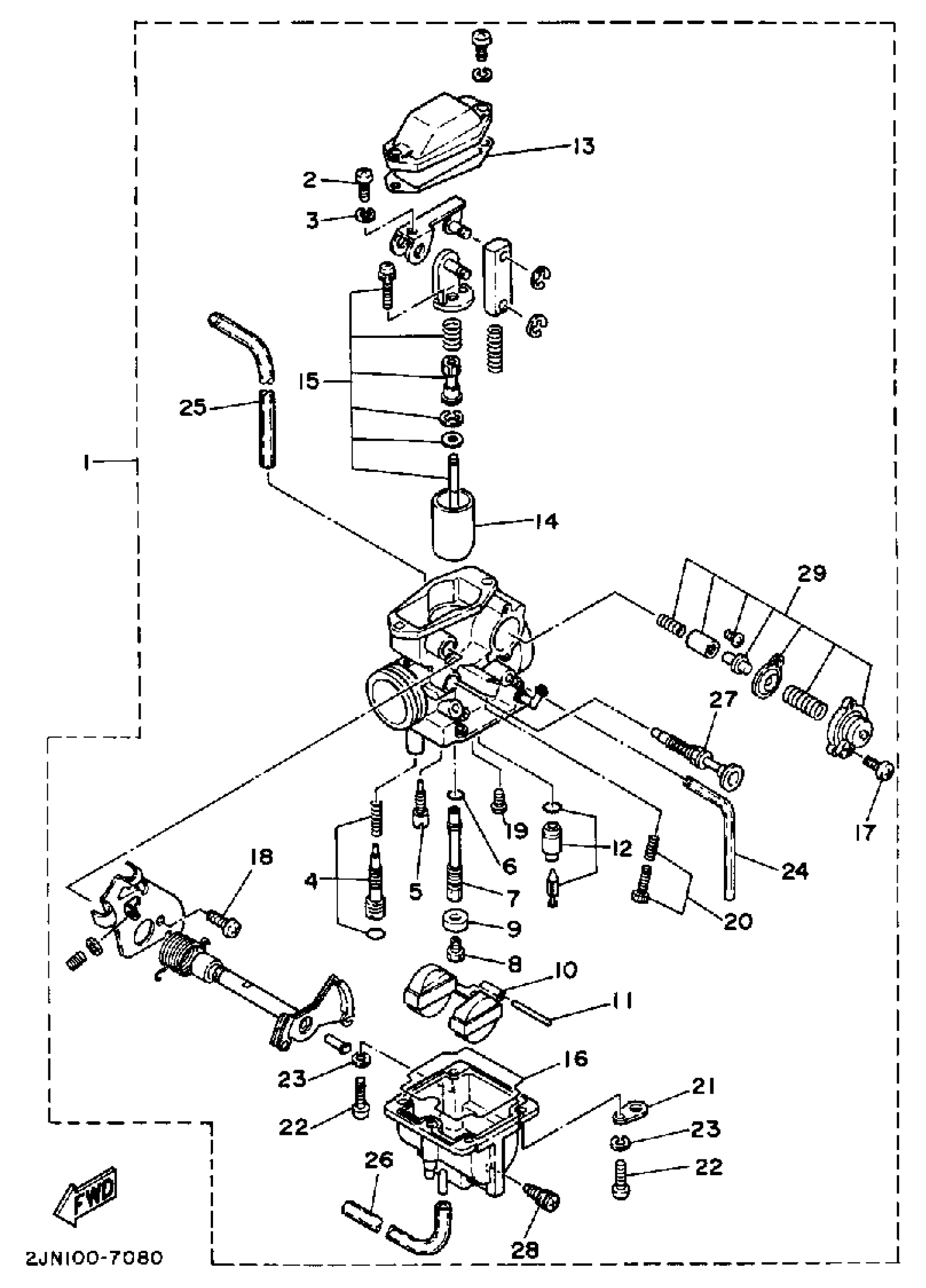

Yamaha BW350U (BIG WHEEL) 1988 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

2JN-14301-00-00

Unavailable

2

SCREW, PANHEAD (796)

98580-04016-00

$8.49

3

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

4

PILOT SCREW SET

51Y-14105-00-00

$12.99

5

. JET, PILOT (40)

2JN-14342-23-00

Unavailable

6

GASKET

360-24512-00-00

$9.99

7

. NOZZLE, MAIN

2JN-14341-00-00

Unavailable

8

JET, MAIN (# 140)

288-14343-70-00

$10.99

9

WASHER, MAIN JET

1KH-14153-00-00

$22.99

10

FLOAT

25N-14385-00-00

Unavailable

11

. PIN, FLOAT

6E5-14386-01-00

Unavailable

12

NEEDLE VALVE SET

2JN-14107-00-00

$38.99

13

GASKET

2JN-14198-00-00

$23.99

14

VALVE, THROTTLE 1

(2JN-14312-40-00)

Unavailable

15

. NEEDLE SET

2JN-1490J-00-00

Unavailable

16

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

Unavailable

17

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

19

SCREW, BIND(6L2)

98980-04006-00

Unavailable

20

. THROTTLE SCREW SET

3WP-14103-00-00

Unavailable

21

PLATE

5Y1-14146-00-00

Unavailable

22

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

23

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

24

. PIPE

2JN-14197-00-00

Unavailable

25

PIPE

56R-14196-00-00

Unavailable

26

PIPE

5Y1-14396-00-00

Unavailable

27

. PLUNGER, STARTER

2JN-14371-00-00

Unavailable

28

PLUG, SCREW

5Y1-14115-00-00

Unavailable

29

DIAPHRAGM SET 1

5Y1-1490A-00-00

Unavailable
