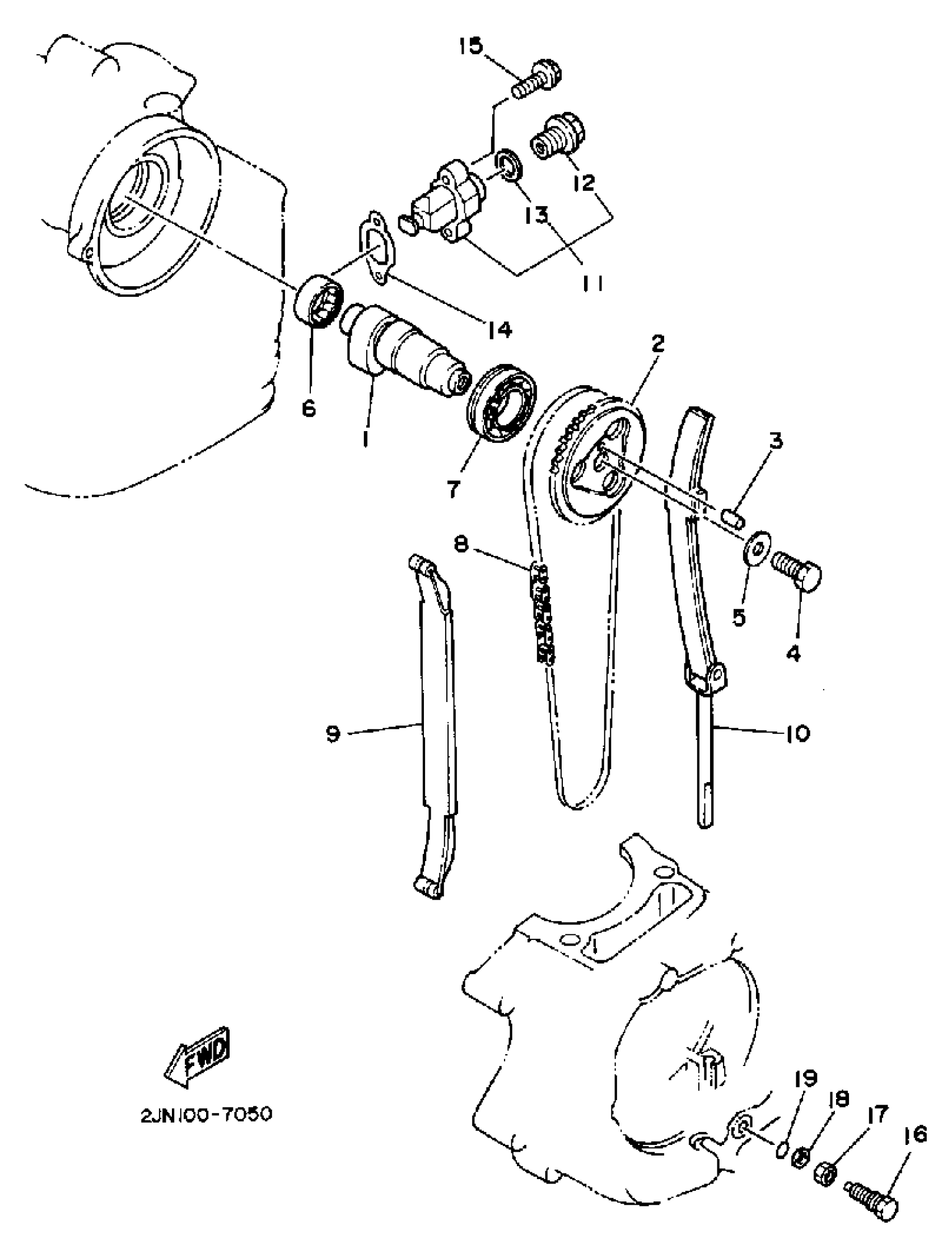

Yamaha BW350U (BIG WHEEL) 1988 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSEMBLY 1

1YW-12170-00-00

Unavailable

SPROCKET, CAM CHAIN

3Y1-12176-00-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$34.99

BEARING (31G)

93306-00515-00

$42.99

CHAIN, CAM SHAFT (1L9)

94500-02092-00

$80.99

GUIDE, STOPPER 1

2JN-12231-00-00

Unavailable

GUIDE, STOPPER 2

3Y1-12241-00-00

Unavailable

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

PLUG

31G-12222-00-00

$24.99

GASKET, TENSIONER

31G-12214-00-00

$14.49

GASKET, TENSIONER CASE

3GD-12213-00-00

$6.99

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

BOLT

90109-08600-00

Unavailable

. NUT

95380-08700-00

Unavailable

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

O-RING (26H)

93210-06632-00

Unavailable
