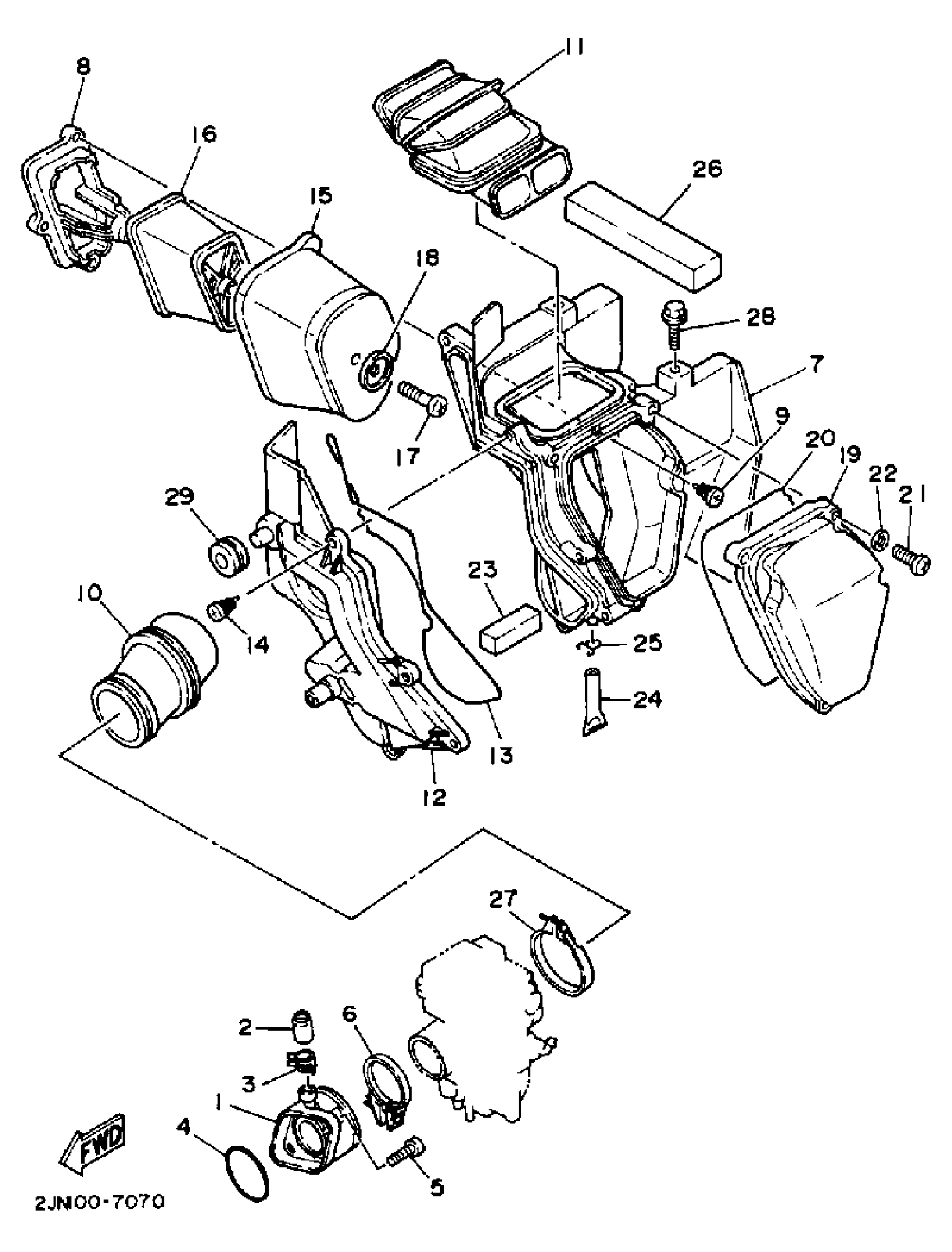

Yamaha BW350U (BIG WHEEL) 1988 AIR FILTER Diagram

JOINT, CARBURETOR 1

2JN-13586-00-00

Unavailable

PLUG, BLIND

16G-13569-00-00

$7.99

CLIP (3G0)

90467-10039-00

$9.49

O-RING (10L)

93210-44545-00

$13.49

BOLT, SOCKET

91317-08025-00

$8.49

HOSE CLAMP ASSY

90450-49001-00

$16.99

CASE, AIR CLEANER 1

2JN-14411-00-00

Unavailable

PLATE, ELEMENT FTNG

(2JN-14468-00-00)

Unavailable

SCREW, TAPPING(6U1)

97780-50610-00

$8.49

JOINT, AIR CLNR 1

2JN-14453-00-00

Unavailable

DUCT

2JN-14437-00-00

Unavailable

CAP, CLEANER CASE 1

2JN-14412-00-00

Unavailable

SEAL

1VJ-14462-00-00

$18.49

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

ELEMENT, AIR CLEANER

2JN-14451-01-00

Unavailable

GUIDE, ELEMENT

2JN-14458-00-00

Unavailable

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

CAP, CLEANER CASE 2

2JN-14422-00-00

Unavailable

SEAL

1VJ-14462-00-00

$18.49

SCREW, PAN HEAD

98517-05020-00

Unavailable

WASHER(1RW)

92907-05600-00

Unavailable

SEAL

36X-14462-00-00

Unavailable

PIPE, DRAIN

34X-1443E-00-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

TRIM, LOWER

89A-77214-00-00

Unavailable

HOSE CLAMP ASSY

90450-56002-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable

GROMMET

90480-18411-00

Unavailable
