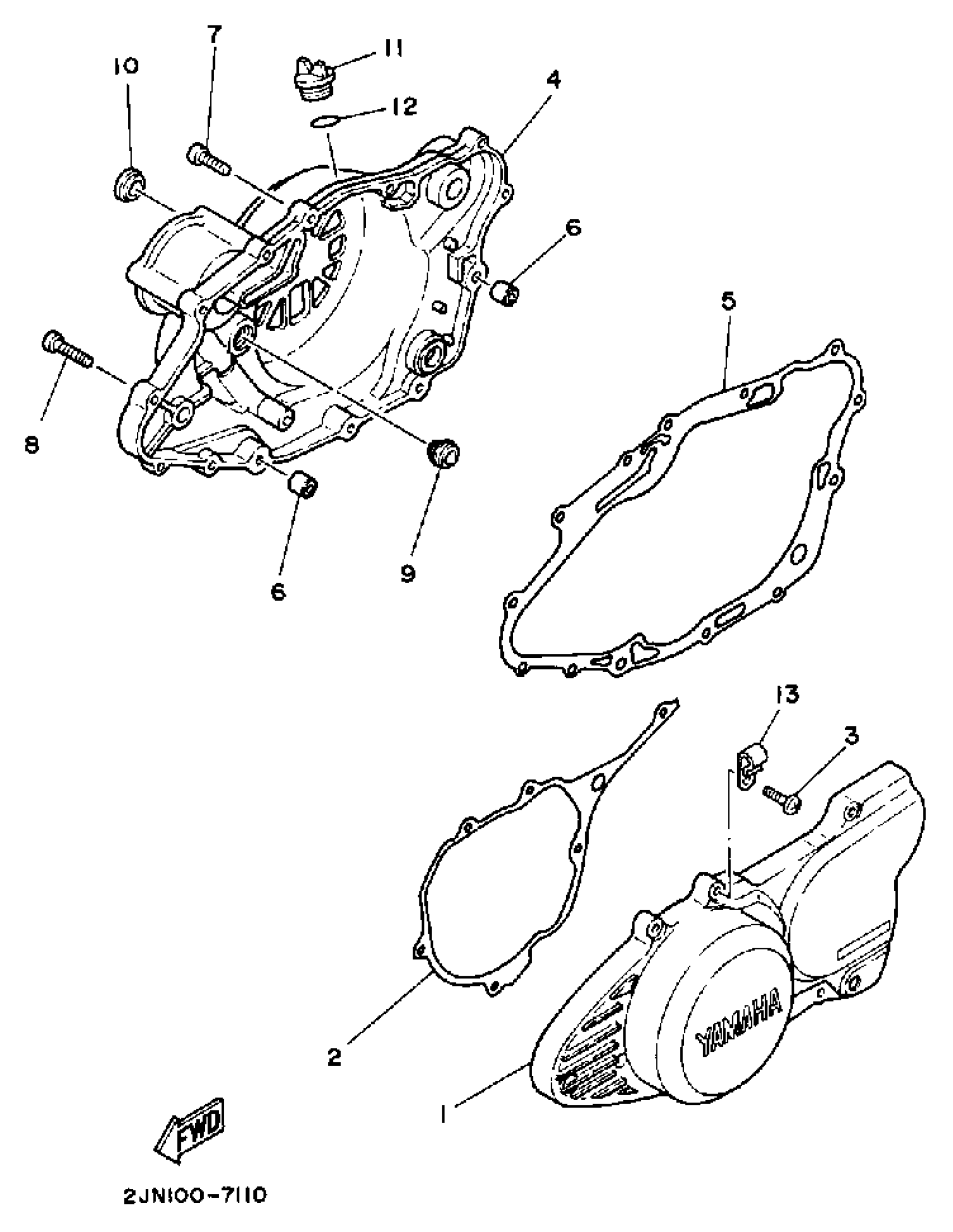

Yamaha BW350T (BIG WHEEL) 1987 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

2JN-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3Y6-15451-01-00

Unavailable

3

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

4

COVER, CRANKCASE R

2JN-15421-00-00

Unavailable

5

GASKET, CRCS CVR 2

2JN-15461-01-00

Unavailable

6

PIN, DOWEL

99530-12016-00

$3.93

7

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

8

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

9

OIL SEAL (3Y1)

93101-14092-00

$9.40

10

GAUGE, LEVEL

3Y1-15361-00-00

$24.30

11

PLUG, OIL

3Y1-15363-10-00

$16.14

12

O-RING (646)

93210-19123-00

Unavailable

13

CLAMP

90465-08028-00

$4.40
