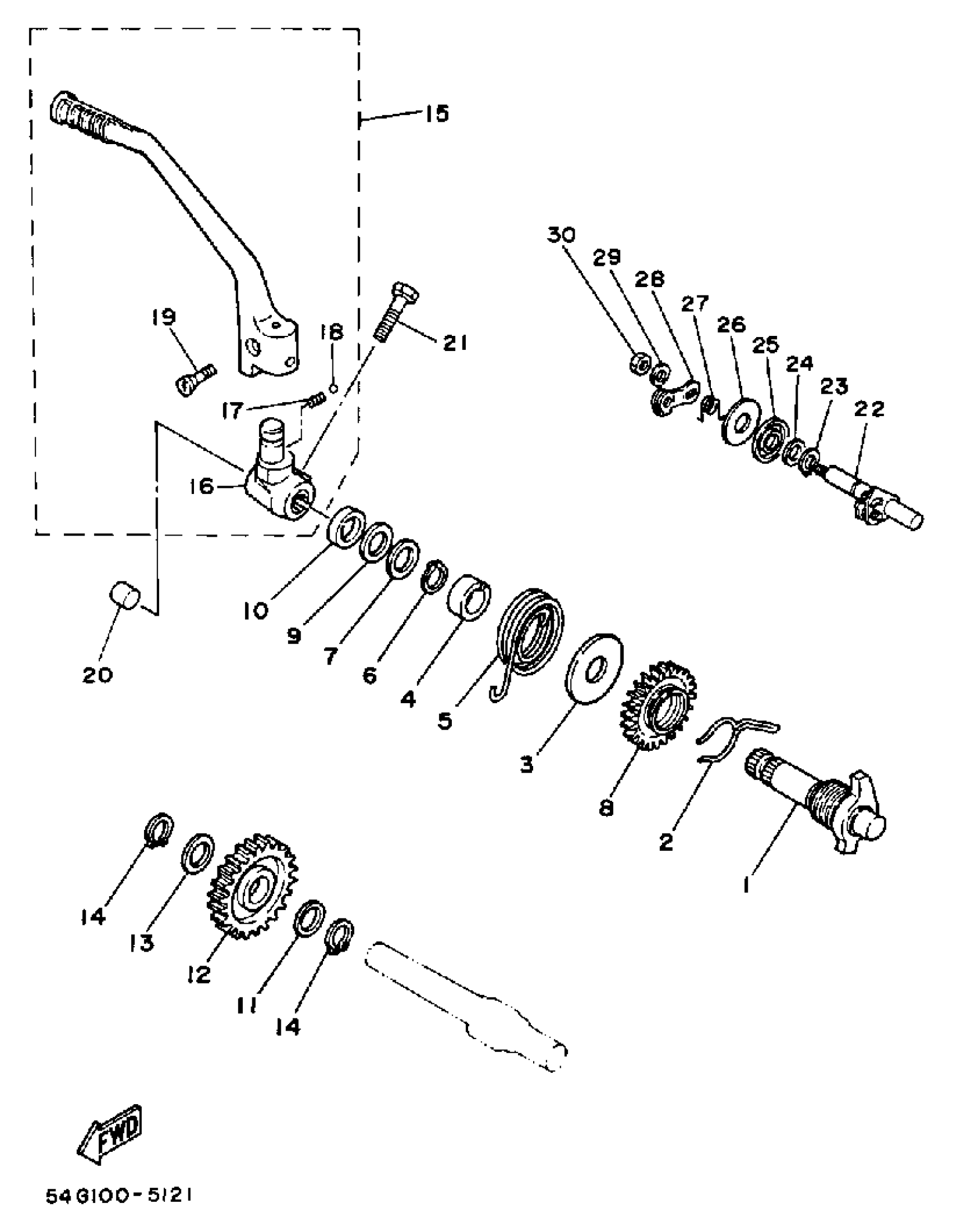

Yamaha BW200S (BIG WHEEL) 1986 STARTER Diagram

KICK AXLE ASSY

36X-15660-01-00

$152.99

CLIP (15A)

90468-26122-00

$8.49

COVER, SPRING

401-15676-00-00

$7.99

SPACER

15A-15666-00-00

$7.99

SPRING, TORSION (15A)

90508-26538-00

$12.49

CIRCLIP(1EY)

99009-17400-00

$4.73

WASHER, PLATE (15A)

90201-175F6-00

$10.49

GEAR, KICK

36X-15641-00-00

Unavailable

WASHER (15A)

90209-17226-00

$9.49

OIL SEAL (15A)

93102-17263-00

$10.49

WASHER, PLATE (15A)

90201-173F4-00

$8.49

GEAR, KICK IDLE

15A-15651-01-00

$67.99

WASHER, CLAW (15A)

90214-17028-00

$8.49

CIRCLIP(1EY)

99009-17400-00

$4.73

KICK CRANK ASSY

54G-15620-01-00

$170.99

BOSS, KICK CRANK

54G-15621-00-00

Unavailable

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

BALL (12R)

93507-32031-00

Unavailable

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

PLUG 288251390000

90338-18014-00

Unavailable

BOLT, HEXAGON

97013-08030-00

Unavailable

DECOMP. LEVER ASSY

36X-1561A-00-00

Unavailable

CIRCLIP(10W)

99009-10400-00

Unavailable

WASHER, PLATE (2W5)

90201-10614-00

Unavailable

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

Unavailable

WASHER, PLATE(52H)

90201-105J4-00

Unavailable

SPRING, TORSION (36X)

90508-14620-00

Unavailable

LEVER, CABLE (4J7-1561G-00)

36X-1561G-00-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable

NUT(JN5)

95317-06700-00

Unavailable
