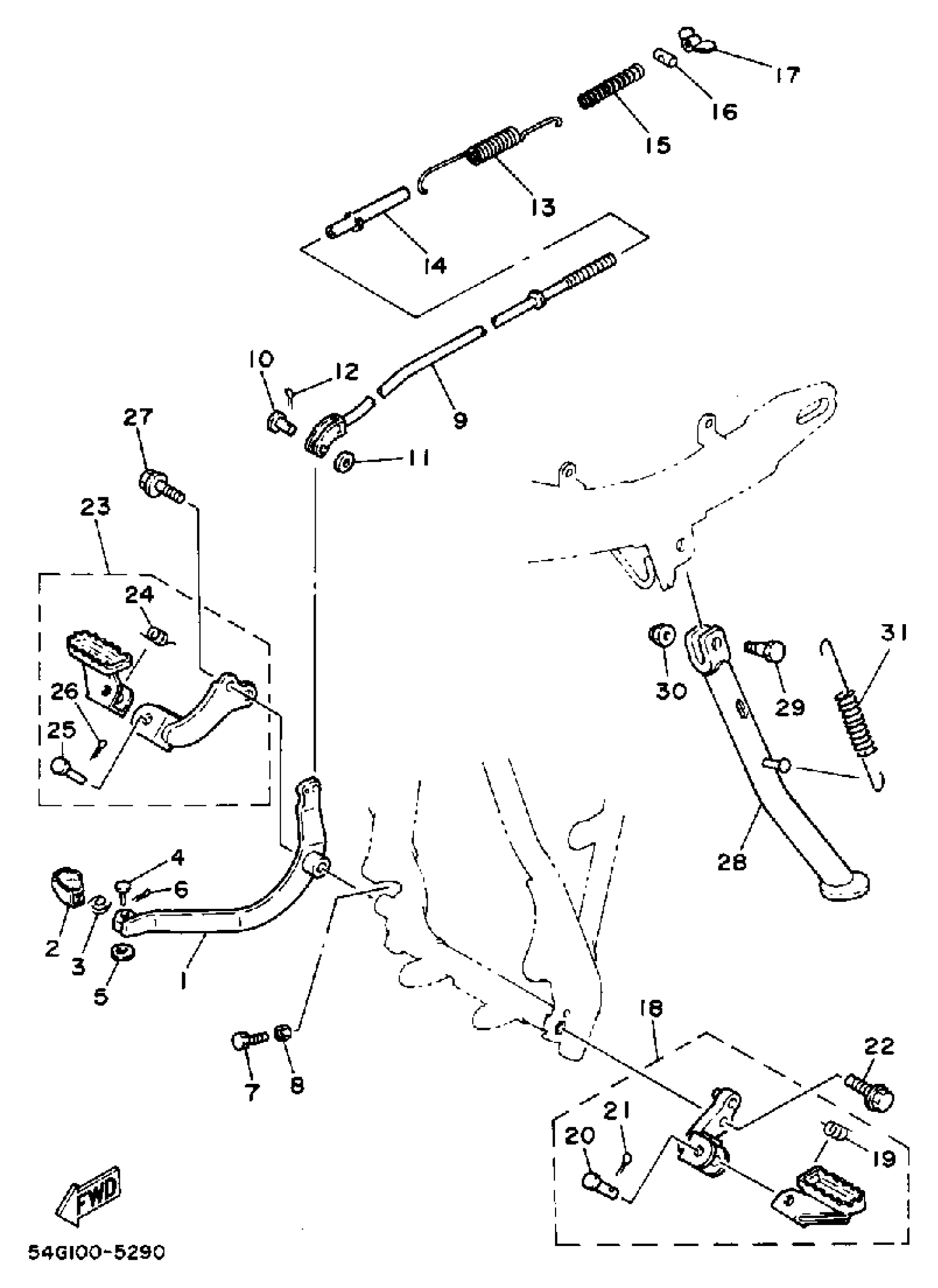

Yamaha BW200S (BIG WHEEL) 1986 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

23J-27211-00-90

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

6

PIN, COTTER

91490-20025-00

$1.99

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

NUT(650)

95380-06700-00

$8.49

9

ROD, BRAKE

54G-27231-00-00

Unavailable

10

PIN, CLEVIS (24X)

90240-06103-00

$7.49

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

PIN, COTTER

91490-20025-00

$1.99

13

SPRING, TENSION

90506-18289-00

$14.99

14

COVER, SPRING

1M1-27244-00-00

$6.99

15

SPRING, (180-27236-00)

90501-10245-00

$8.49

16

PIN 1562723700

90249-12008-00

Unavailable

17

NUT (25K)

90179-06411-00

Unavailable

18

FRT FOOTREST ASSEMBLY LASSEMBLY (L)

15A-27410-00-90

Unavailable

19

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

20

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

22

BOLT,FLANGE

95817-12025-00

Unavailable

23

FRONT FOOTREST ASSY (RIGHT)

15A-27420-02-90

Unavailable

24

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

25

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

26

PIN, COTTER

91490-25020-00

Unavailable

27

BOLT,HEXAGON (447)

90105-10058-00

Unavailable

28

STAND, SIDE

54G-27311-01-33

Unavailable

29

BOLT

90109-10473-00

Unavailable

30

NUT, U

90185-10037-00

Unavailable

31

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
