FRONT FORK

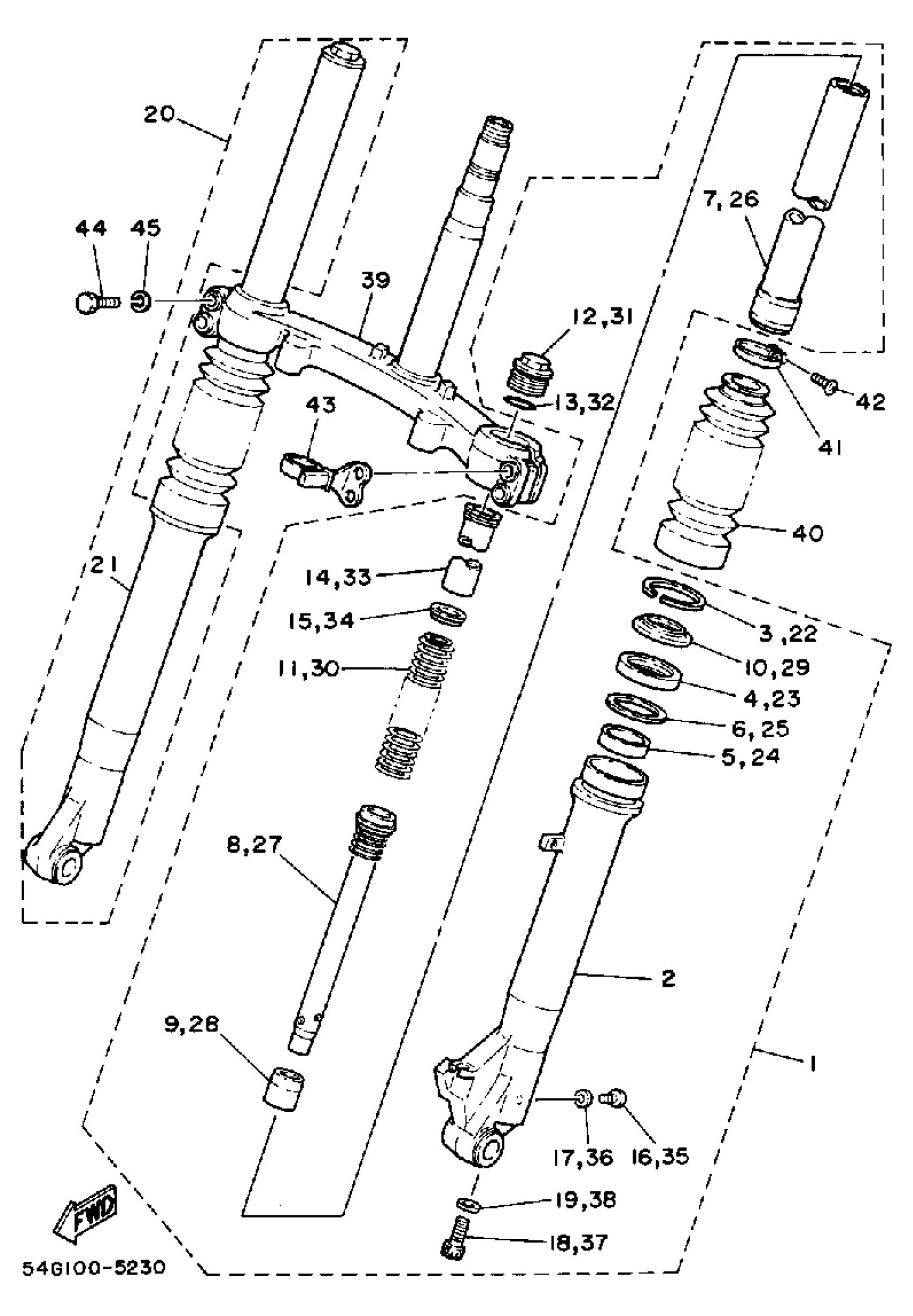

Yamaha BW200S (BIG WHEEL) 1986 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY LH
54G-23102-00-00
Unavailable
2
. TUBE, OUTER 1
54G-23126-00-00
Unavailable
7
. INNER TUBE 1
54G-23110-00-00
Unavailable
8
. CYLINDER COMP, FRONT FORK
54G-23170-00-00
Unavailable
9
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
11
SPRING, FRONT FORK
(54G-23141-00-00)
Unavailable
12
BOLT, CAP
(54G-23111-00-00)
Unavailable
14
SPACER
(36X-23118-00-00)
Unavailable
15
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
19
GASKET
509-23158-L0-00
Unavailable
20
FRONT FORK ASSEMBLY RH
54G-23103-00-00
Unavailable
21
. TUBE, OUTER 2
54G-23136-00-00
Unavailable
26
. INNER TUBE 1
54G-23110-00-00
Unavailable
26
. CYLINDER COMP, FRONT FORK
54G-23170-00-00
Unavailable
28
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
30
SPRING, FRONT FORK
(54G-23141-00-00)
Unavailable
31
BOLT, CAP
(54G-23111-00-00)
Unavailable
33
SPACER
(36X-23118-00-00)
Unavailable
34
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
35
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
36
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
37
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
38
GASKET
509-23158-L0-00
Unavailable
39
UNDER BRACKET
54G-23340-00-00
Unavailable
40
BOOT
54G-23191-00-00
Unavailable
41
BAND, BOOT
2K5-23192-00-00
Unavailable
42
SCREW
509-23194-L0-00
Unavailable
43
GUIDE, WIRE
3R4-23389-00-00
Unavailable
44
BOLT
97013-08035-00
Unavailable
45
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
