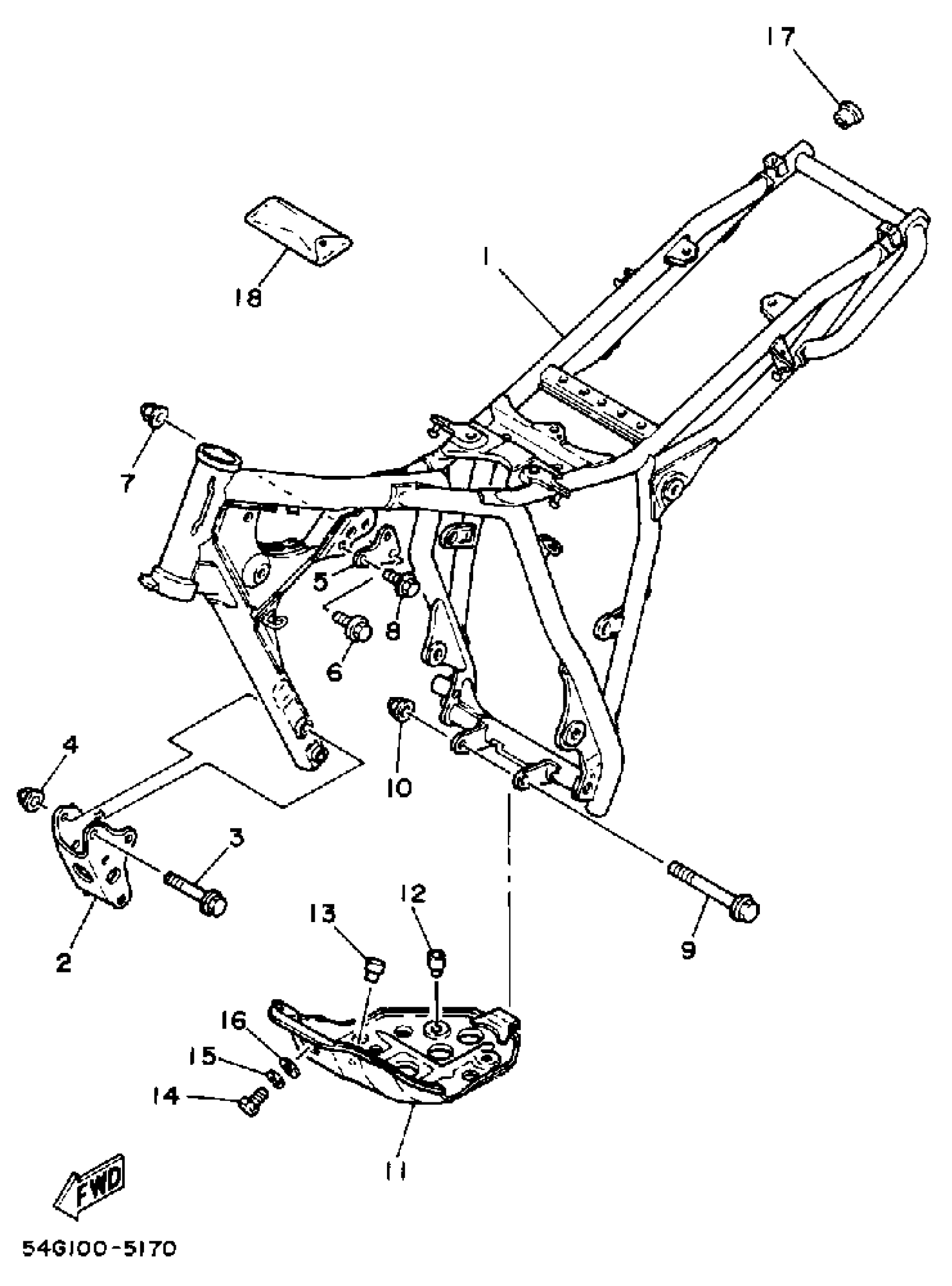

Yamaha BW200S (BIG WHEEL) 1986 FRAME Diagram

#

Description
Price

1

FRAME

(54G-21110-00-FH)

Unavailable

2

STAY, ENGINE 3

15A-21316-00-FH

Unavailable

3

BOLT, FLANGE

95814-08065-00

$3.29

4

NUT, SELF-LOCKING

90185-08169-00

$6.62

5

STAY, ENGINE 2

36X-21315-00-00

Unavailable

6

BOLT, FLANGE

95817-08050-00

$2.93

7

NUT, SELF-LOCKING

90185-08169-00

$6.62

8

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

9

BOLT, FLANGE(4EM)

95817-08120-00

$3.57

10

NUT, SELF-LOCKING

90185-08169-00

$6.62

11

PROTECTOR, ENGINE

1RL-21471-00-35

Unavailable

12

STOPPER, MAIN STAND

128-27114-00-00

$6.17

13

STOPPER

3Y1-24768-00-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

15

WASHER, SPRING

92995-06100-00

$2.95

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

PLUG (5R2)

90338-18122-00

Unavailable

18

TOOL KIT

54G-28100-00-00

Unavailable
