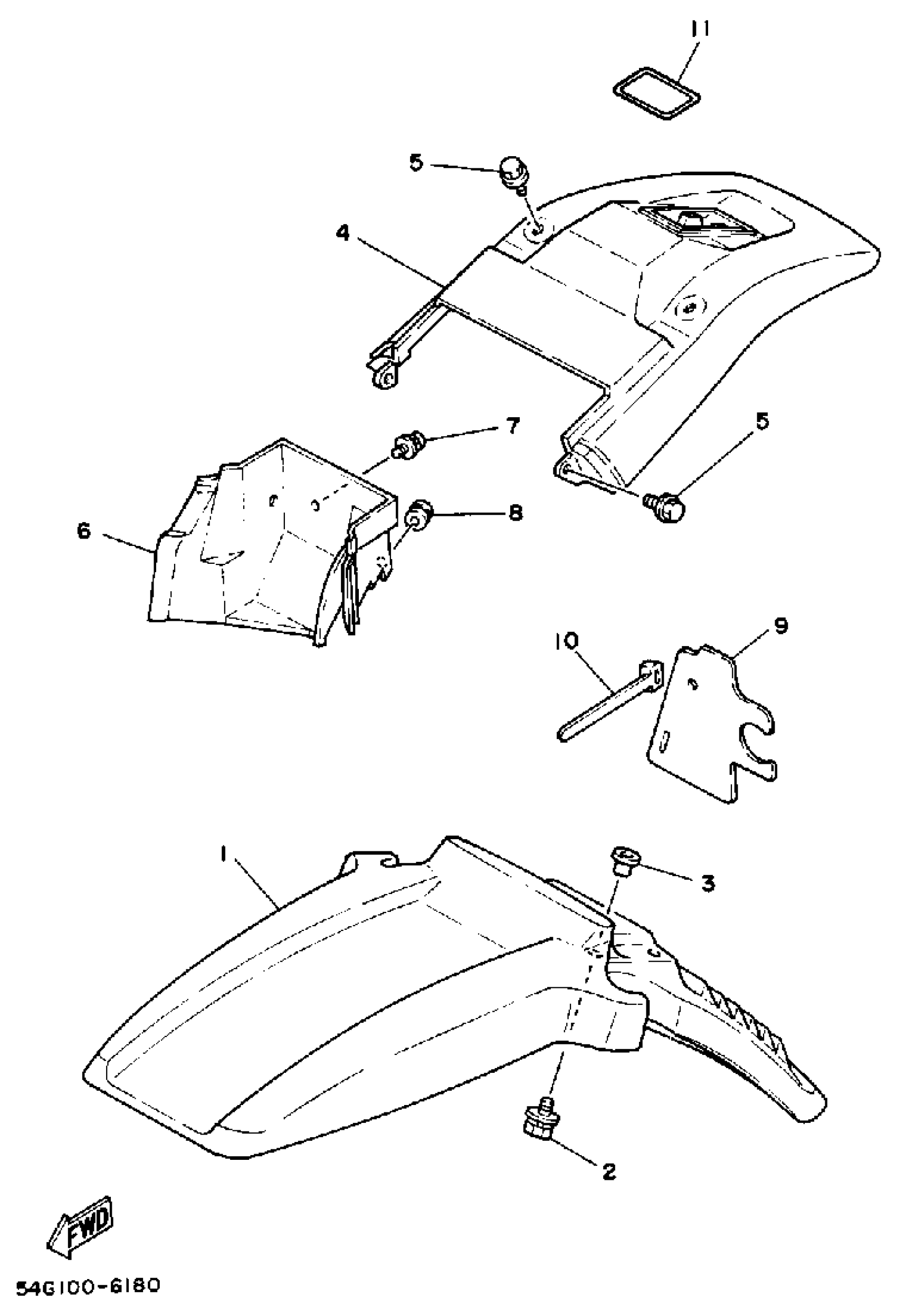

Yamaha BW200S (BIG WHEEL) 1986 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

54G-21511-10-00

Unavailable

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

WASHER (3R8)

90209-06187-00

$5.76

4

REAR FENDER

54G-21610-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06242-00

$5.47

6

MUD GUARD COMP.

(54G-21620-00-00)

Unavailable

7

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$6.03

8

DAMPER, SIDE COVER (437)

90480-12053-00

$5.39

9

FLAP

(54G-21621-00-00)

Unavailable

10

BAND, SWITCH CORD

437-83936-11-00

$3.34

11

LABEL, SAFETY

(54G-21659-00-00)

Unavailable
