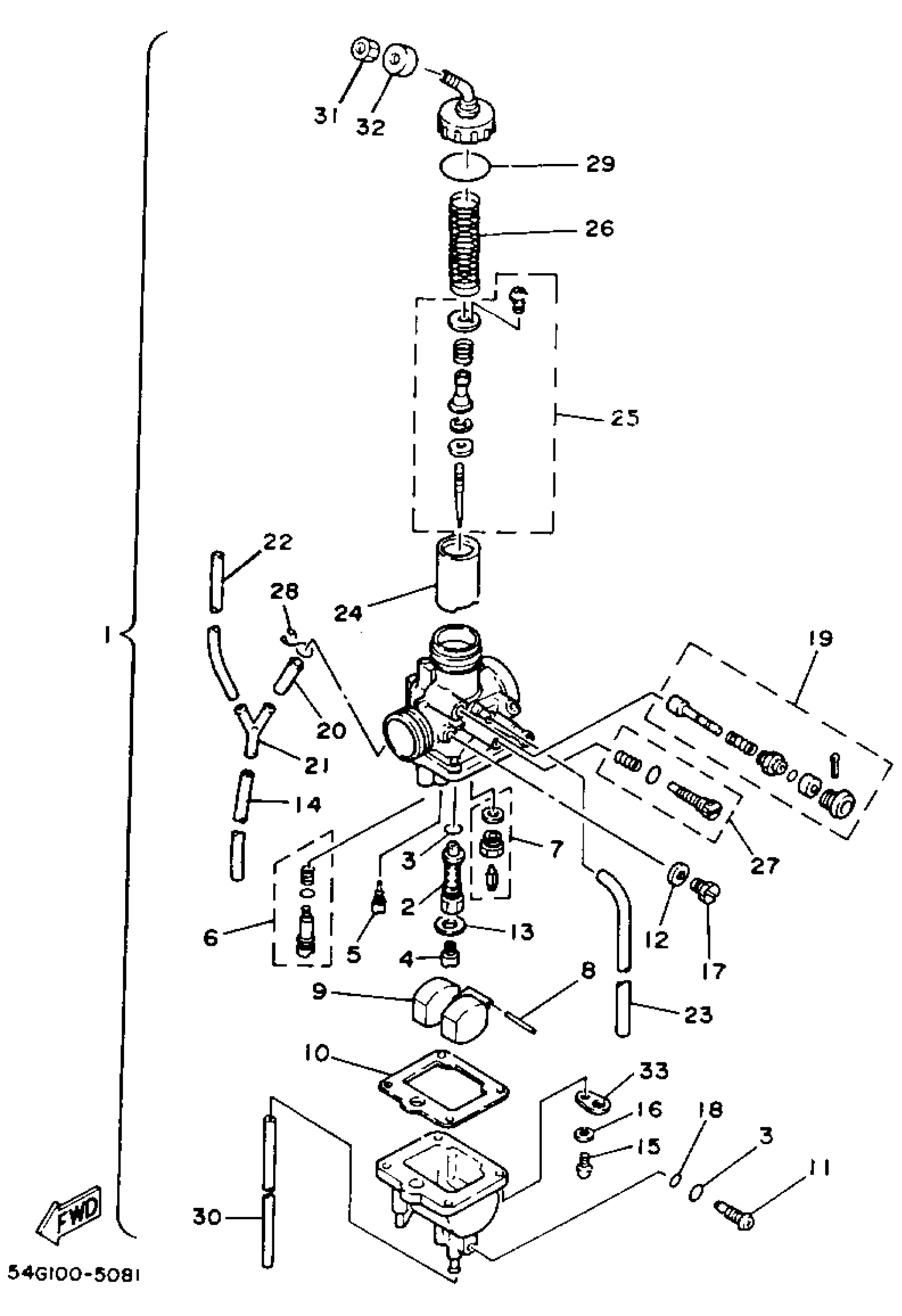

Yamaha BW200S (BIG WHEEL) 1986 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASY 1

54G-14301-03-00

Unavailable

2

. NOZZLE, MAIN

54G-14341-00-00

Unavailable

3

GASKET

360-24512-00-00

$9.99

4

JET, MAIN (# 108)

288-14343-54-00

$13.49

5

. JET, PILOT #40 (#040)

5H0-14342-20-00

Unavailable

6

PILOT SCREW SET

12V-14105-00-00

$14.49

7

. VALVE SEAT SET

47J-W1496-00-00

Unavailable

8

. PIN, FLOAT

647-14386-10-00

Unavailable

9

. FLOAT

54G-14385-00-00

Unavailable

10

GASKET, FLOAT CHAMBER

5H0-14384-00-00

Unavailable

11

. PLUG, SCREW

47J-14115-00-00

Unavailable

12

GASKET

5H0-14126-00-00

$4.73

13

WASHER, MAIN JET

38V-14153-00-00

$7.99

14

PIPE

(51Y-14197-00-00)

Unavailable

15

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

SCREW

5H0-14991-00-00

Unavailable

18

O-RING

5H0-14397-00-00

Unavailable

19

. PLUNGER, STARTER

54G-14371-01-00

Unavailable

20

PIPE

56R-14196-00-00

Unavailable

21

WAY 3 (73A)

90413-05013-00

Unavailable

22

PIPE

5Y1-14197-00-00

Unavailable

23

. PIPE 1

5H0-14348-00-00

Unavailable

24

. VALVE, THROTTLE 1

15E-14312-30-00

Unavailable

25

. NEEDLE SET

54G-1490J-00-00

Unavailable

26

SPRING,THRTL VALVE

15E-14331-00-00

Unavailable

27

THROTTLE SCREW SET

4WP-14103-00-00

Unavailable

28

CLIP

(54G-14159-00-00)

Unavailable

29

. O-RING

1J2-14147-00-00

Unavailable

30

. PIPE

36F-14396-00-00

Unavailable

31

NUT, CABLE ADJUSTING

85L-14161-00-00

Unavailable

32

. CAP

15A-14118-00-00

Unavailable

33

PLATE

5Y1-14146-00-00

Unavailable
