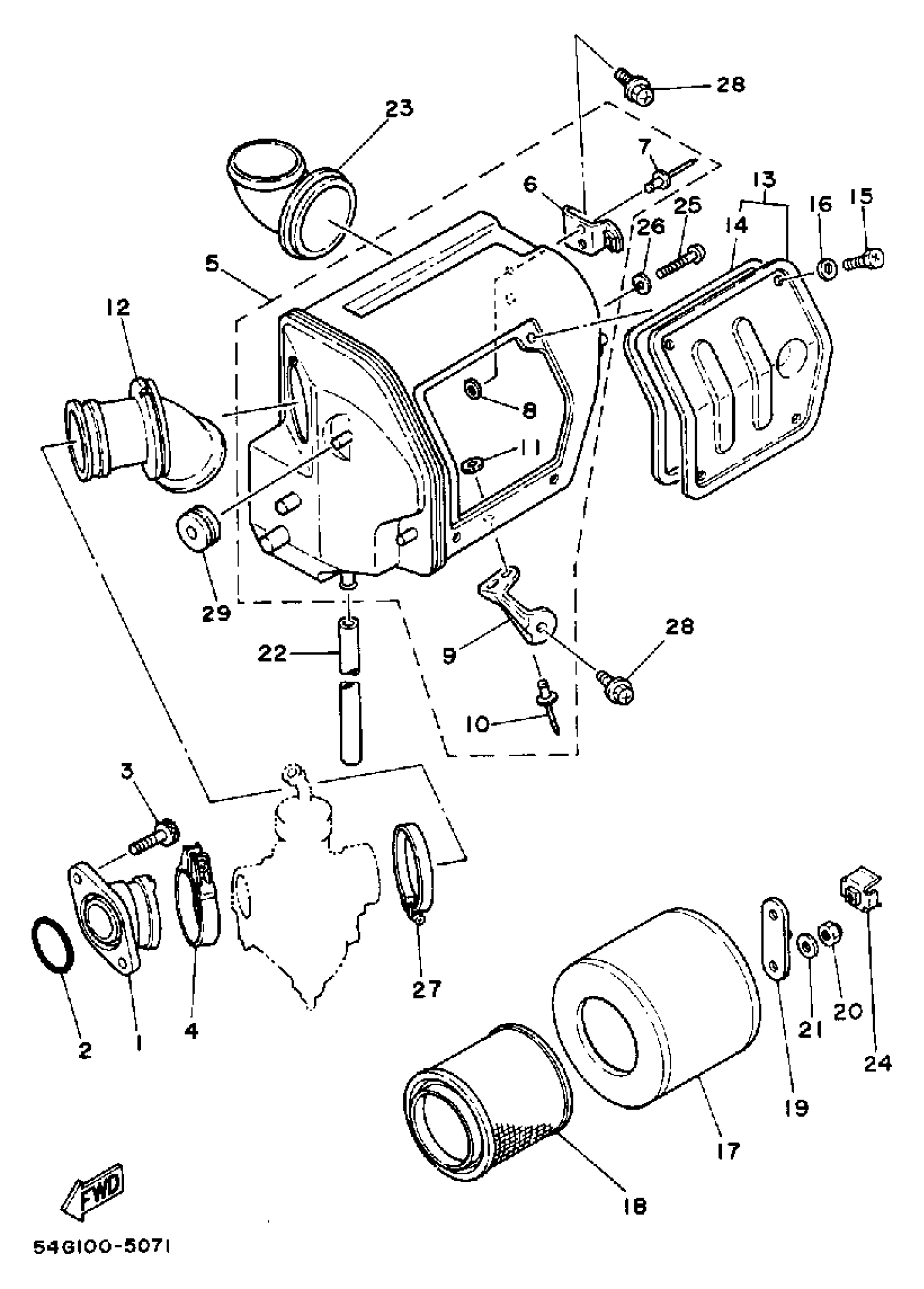

Yamaha BW200S (BIG WHEEL) 1986 AIR CLEANER Diagram

#

Description
Price

1

JOINT, CARB 1

47J-13586-00-00

Unavailable

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

BAND

4TR-13474-02-00

$11.99

5

AIR CLNR CASE ASSEMBLY

54G-14401-01-00

Unavailable

6

STAY 1

(54G-14498-02-00)

Unavailable

7

RIVET, BLIND

90267-40029-00

$8.49

8

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

9

STAY 2

(54G-14499-01-00)

Unavailable

10

RIVET, BLIND

90267-40029-00

$8.49

11

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

12

JOINT, AIR CLEAN 1

54G-14453-00-00

Unavailable

13

CAP ASSY, AIR CLEANER

3Y6-14402-00-00

Unavailable

14

SEAL

50M-14462-01-00

Unavailable

15

SCREW, HEXAGON (3Y8)

90153-05030-00

$7.49

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

ELEMENT, AIR CLEANER

54G-14451-01-00

Unavailable

18

GUIDE

54G-14458-00-00

Unavailable

19

PLATE, ELEMENT FIT

54G-14468-00-00

Unavailable

20

NUT, U

95617-05100-00

Unavailable

21

WASHER, PLAIN (646)

92990-05600-00

Unavailable

22

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable

23

DUCT

54G-14437-00-00

Unavailable

24

PLATE

(54G-14477-00-00)

Unavailable

25

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

HOSE CLAMP ASSY(10F)

90450-45075-00

Unavailable

28

SCREW, HEXAGON 46Y

(90153-06051-00)

Unavailable

29

GROMMET (2H7)

90480-11224-00

Unavailable
