1985 Yamaha BIG Wheel (BW200N) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

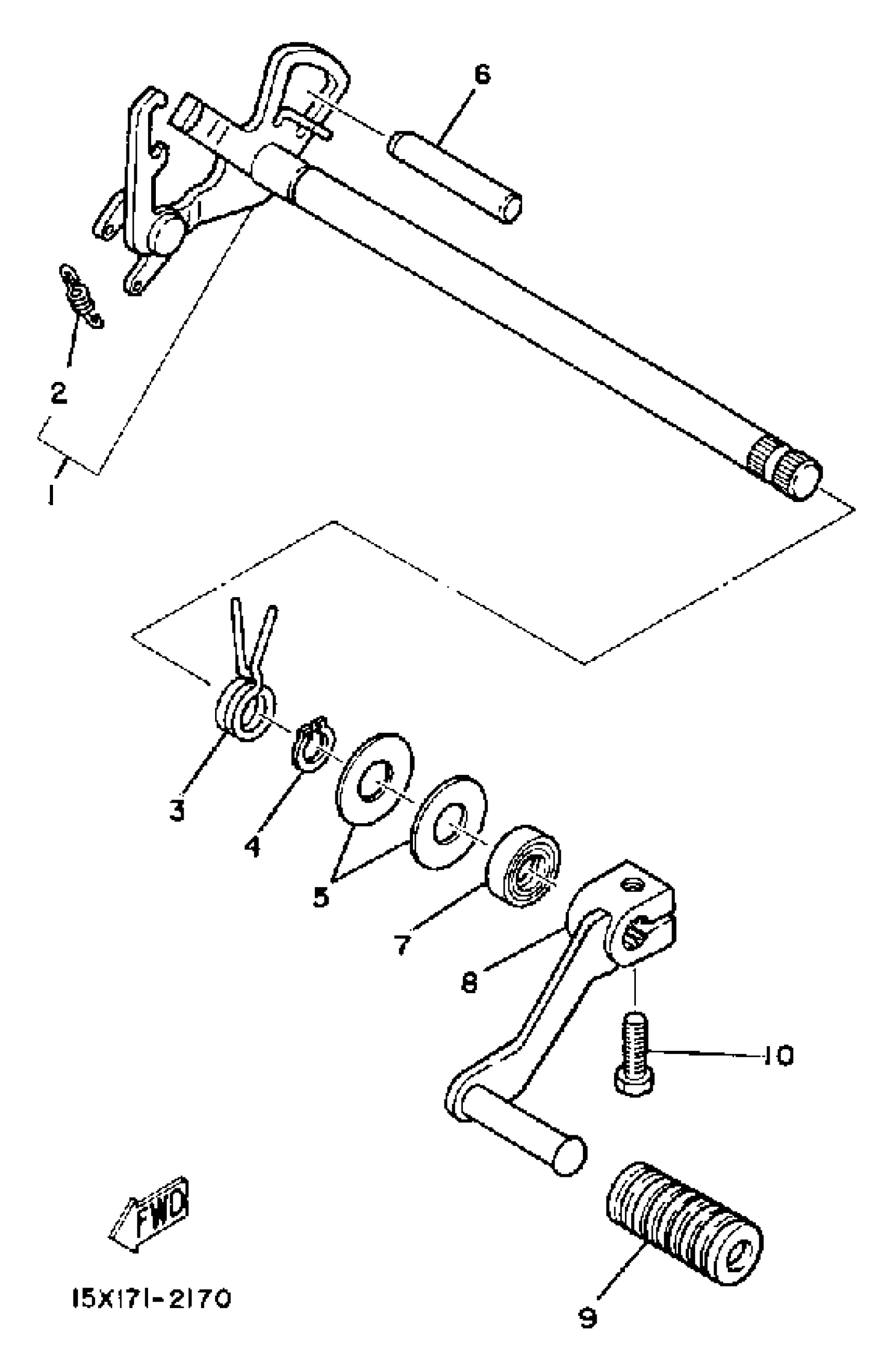

1985 Yamaha BIG Wheel (BW200N) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT LEVER ASSY

5H0-18120-02-00

1

$93.45

In stock

2

SPRING, TENSION (4H7)

90506-08227-00

1

$2.85

In stock

3

SPRING, TORSION (15A)

90508-29540-00

1

$6.20

In stock

4

CIRCLIP

99006-10600-00

1

$6.91

In stock

5

WASHER

90201-12588-00

1

$6.37

In stock

6

PIN, DOWEL (4H7)

93608-50158-00

1

$6.68

In stock

7

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

8

SHIFT PEDAL ASSY

4FU-18110-01-00

1
Out of stock

9

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

10

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
