1985 Yamaha BIG Wheel (BW200N) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

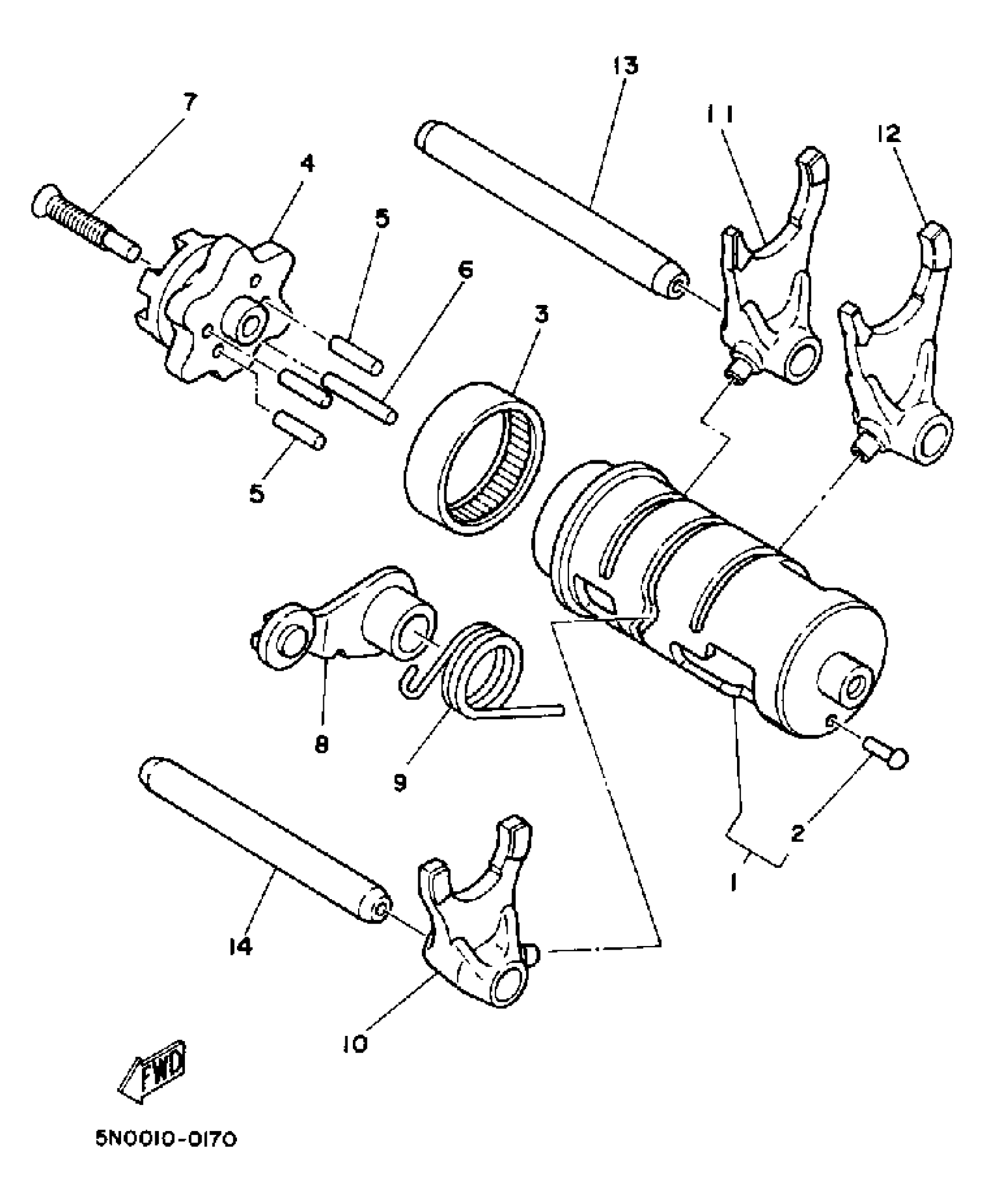

1985 Yamaha BIG Wheel (BW200N) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

5N0-18540-00-00

—

$70.26

In stock

2

POINT,NEUTRAL (150610)

136-18542-00-00

1

$5.31

In stock

3

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

4

SEGMENT

5H0-18185-01-00

1
Out of stock

5

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

6

PIN, DOWEL (4H7)

93604-20156-00

1

$2.22

In stock

7

SCREW, COUNTERSUNK (5H0)

90151-06013-00

1

$6.91

In stock

8

STOPPER LEVER ASSY

4G0-18140-00-00

—
Out of stock

9

SPRING, TORSION (15A)

90508-26539-00

1

$7.45

In stock

10

FORK, SHIFT 1

4JG-18511-00-00

—
Out of stock

11

FORK, SHIFT 2

4JG-18512-01-00

—

$88.92

In stock

12

FORK, SHIFT 3

4JG-18513-00-00

—
Out of stock

13

BAR, SHIFT FORK GUIDE 1

5H0-18531-00-00

1
Out of stock

14

BAR, SHIFT FORK GUIDE 2

4DN-18535-00-00

—

$12.32

In stock
