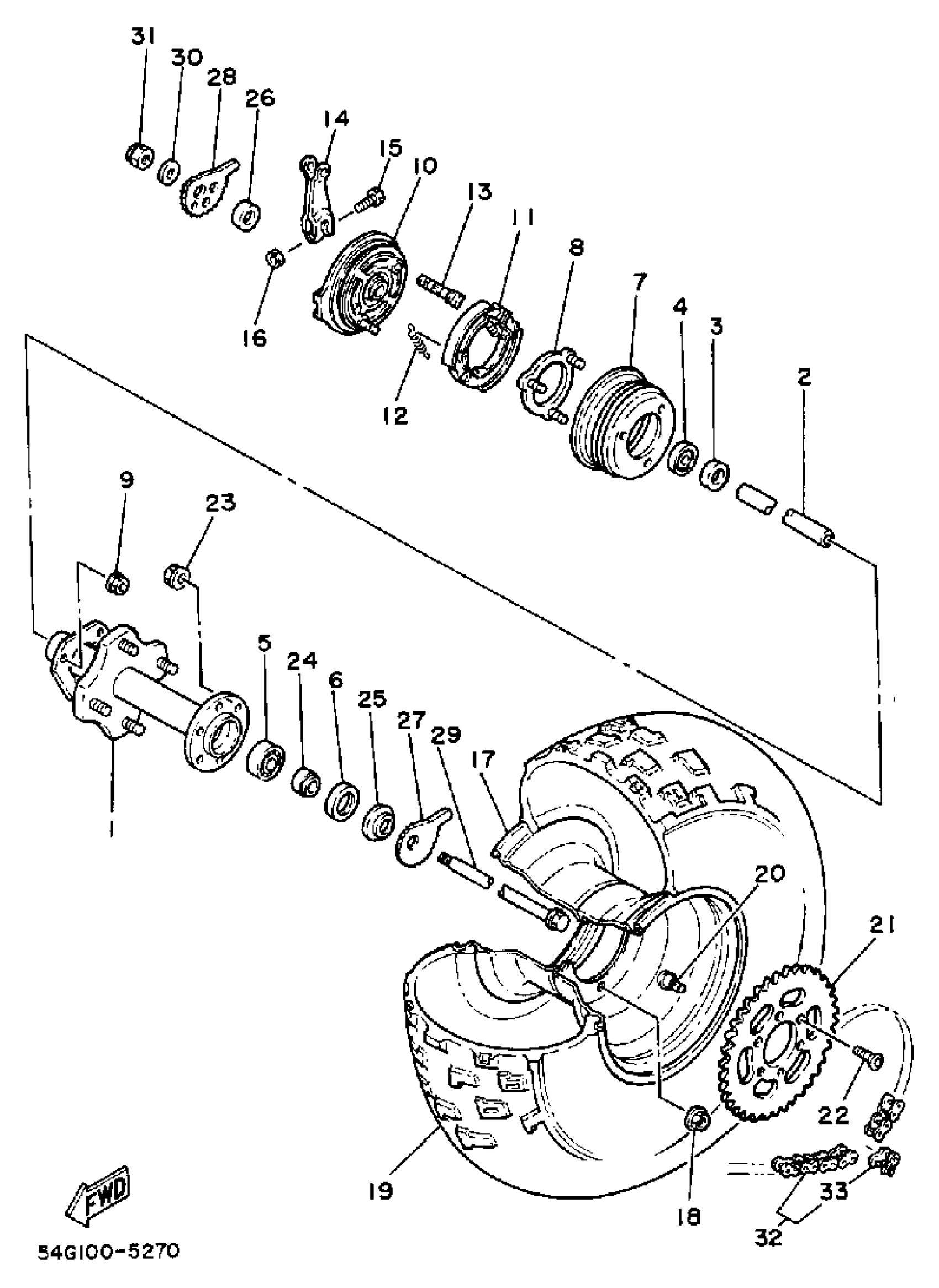

Yamaha BW200N (BIG WHEEL) 1985 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

54G-25311-00-91

Unavailable

2

COLLAR 54G

90387-173L2-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

BEARING(4HM)

93306-30317-00

$39.99

6

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

7

DRUM, BRAKE

5V7-2511E-00-35

Unavailable

8

RING 1

54G-25185-00-00

Unavailable

9

NUT (22U)

90179-08410-00

$9.49

10

PLATE, BRAKE SHOE

54G-25321-00-98

Unavailable

11

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

12

SPRING, TENSION

90506-15260-00

$8.49

13

CAMSHAFT

4GL-25351-00-00

$68.99

14

LEVER, CAM SHAFT

2N3-25155-00-00

$28.99

15

BOLT, HEXAGON (538)

90101-06278-00

$2.17

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

WHEEL,REAR

2HT-25390-00-35

Unavailable

18

NUT (22U)

90179-08410-00

$9.49

19

DUN 23X11-9 KT647M (2.30, 12.00-9 KT647T/1)

94111-091R5-00

Unavailable

20

VALVE, RIM(2GH)

93900-00030-00

Unavailable

21

SPROCKET, DRIVEN (37T)

54G-25437-11-00

Unavailable

22

BOLT 54G

90109-083A7-00

Unavailable

23

NUT (22U)

90179-08410-00

$9.49

24

COLLAR 54G

90387-172L9-00

Unavailable

25

COVER, HUB DUST

341-25118-00-00

Unavailable

26

COLLAR

90387-175A9-00

Unavailable

27

PULLER, CHAIN 1

1M1-25388-01-00

Unavailable

28

PULLER, CHAIN 2

54G-25389-00-00

Unavailable

29

AXLE,WHEEL

54G-25381-01-00

Unavailable

30

WASHER, PLATE (5X6)

90201-160F6-00

Unavailable

31

NUT, SELF-LOCKING

90185-16103-00

Unavailable

32

CHAIN 520DS-74L

94585-20074-00

Unavailable

33

JOINT, CHAIN

94681-68001-00

Unavailable
