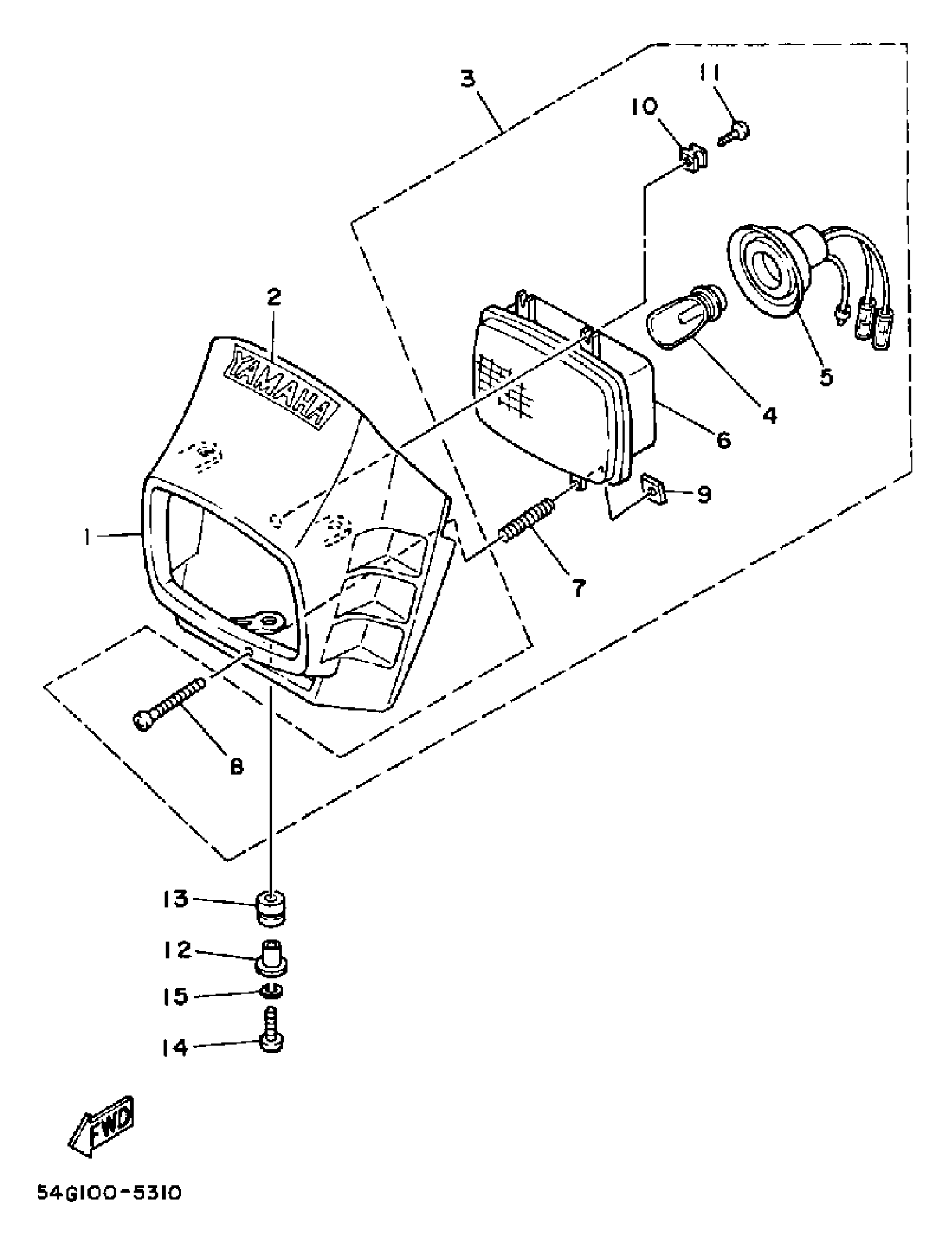

Yamaha BW200N (BIG WHEEL) 1985 HEADLIGHT Diagram

#

Description
Price

1

BODY, HEADLIGHT

54G-84311-00-00

Unavailable

2

EMBLEM,YAMAHA(3BB)

99242-00020-00

Unavailable

3

HEADLIGHT UNIT ASSEMBLY

(54G-84310-00-00)

Unavailable

4

BULB,H.L.12V45/45W

21V-84314-00-XX

Unavailable

5

. SOCKET

54G-84312-00-00

Unavailable

6

. LENS ASSEMBLY

21V-84320-00-00

Unavailable

7

SPRING,SCREW

3AA-84332-00-00

Unavailable

8

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

9

. NUT, ADJUSTING

21V-84334-00-00

Unavailable

10

. NUT, BODY FITTING

21V-84316-00-00

Unavailable

11

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

12

COLLAR

90387-06166-00

$12.49

13

GROMMET

90480-14412-00

Unavailable

14

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable
