Description

Price

1

SWITCH, HANDLE 1

1R6-83976-01-00

$66.99

2

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

3

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

Unavailable

4

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

5

LEVER 1

23X-83912-02-00

$27.99

6

WASHER, PLATE 1562722600

90201-08083-00

$9.49

7

BOLT(3GB)

90109-061F3-00

$7.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

BOLT, HEXAGON

97013-06022-00

$0.90

10

WASHER, SPRING

92995-06100-00

Unavailable

11

HOLDER, LEVER 2

516-82921-30-00

Unavailable

12

LEVER R

23X-83922-01-00

$27.99

13

WASHER, PLATE 1562722600

90201-08083-00

$9.49

14

BOLT(3GB)

90109-061F3-00

$7.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

BOLT, HEXAGON

97013-06022-00

$0.90

17

WASHER, SPRING

92995-06100-00

Unavailable

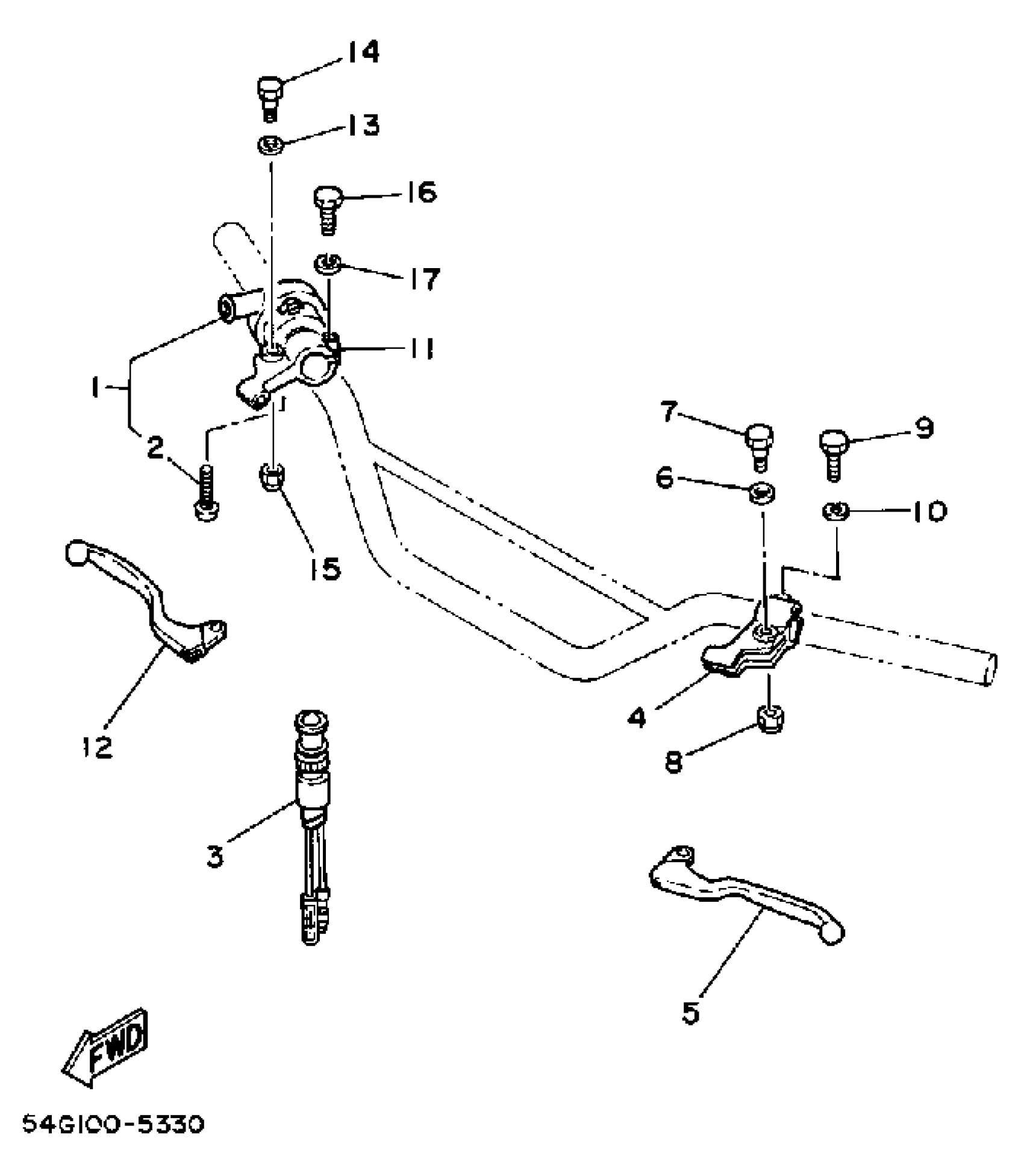

Yamaha BW200N (BIG WHEEL) 1985 HANDLE SWITCH - LEVER Diagram

SWITCH, HANDLE 1

SCREW, PAN HEAD(41N)

LIGHT SWITCH ASSEMBLY

HOLDER, LEVER (L.H)

LEVER 1

WASHER, PLATE 1562722600

BOLT(3GB)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING

HOLDER, LEVER 2

LEVER R

WASHER, PLATE 1562722600

BOLT(3GB)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING
