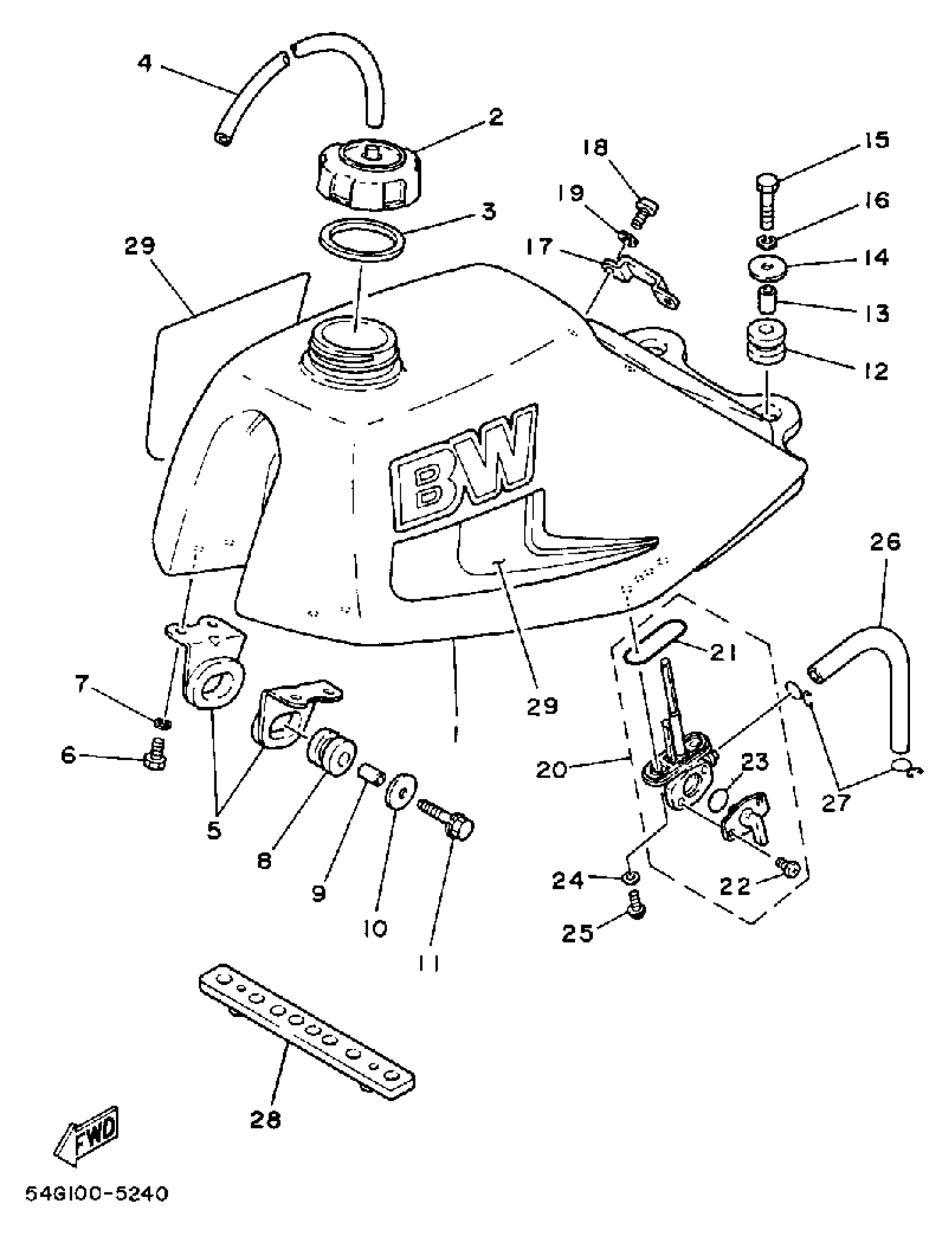

Yamaha BW200N (BIG WHEEL) 1985 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK N.A. KIT

99999-01661-KT

Unavailable

2

BODY, CAP

5X7-24611-01-00

Unavailable

3

PACKING, CAP

5X7-24612-00-00

Unavailable

4

HOSE (L545)

90445-09361-00

Unavailable

5

STAY, FUEL TANK 1

(54G-24157-00-00)

Unavailable

6

BOLT (661)

97013-06012-00

$5.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

GROMMET (4V1)

90480-18290-00

$8.49

9

COLLAR (1T2)

90387-07598-00

$5.60

10

WASHER PLATE 137241870000

90201-06072-00

$9.49

11

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

12

GROMMET (4V1)

90480-18290-00

$8.49

13

COLLAR (1T2)

90387-07598-00

$5.60

14

WASHER PLATE 137241870000

90201-06072-00

$9.49

15

BOLT, HEXAGON

97017-06030-00

$3.61

16

WASHER, SPRING

92995-06100-00

Unavailable

17

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

FUEL COCK ASSY 1

36R-24500-01-00

Unavailable

21

GASKET, BODY

214-24512-00-00

Unavailable

22

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

23

O-RING

1A0-24512-00-00

Unavailable

24

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

25

SCREW 256241430000

90149-06011-00

Unavailable

26

HOSE (L200)

90445-10752-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable

28

DAMPER, LOCATING 1

26A-24181-00-00

Unavailable

29

GRAPHIC SET

(54G-24250-01-00)

Unavailable
