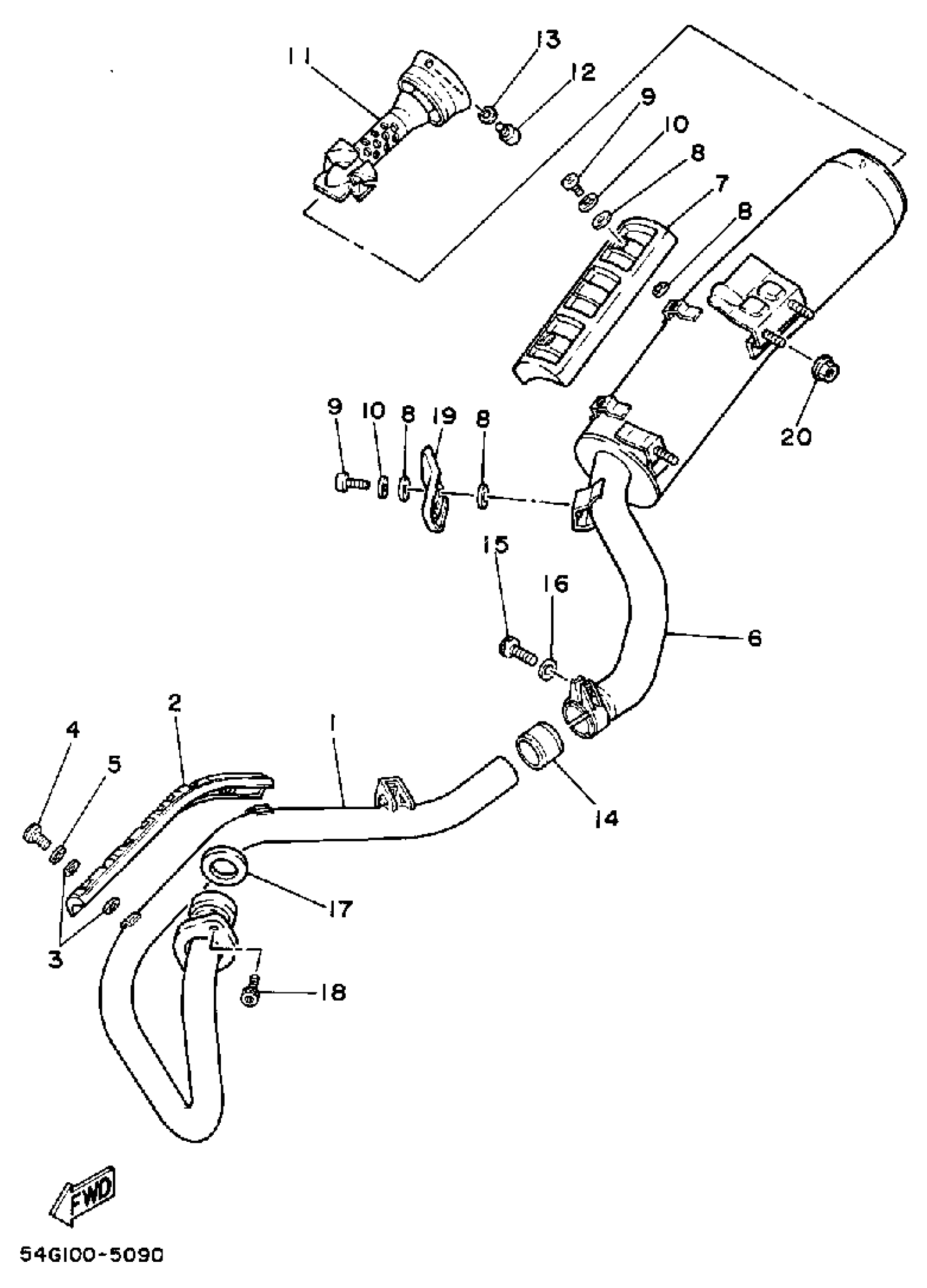

Yamaha BW200N (BIG WHEEL) 1985 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST 1
54G-14611-00-00
Unavailable
2
PROTECTOR, EXHAUST PIPE
54G-14628-01-00
Unavailable
6
MUFFLER 1
54G-14711-02-00
Unavailable
7
PROTECTOR, MUFFLER
54G-14728-00-00
Unavailable
11
PIPE, OUTLET
42U-14752-00-00
Unavailable
12
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
16
WASHER(6TA)
92907-08600-00
Unavailable
17
GASKET, EXHAUST PIPE
4BE-14613-00-00
Unavailable
18
BOLT,SOCKET
91317-06020-00
Unavailable
19
PROTECTOR,MUFFLER
54G-14718-01-00
Unavailable
20
NUT, FLANGE
95704-08500-00
Unavailable
