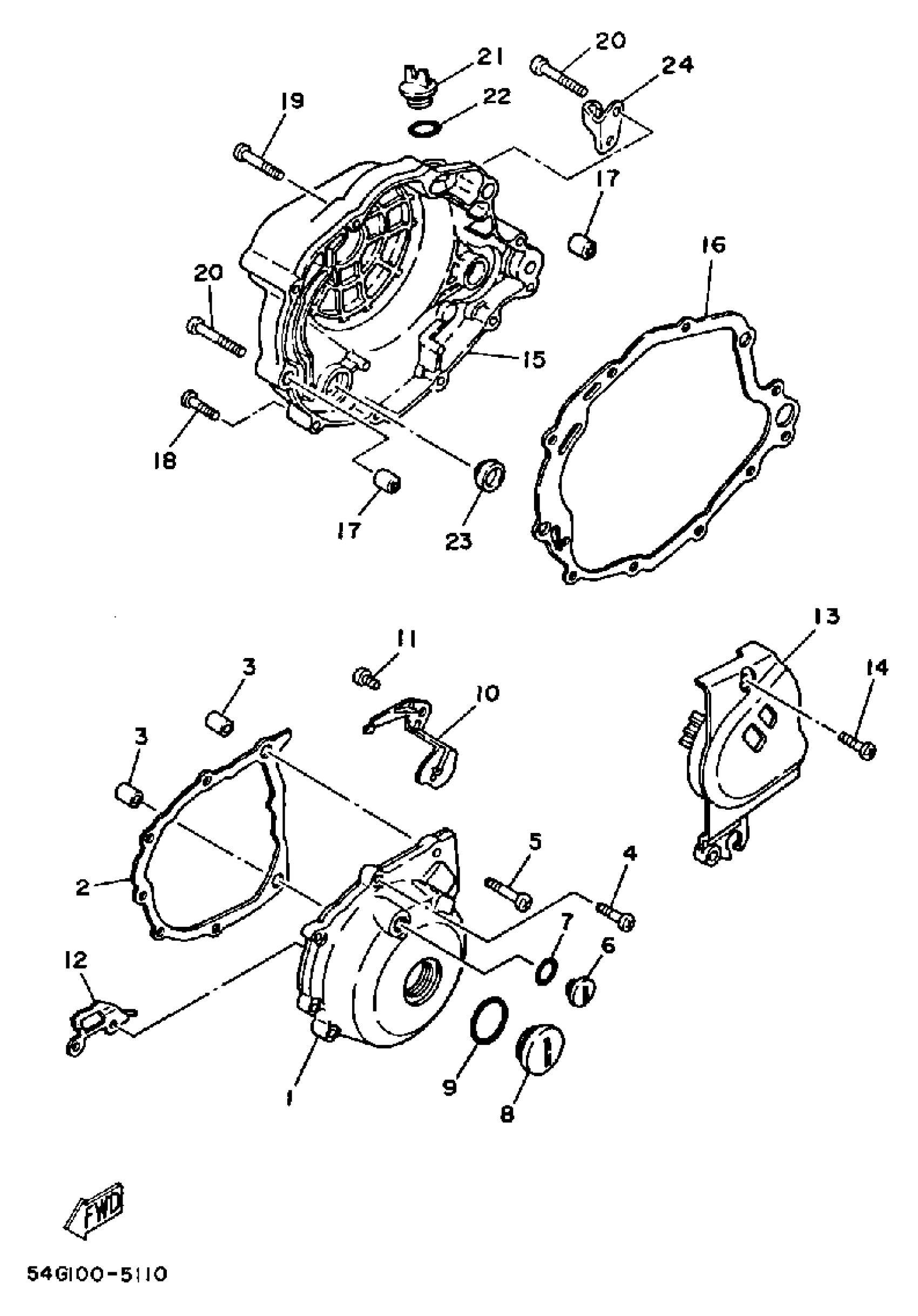

Yamaha BW200N (BIG WHEEL) 1985 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

15A-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

15A-15451-02-00

$14.49

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

5

SCREW, PAN

98507-06035-00

$8.49

6

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

7

O-RING (2H9)

93210-14369-00

$7.49

8

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

9

O-RING (341)

93210-32172-00

$7.49

10

CLAMP (15A)

90465-08188-00

$4.56

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

CLAMP

90462-16096-00

Unavailable

13

CRCS COVER ASSEMBLY RASSEMBLY 2

15A-15420-01-00

Unavailable

14

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

15

COVER, CRANKCASE 3

47J-15431-01-00

Unavailable

16

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

Unavailable

17

PIN, DOWEL

99530-12016-00

$4.89

18

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

19

SCREW, PAN

98507-06035-00

$8.49

20

SCREW, PAN

98507-06045-00

Unavailable

21

PLUG, OIL

3Y1-15363-10-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

24

HOLDER

54G-15378-00-00

Unavailable
