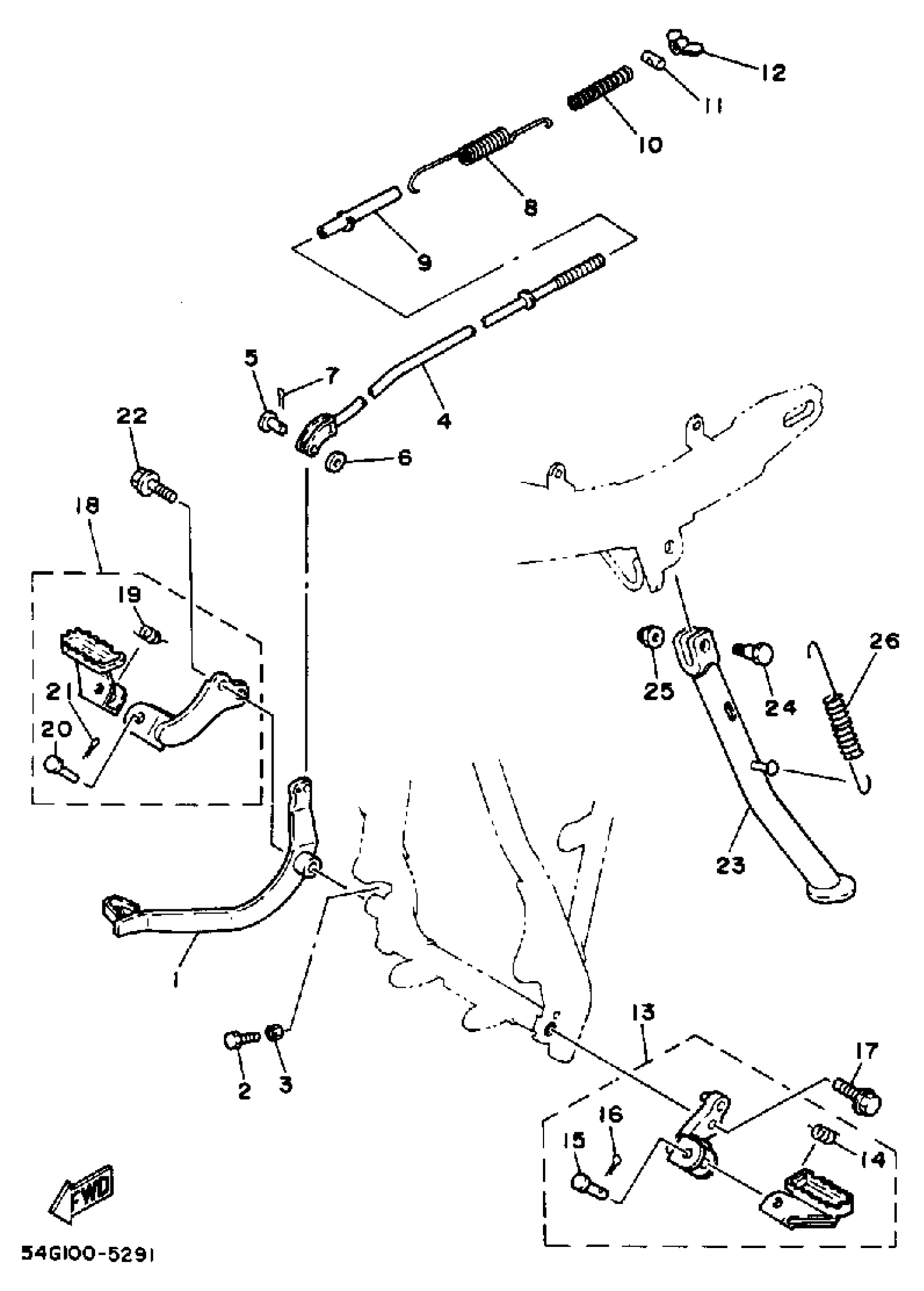

Yamaha BW200EU (BIG WHEEL ELEC START) 1988 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

2JX-27211-00-90

$64.99

2

BOLT, HEXAGON

97017-06020-00

$4.06

3

NUT(650)

95380-06700-00

$8.49

4

ROD, BRAKE

54G-27231-00-00

Unavailable

5

PIN, CLEVIS (24X)

90240-06103-00

$7.49

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

PIN, COTTER

91490-20025-00

$1.99

8

SPRING, TENSION

90506-18289-00

$14.99

9

COVER, SPRING

1M1-27244-00-00

$6.99

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

PIN 1562723700

90249-12008-00

$8.49

12

NUT (25K)

90179-06411-00

$8.49

13

FRT FOOTREST ASSEMBLY LASSEMBLY (L)

15A-27410-00-90

Unavailable

14

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

15

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

16

PIN, COTTER

91490-25020-00

Unavailable

17

BOLT,FLANGE

95817-12025-00

Unavailable

18

FRONT FOOTREST ASSY (RIGHT)

15A-27420-02-90

Unavailable

19

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

20

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

21

PIN, COTTER

91490-25020-00

Unavailable

22

BOLT,HEXAGON (447)

90105-10058-00

Unavailable

23

STAND, SIDE

54G-27311-01-33

Unavailable

24

BOLT

90109-10473-00

Unavailable

25

NUT, U

90185-10037-00

Unavailable

26

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
