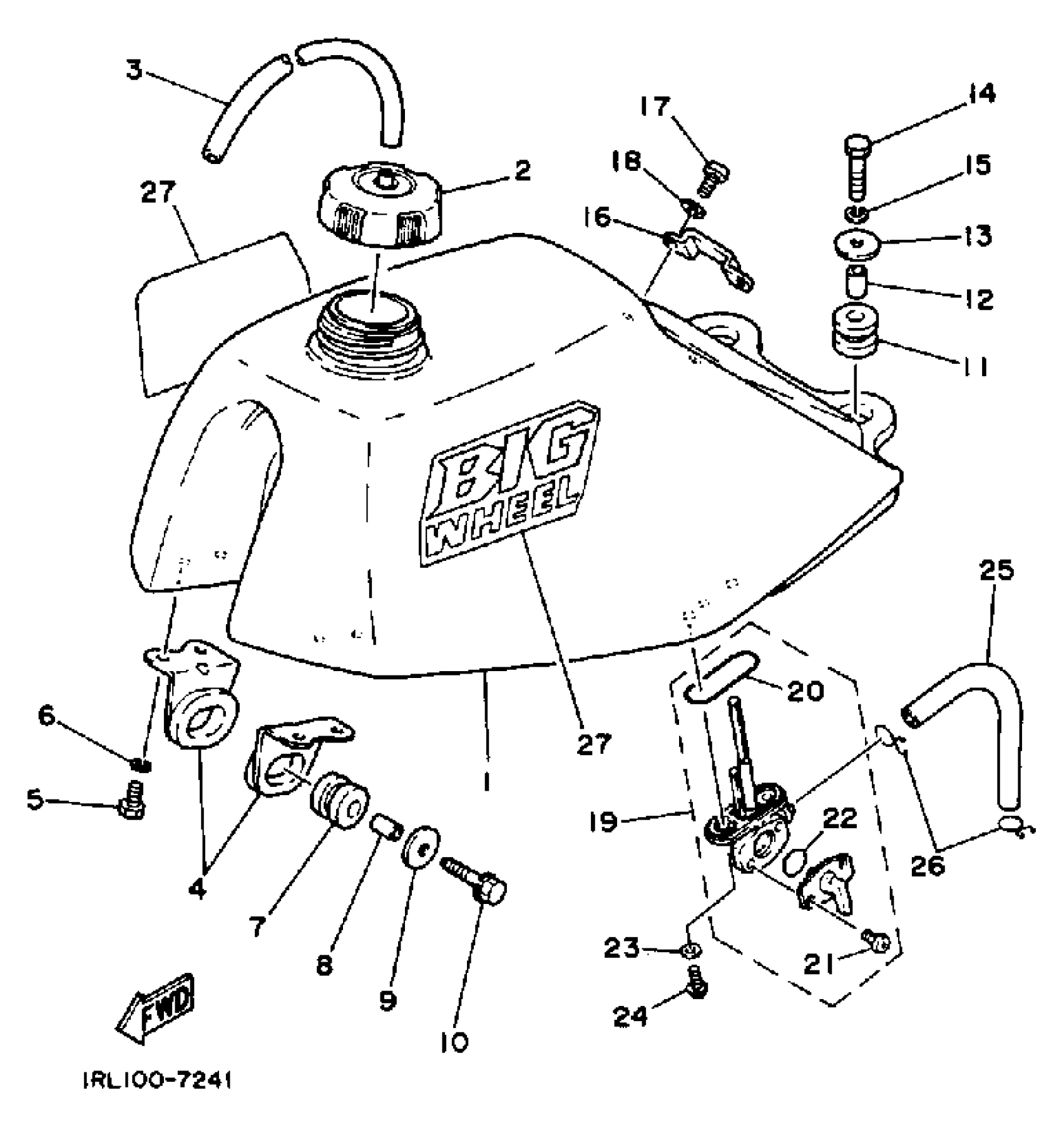

Yamaha BW200EU (BIG WHEEL ELEC START) 1988 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

54G-24110-01-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L545)

90445-09361-00

Unavailable

4

STAY, FUEL TANK 1

(54G-24157-00-00)

Unavailable

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, SPRING

92995-06100-00

Unavailable

7

GROMMET (4V1)

90480-18290-00

$8.49

8

COLLAR (1T2)

90387-07598-00

$5.60

9

WASHER PLATE 137241870000

90201-06072-00

$9.49

10

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

11

GROMMET (4V1)

90480-18290-00

$8.49

12

COLLAR (1T2)

90387-07598-00

$5.60

13

WASHER PLATE 137241870000

90201-06072-00

$9.49

14

BOLT, HEXAGON

97017-06030-00

$3.61

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

FUEL COCK ASSY 1

36R-24500-01-00

Unavailable

20

GASKET, BODY

214-24512-00-00

Unavailable

21

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

22

O-RING

1A0-24512-00-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable

25

HOSE (L200)

90445-10752-00

Unavailable

26

CLIP

90467-090A2-00

Unavailable

27

GRAPHIC, FUEL TNK 7

2JN-24254-10-00

Unavailable
