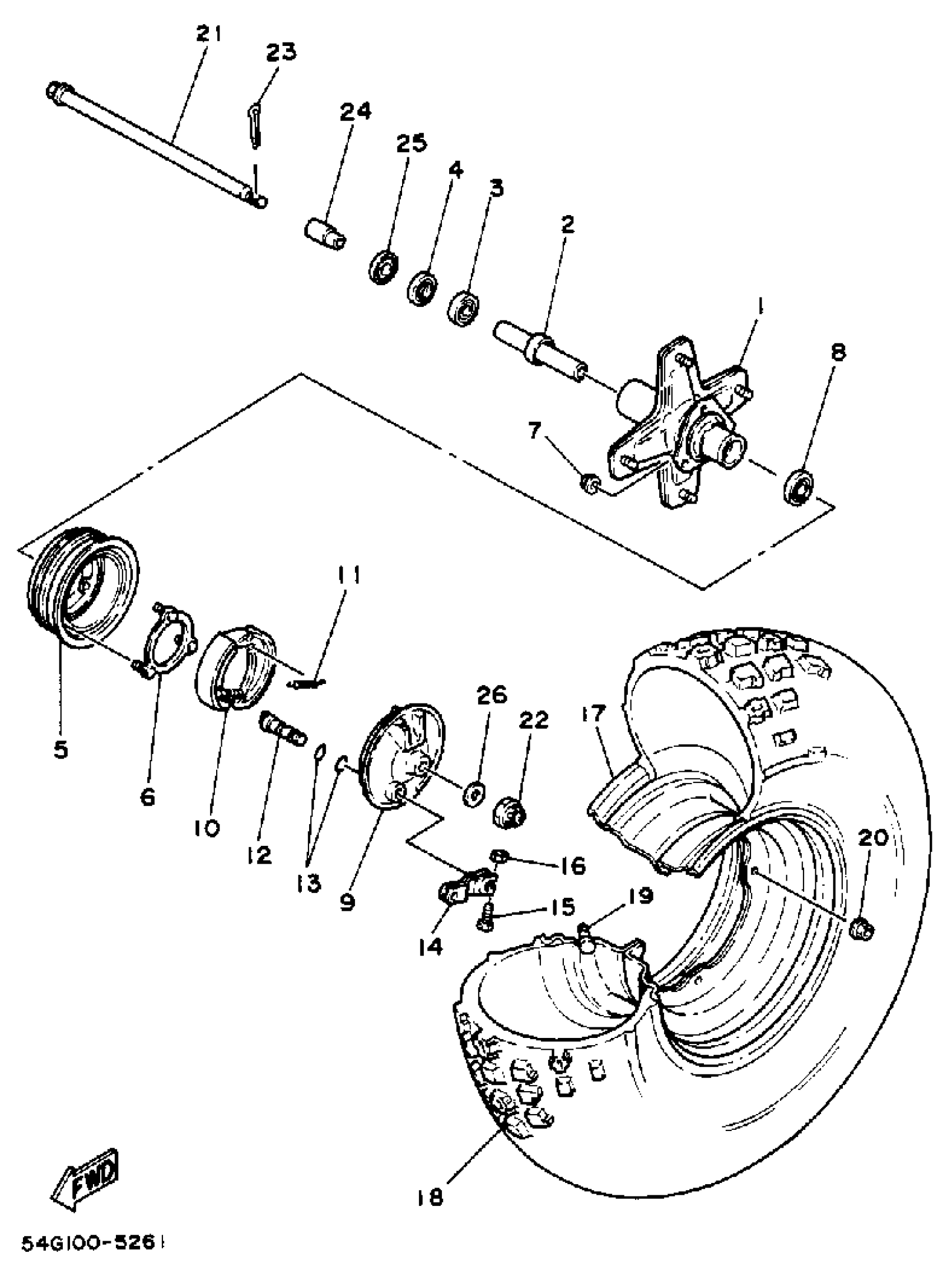

Yamaha BW200EU (BIG WHEEL ELEC START) 1988 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

54G-25111-00-91

Unavailable

2

SPACER, BEARING

29U-25117-00-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

OIL SEAL (5V6)

93102-23252-00

$14.99

5

DRUM, BRAKE

5V7-2511E-00-35

Unavailable

6

RING 1

54G-25185-00-00

Unavailable

7

NUT (22U)

90179-08410-00

$9.49

8

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

9

PLATE, BRAKE SHOE

5V7-25121-00-35

Unavailable

10

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

11

SPRING, TENSION

90506-15260-00

$8.49

12

CAMSHAFT

4GL-25351-00-00

$68.99

13

O-RING (26H)

93210-14579-00

$7.49

14

LEVER, CAMSHAFT 1

21V-25155-00-00

Unavailable

15

BOLT, HEXAGON (538)

90101-06278-00

$2.17

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

WHEEL, FRONT

38W-25180-11-35

Unavailable

18

DUN 25X8-12 KT646M

94108-121R4-00

Unavailable

19

VALVE, RIM(2GH)

93900-00030-00

Unavailable

20

NUT (22U)

90179-08410-00

$9.49

21

AXLE, WHEEL

54G-25181-01-00

Unavailable

22

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable

24

COLLAR 54G

90387-172L6-00

Unavailable

25

COVER, HUB DUST

5V6-25118-00-00

Unavailable

26

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable
