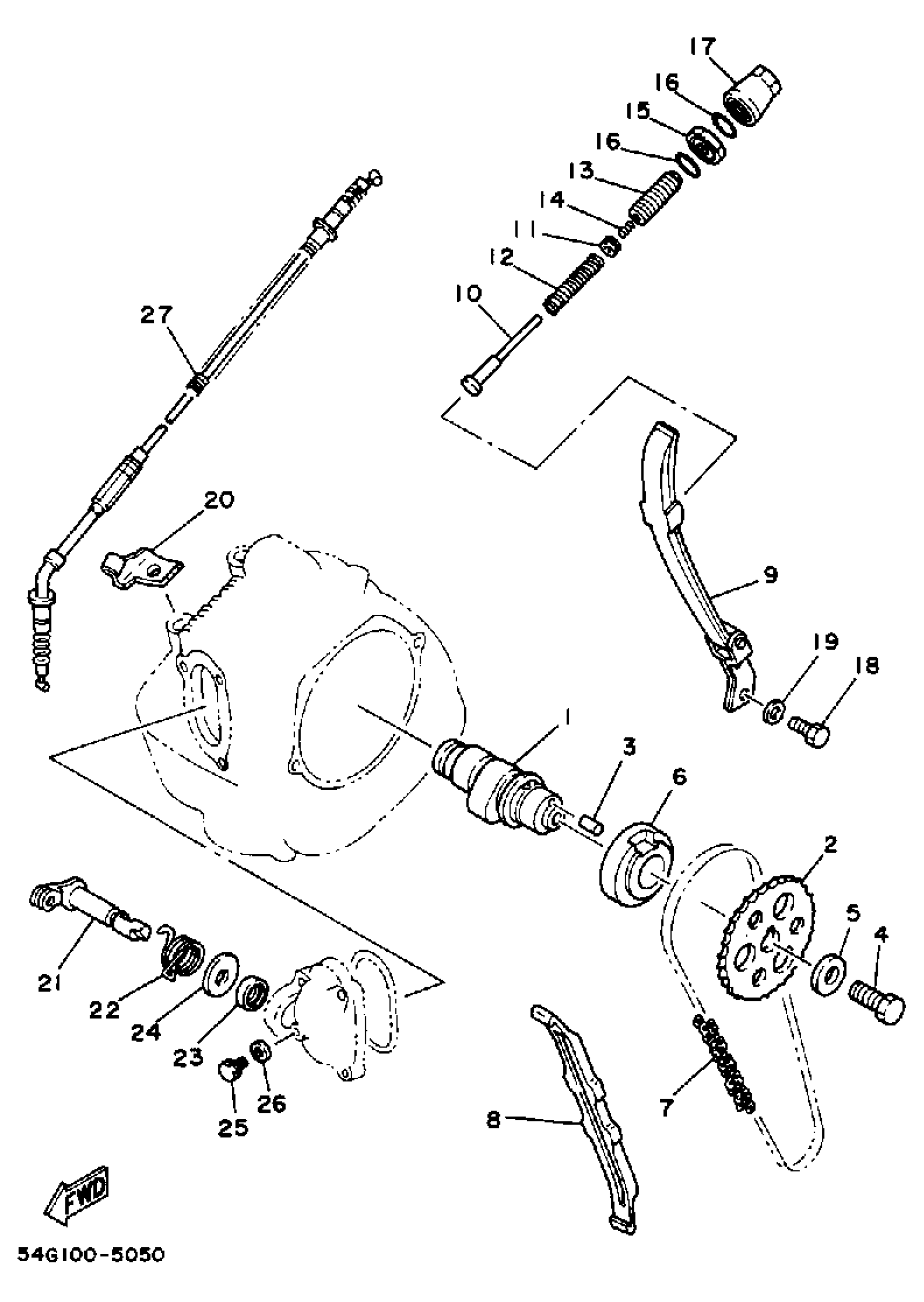

Yamaha BW200EU (BIG WHEEL ELEC START) 1988 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

36X-12171-01-00

$153.99

2

SPROCKET, CAM CHAIN

5H0-12176-00-00

$27.99

3

PIN,DOWEL (603)

93604-10011-00

$8.49

4

BOLT (583)

90101-10303-00

$9.49

5

WASHER, PLATE (3L6)

90201-10774-00

$9.49

6

COLLAR (15A)

90387-255F3-00

$45.99

7

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$81.99

8

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

9

GUIDE, STOPPER 2

5N0-12241-01-00

$57.99

10

ROD, CHAIN TENSIONER

25A-12217-00-00

Unavailable

11

DAMPER

3Y1-12232-00-00

Unavailable

12

SPRING, COMPRESSION (3Y1)

90501-10587-00

$7.49

13

SCREW

90149-14182-00

Unavailable

14

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

15

NUT (3Y1)

90179-14298-00

Unavailable

16

O-RING (26H)

93210-16629-00

Unavailable

17

CASE, CHAIN TENSIONER

3Y1-12212-00-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

BRACKET, DECOMPRESSION

36X-12283-01-00

Unavailable

21

CAM, DECOMPRESSION

36X-12288-02-00

Unavailable

22

SPRING, TORSION (3Y1)

90508-16428-00

Unavailable

23

SEAL, OIL (30X)

93102-12321-00

Unavailable

24

WASHER

90201-12588-00

Unavailable

25

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

26

GASKET 256113960000

90430-06014-00

Unavailable

27

CABLE, DECOMPRESSION

36X-12292-00-00

Unavailable
