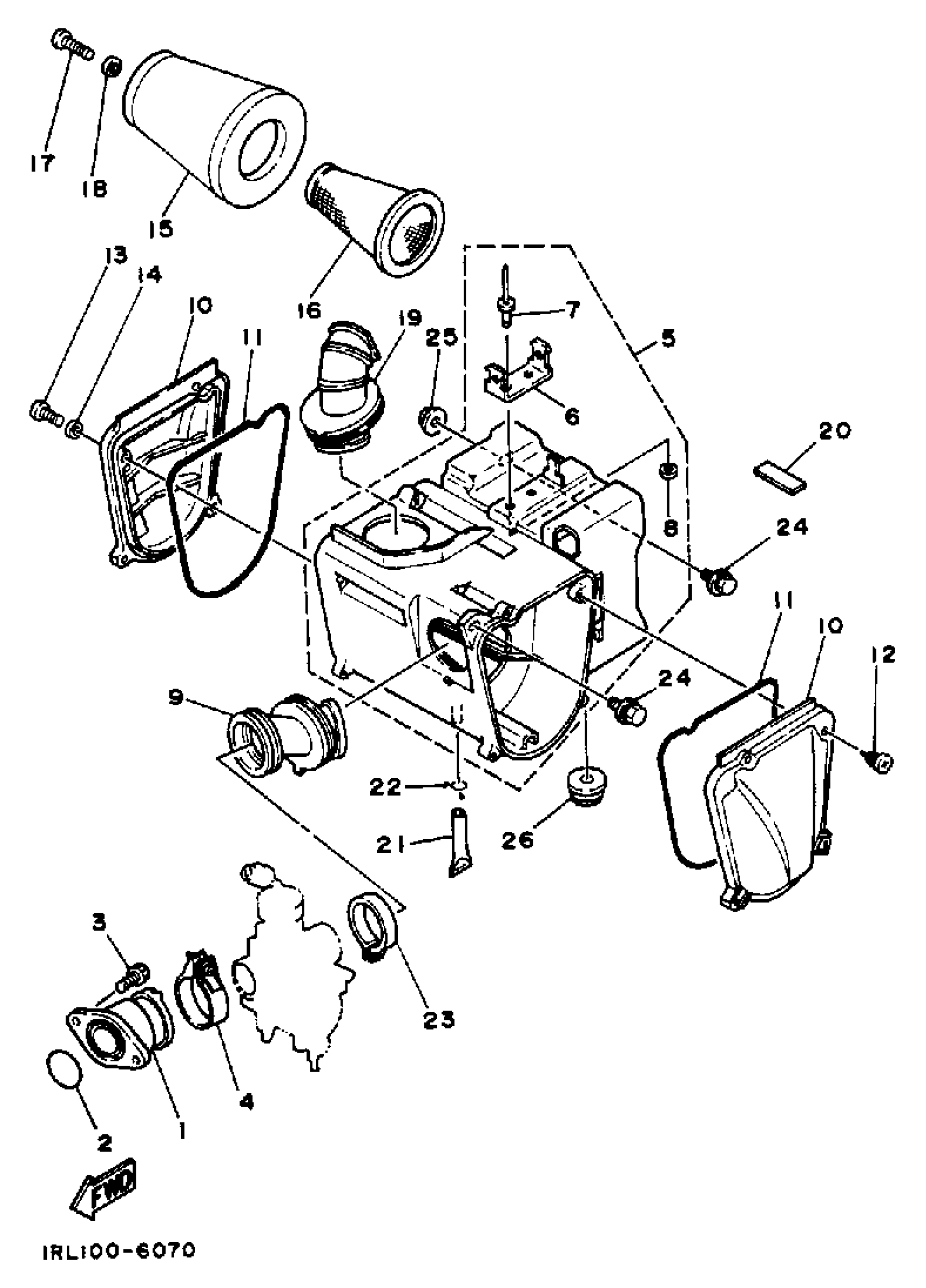

Yamaha BW200EU (BIG WHEEL ELEC START) 1988 AIR FILTER Diagram

JOINT, CARB 1

47J-13586-00-00

Unavailable

O-RING (16G)

93210-35537-00

$14.49

BOLT,SOCKET

91317-06020-00

Unavailable

BAND

4TR-13474-02-00

$11.99

AIR CLNR CASE ASSEMBLYASSY

1RL-14401-00-00

Unavailable

STAY 1

(1RL-14493-00-00)

Unavailable

RIVET,BLIND

90267-40080-00

Unavailable

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

JOINT, AIR CLNR 1

1RL-14453-00-00

Unavailable

CAP, CLEANER CASE 1

1RL-14412-00-00

Unavailable

SEAL

51Y-14462-00-00

$18.49

SCREW, TAPPING

(97701-50520-00)

Unavailable

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

WASHER, PLAIN (646)

92990-05600-00

$0.80

ELEMENT, AIR CLEANER

1RL-14451-01-00

$21.99

GUIDE, ELEMENT

1RL-14458-00-00

Unavailable

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

DUCT

1RL-14437-00-00

Unavailable

SEAL

36X-14462-00-00

Unavailable

PIPE, DRAIN

34X-1443E-00-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

HOSE CLAMP ASSY(10F)

90450-45075-00

Unavailable

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

GROMMET (509)

90480-18171-00

Unavailable
