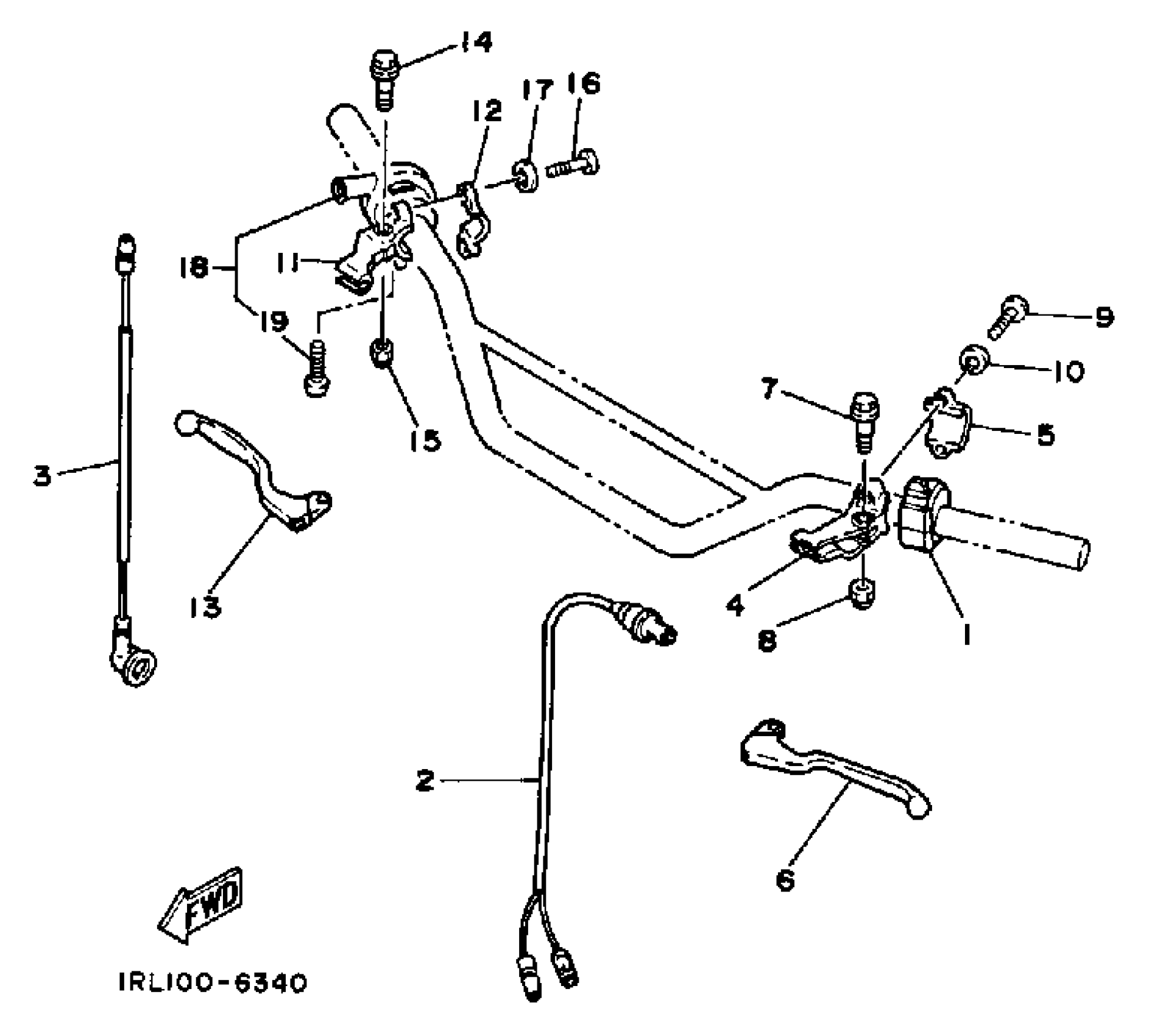

Yamaha BW200ET (BIG WHEEL ELEC START) 1987 HANDLE SWITCH LEVER Diagram

SWITCH, HANDLE 3

1RL-83973-09-00

Unavailable

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$59.81

WIRE, LEAD

2JX-82541-00-00

Unavailable

HOLDER SET, LEVER 1

99999-03034-00

$84.76

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

LEVER 1

23X-83912-02-00

$20.45

BOLT(1FG)

90109-06798-00

$5.97

NUT, SELF-LOCKING

95617-06100-00

$2.29

SCREW, PAN HEAD

98517-05020-00

$1.49

WASHER(3SX)

92907-05100-00

$5.88

H0LDER, LEVER 2

38V-82921-00-00

$35.84

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

LEVER R

23X-83922-01-00

$20.72

BOLT(1FG)

90109-06798-00

$5.97

NUT, SELF-LOCKING

95617-06100-00

$2.29

SCREW, PAN HEAD

98517-05020-00

$1.49

WASHER(3SX)

92907-05100-00

$5.88

CBLE CONCT CAP ASSEMBLYCAP ASSEMBLY

1RL-26270-00-00

Unavailable

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable
