Description

Price

1

SEAT DUAL

53001-034

Unavailable

1

SEAT ASSY DUAL

53001-050

$135.81

2

HOOK

53008-004

$5.26

3

HINGE

53009-007

$3.68

4

SPRING,HOOK

53012-013

Unavailable

5

DAMPER,DUAL SEAT

92075-023

$4.92

6

PIN DUAL SEAT PIVOT

53011-001

$5.59

7

PIN COTTER 2.0X15

550D2015

$1.04

8

WASHER PLAIN 6MM

411B0600

$2.84

9

WASHER SPRING 6MM

461F0600

$0.69

10

BOLT-UPSET 6X14

112B0614

Unavailable

11

BAND

92072-012

$7.34

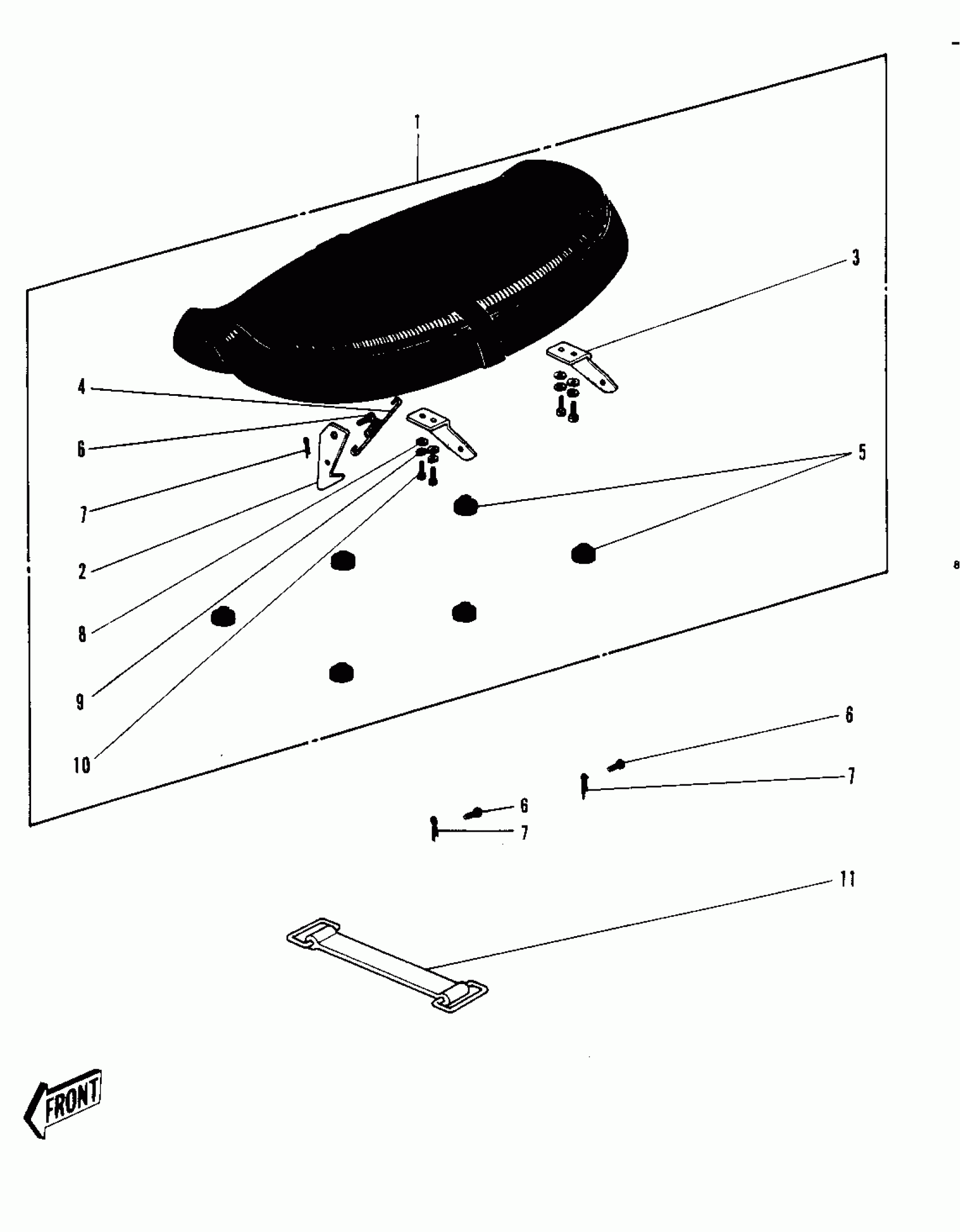

Kawasaki Bushwhacker SEAT Diagram

SEAT DUAL

SEAT ASSY DUAL

HOOK

HINGE

SPRING,HOOK

DAMPER,DUAL SEAT

PIN DUAL SEAT PIVOT

PIN COTTER 2.0X15

WASHER PLAIN 6MM

WASHER SPRING 6MM

BOLT-UPSET 6X14

BAND
