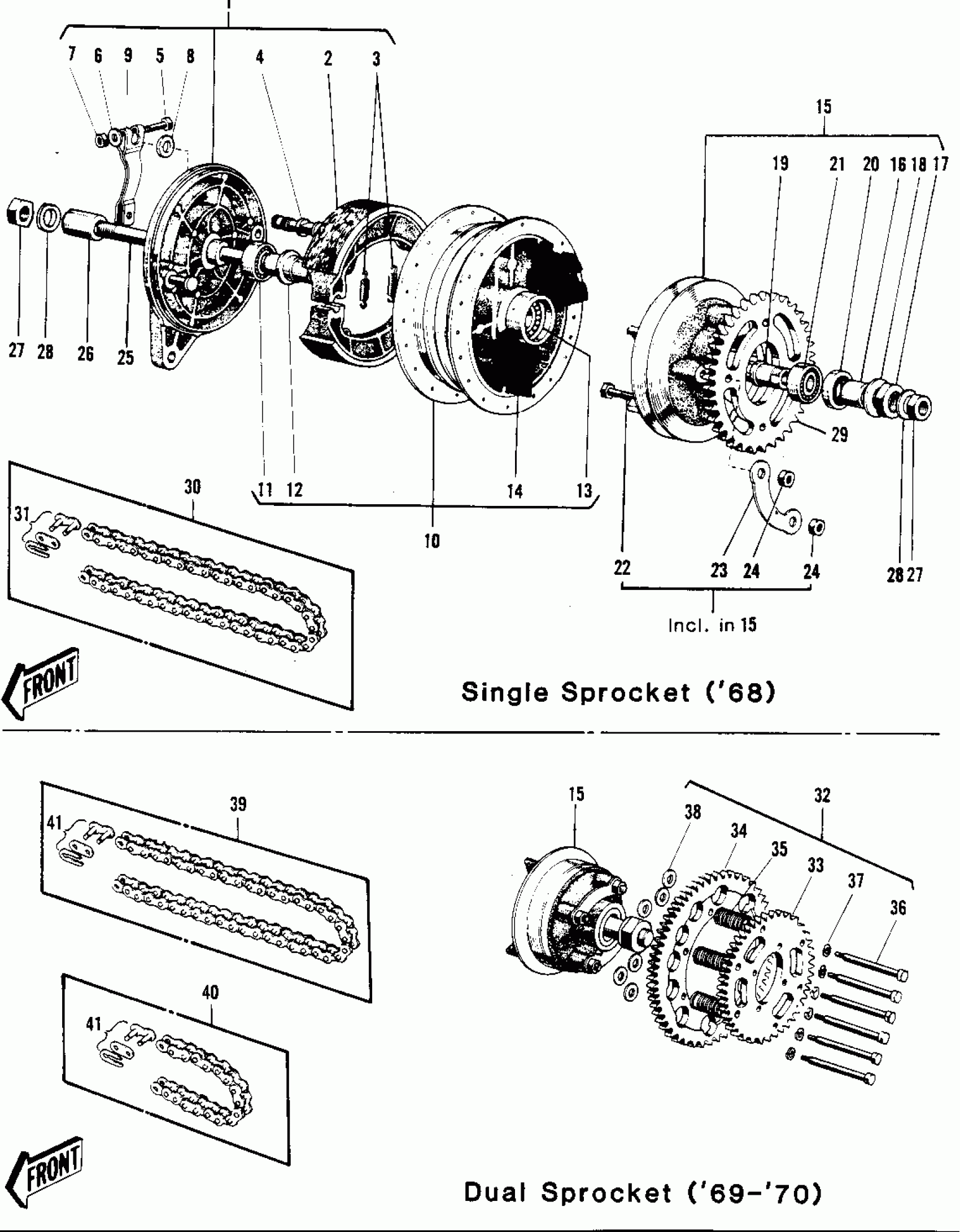

Kawasaki Bushwhacker REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

PANEL-ASY,RR BRK

42006-080-80

$133.10

2

SHOE,BRAKE

42019-011

$37.39

2

SHOE,BRAKE

42019-011

$37.39

3

SPRING,BRAKE SHOE

42020-004

$8.51

4

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

4

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

5

BOLT 6X35

110R0635

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

7

NUT 6MM

311B0600

$0.93

8

SEAL,BRAKE CAM

41051-001

$4.26

9

.LEVER REAR BRAKE CAM

42029-003

$22.02

10

DRUM ASSY REAR BRAKE

42005-018

$144.92

11

BEARING BALL #6202Z

601B6202Z

Unavailable

12

.SPACER RR HUB BEARING

42010-004

$4.28

13

BEARING-BALL,#6202C3

601B6202

$8.64

14

DAMPER REAR HUB SHOCK

42014-004

$22.65

15

COUPLING ASSY RR HUB

42008-009

$101.96

16

.BUSH RR DRUM OIL SEAL

42037-002

$5.13

17

.NUT,20MM

42045-015

$8.19

18

WASHER,21X33X2.6

42046-003

$4.31

19

.SLEEVE RR HUB COUPLNG

42036-001

$19.31

20

OIL SEAL RR BRK DRUM

92050-009

Unavailable

21

BEARING-BALL,#6004C3

601B6004

$12.47

22

.BOLT HEX HEAD 10X38

113B1038

Unavailable

23

WASHER,SPROCKET LOCK

92088-005

$6.24

24

NUT-HEX-FINE,10MM

314B1000

$0.67

25

AXLE,REAR

42031-016

$17.83

26

COLLAR REAR HUB R.H

42032-004

$3.87

27

NUT,14MM

314B1400

Unavailable

28

UNAVAILABLE IN PRICE BOOK

42046-006

Unavailable

28

WASHER PLAIN 14MM

411B1400

$3.93

29

REAR SPROCKET 39T

42041-040

$47.38

29

REAR SPROCKET 38T

42041-025

Unavailable

29

REAR SPROCKET 42T

42041-005

$102.17

30

DR CHAIN 428X114H

92057-033

$31.97

31

JOINT-CHAIN

92058-1015

Unavailable

32

DUAL SPROCKET ASSY

42040-002

$100.69

33

REAR SPROCKET 44T

42041-014

$33.35

34

REAR SPROCKET 59T

42041-013

$54.90

35

SPRING REAR SPROCKET

42042-001

$0.54

36

BOLT SPROCKET

92001-083

$4.13

37

WASHER SPRING 8MM

461F0800

$0.40

38

WASHER REAR SPROCKET

92022-040

$0.36

39

DR CHAIN 428X118H

92057-030

$99.06

40

DR CHAIN 428X8H

695Z4308

$3.15

41

JOINT-CHAIN

92058-1015

Unavailable
