Description

Price

1

TANK OIL

52001-007

$19.70

2

CAP OIL TANK

52003-002

Unavailable

3

GASKET OIL TANK CAP

92065-020

Unavailable

4

STRAINER OIL TANK CAP

52004-002

$16.36

5

PIPE OIL TANK

92059-024

Unavailable

6

CLAMP,TUBE

92037-010

$3.92

7

BASE OIL TANK

32094-002

$9.02

8

BRACKET OIL TANK A

32094-004

Unavailable

9

BRACKET OIL TANK B

32094-003

$5.92

10

PIN OIL TANK

32111-003

$3.72

11

BAND OIL TANK

32100-008

$7.28

12

SCREW-PAN-CROS,6X14

220B0614

$1.48

13

BOLT-UPSET 6X14

112B0614

Unavailable

14

WASHER SPRING 6MM

461F0600

$0.69

15

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

16

GROMMET,PIPE

92071-038

Unavailable

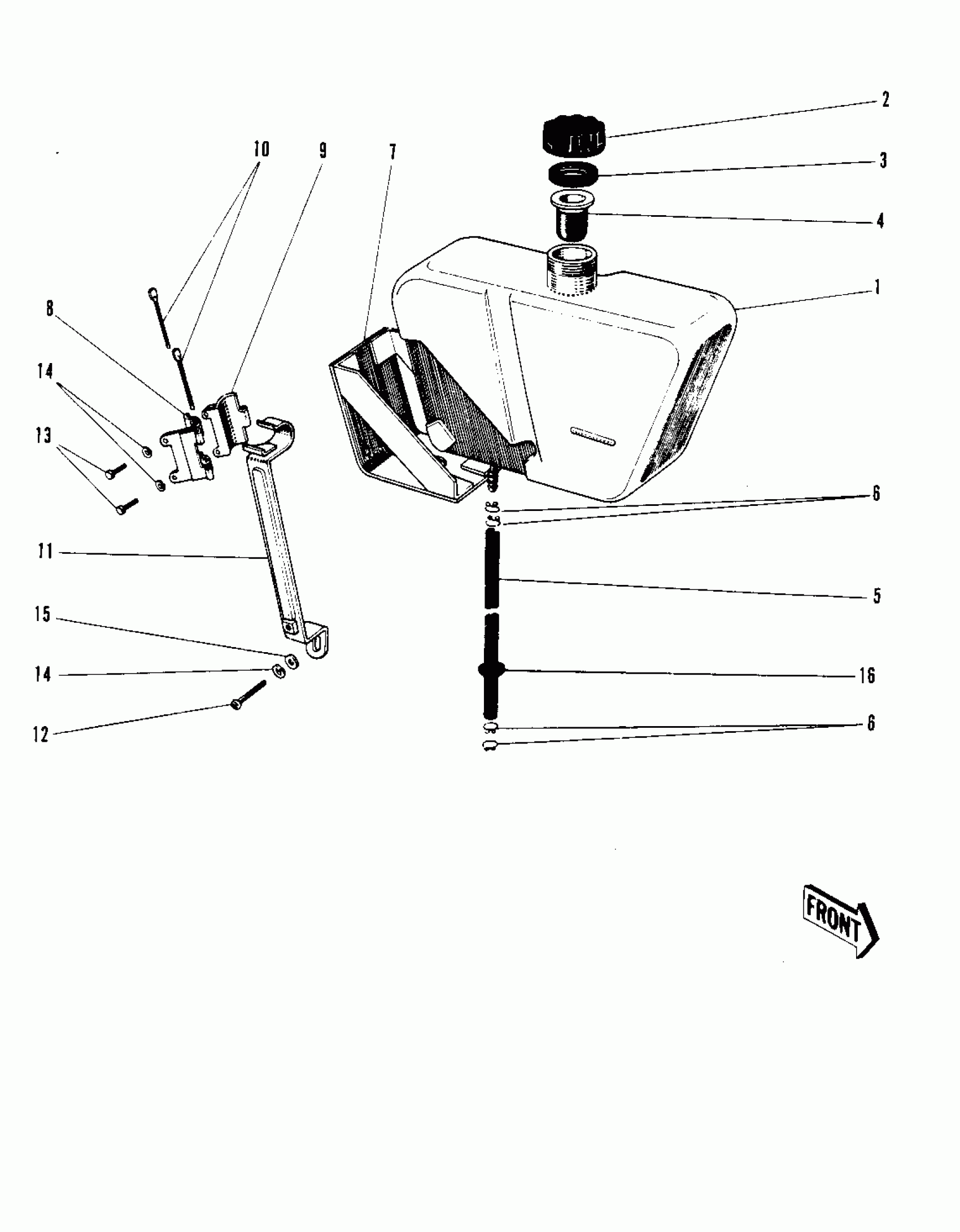

Kawasaki Bushwhacker OIL TANK Diagram

TANK OIL

CAP OIL TANK

GASKET OIL TANK CAP

STRAINER OIL TANK CAP

PIPE OIL TANK

CLAMP,TUBE

BASE OIL TANK

BRACKET OIL TANK A

BRACKET OIL TANK B

PIN OIL TANK

BAND OIL TANK

SCREW-PAN-CROS,6X14

BOLT-UPSET 6X14

WASHER SPRING 6MM

WASHER-PLAIN-SMALL,6MM

GROMMET,PIPE
