Description

Price

1

MUFFLER ASSY

18002-027

$153.91

2

SPARK ARRESTOR COMP

18033-018

$28.06

3

BAFFLE TUBE

18033-039

Unavailable

4

TAIL PIECE

18048-006

Unavailable

5

BOLT,6X10

112G0610

$0.58

6

INSULATOR

18065-001

Unavailable

7

WASHER SPRING 8MM

461F0800

$0.40

7

WASHER SPRING 8MM

461F0800

Unavailable

8

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

9

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

10

WASHER PLAIN 8MM

410B0800

$0.93

11

COVER MUFFLER FRONT

18057-011

Unavailable

12

COVER MUFFLER REAR

18057-019

$8.96

13

SCREW PAN HEAD 6X10

221E0610

$3.13

14

SPACER MUFFLER COVER

18061-014

$2.29

15

BRACKET MUFFLER FRONT

18061-015

$3.87

16

BRACKET MUFFLER REAR

18061-016

$6.81

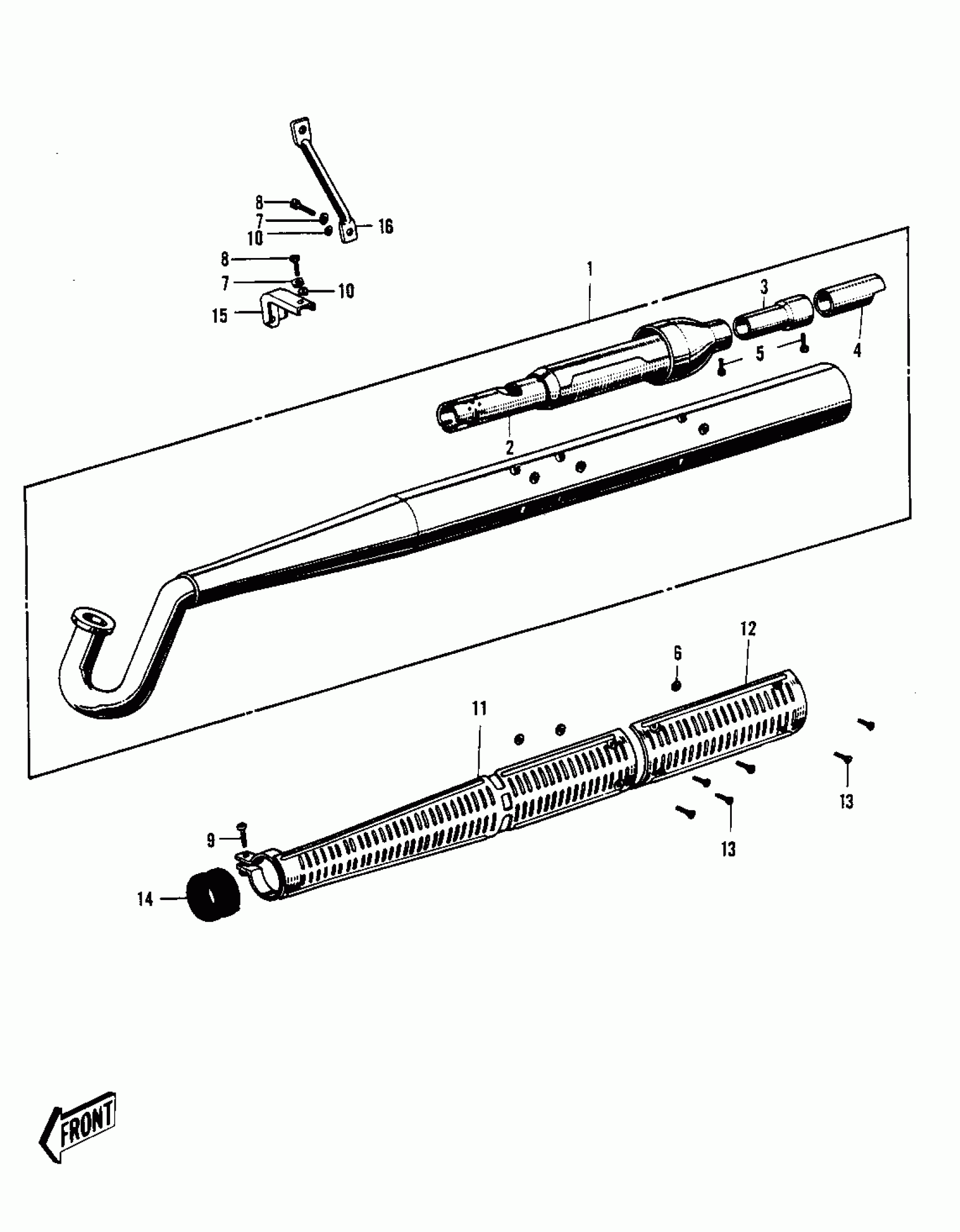

Kawasaki Bushwhacker MUFFLER Diagram

MUFFLER ASSY

SPARK ARRESTOR COMP

BAFFLE TUBE

TAIL PIECE

BOLT,6X10

INSULATOR

WASHER SPRING 8MM

WASHER SPRING 8MM

BOLT-SMALL-UPSET,8X16

SCREW-PAN-CROS,6X20,WHITE

WASHER PLAIN 8MM

COVER MUFFLER FRONT

COVER MUFFLER REAR

SCREW PAN HEAD 6X10

SPACER MUFFLER COVER

BRACKET MUFFLER FRONT

BRACKET MUFFLER REAR
