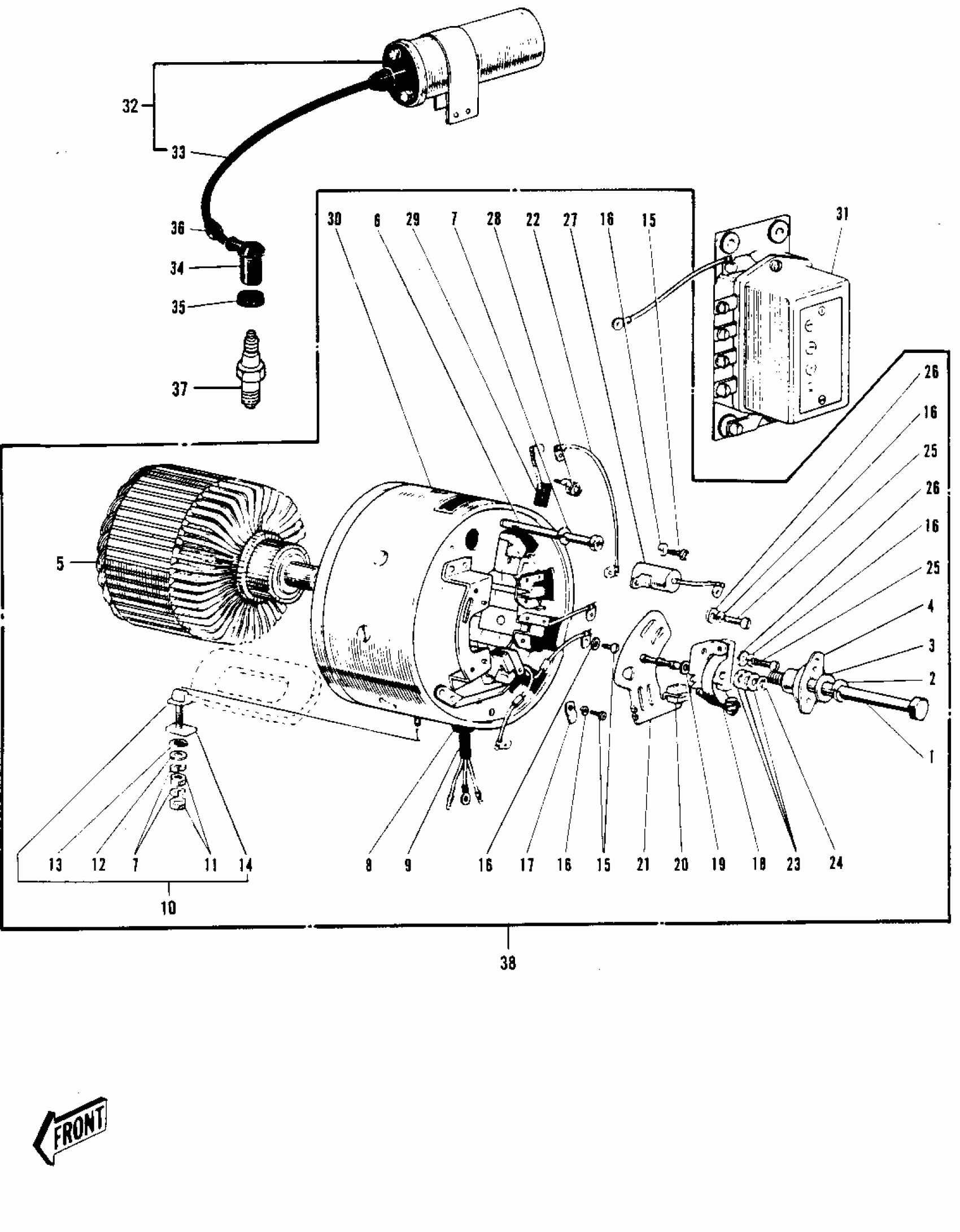

Kawasaki Bushwhacker IGNITION/GENERATOR/STARTER Diagram

#

Description
Price

1

BOLT HEX HEAD 8X95

114G0895

$8.11

2

WASHER SPRING 8MM

461F0800

$0.40

3

WASHER 8MM

21102-003

$0.25

4

CAM CONTACT BREAKER

21103-002

$53.96

5

ARMATURE

21080-002

$139.36

6

SCREW PAN HEAD 5X88

21099-002

$4.50

6

SCREW PAN HEAD 5X88

92011-019

Unavailable

7

WASHER SPRING 5MM

461F0500

$0.69

8

UNAVAILABLE IN PRICE BOOK

21017-016

Unavailable

9

WIRING HARNESS DYNAMO

21096-003

$4.95

10

UNAVAILABLE IN PRICE BOOK

21090-001

$5.09

11

NUT-HEX

311B0500

$0.47

12

WASHER-PLAIN,5MM

411B0500

$0.46

13

WASHER INSULATOR

21092-001

$0.24

14

INSULATOR TERMINAL

21091-001

$1.61

15

SCREW PAN HEAD 4X6

220B0406

$1.67

16

WASHER SPRING 4MM

461F0400

Unavailable

17

CLAMP WIRE

21098-003

$0.54

18

ARM CONTACT BREAKER

21082-006

Unavailable

19

CAM PLATE

21106-003

Unavailable

20

FELT-OIL

21019-011

Unavailable

21

PLATE CONTACT BREAKER

21084-006

$4.81

22

WIRE LEAD

21095-002

$1.53

23

WASHER 0.1MM

21108-002

$0.21

24

CIRCLIP 3MM

482K3000

$1.78

25

SCREW PAN HEAD 4X8

220B0408

$0.67

26

WASHER PLAIN 4MM

410B0400

$0.48

27

CONDENSER

21013-012

$28.39

28

SPRING, CARBON BRUSH

21089-005

$2.32

29

BRUSH CARBON

21088-007

$28.29

30

YOKE ASSY

21076-002

$134.14

31

REGULATOR,VOLTAGE

21066-1003

$113.67

32

COIL IGNITION

21121-022

$60.78

33

CORD HIGH TENSION

21133-003

Unavailable

34

CAP-SPARK PLUG

21130-016

$24.97

35

GROMMET PLUG CAP A

21131-002

Unavailable

36

GROMMET

92071-517

$0.69

37

UNAVAILABLE IN PRICE BOOK

92070-010A

$3.62

37

SPARK PLUG B8HS

B8HS

Unavailable

38

DYNAMO STARTER

21075-005

$271.28
