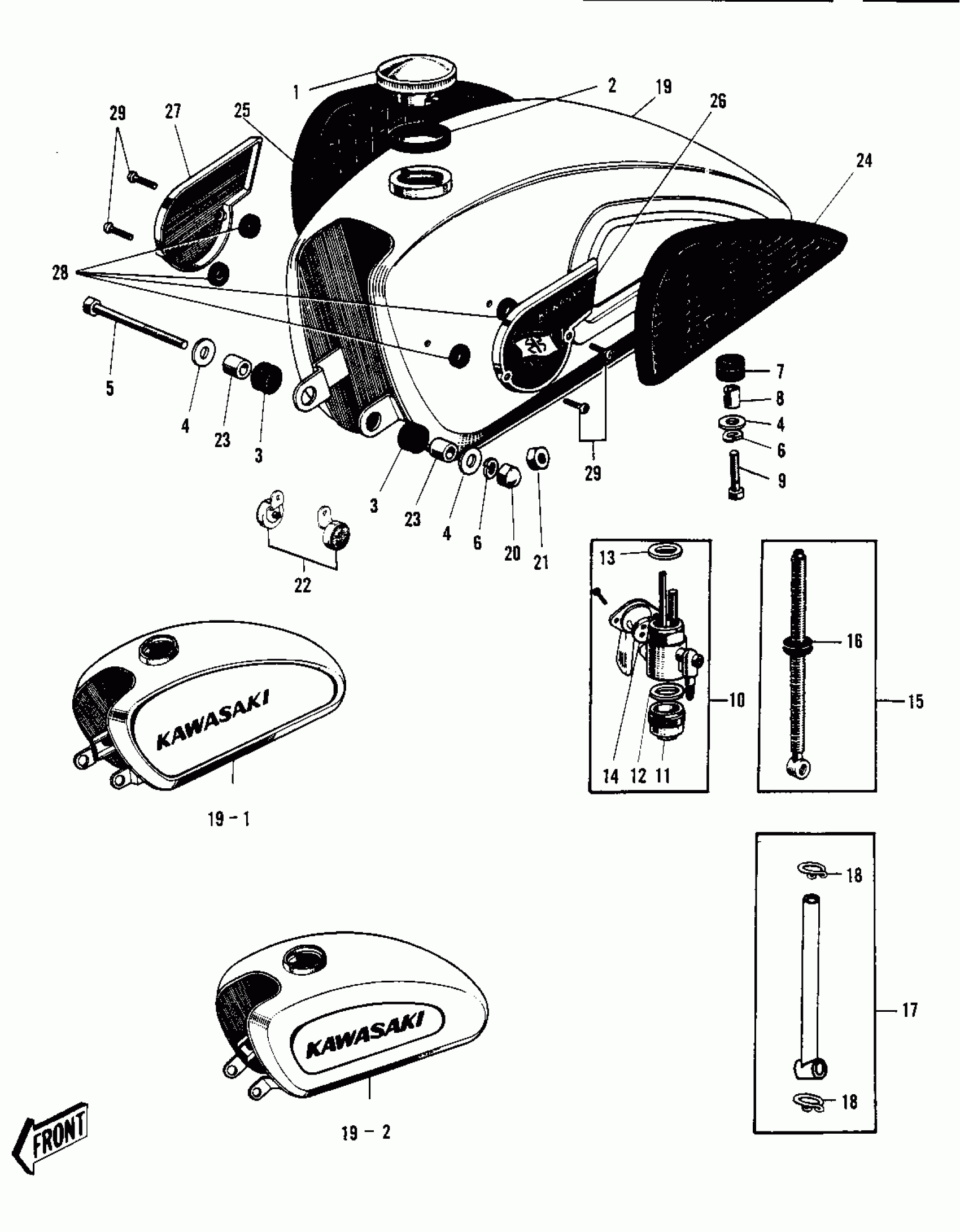

Kawasaki Bushwhacker FUEL TANK Diagram

#

Description
Price

1

CAP ASSY, LOCKING

51048-006

Unavailable

2

UNAVAILABLE IN PRICE BOOK

51049-003

Unavailable

3

DAMPER RUBB TANK FRNT

92075-019

Unavailable

4

WASHER,8X26X2.3

92022-1564

$4.31

5

UNAVAILABLE IN PRICE BOOK

116B08110

Unavailable

6

WASHER SPRING 8MM

461F0800

$0.40

7

DAMPER RUBB TANK REAR

92075-030

Unavailable

8

COLLAR,8.8X12X17

92027-034

$7.24

9

BOLT HEX HEAD 8X35

116B0835

$0.39

10

COCK ASSY,FUEL

51023-044

Unavailable

11

CUP FUEL COCK

51036-003

$5.03

12

GASKET FUEL COCK CUP

51037-007

$3.71

13

GASKET FUEL COCK JONT

51032-001

$7.48

14

GASKET FUEL COCK LEV

92065-019

$3.74

15

PIPE-FUEL

51044-031

Unavailable

15

PIPE-FUEL

51044-031

Unavailable

16

GROMMET,PIPE

92071-038

Unavailable

17

PIPE-FUEL

51044-031

Unavailable

18

CLAMP,TUBE

92037-010

$3.92

19

TANK FUEL SILVER

51001-019-14

Unavailable

19-1

UNAVAILABLE IN PRICE BOOK

51001-046-14

Unavailable

19-2

TANK-FUEL,SILVER

51001-046-49

Unavailable

20

NUT FUEL TANK FRONT

92020-007

Unavailable

21

NUT,8MM

311B0800

$0.67

22

REFLECTOR REFLEX

28001-004

Unavailable

23

SPACER FUEL TANK MONT

51065-001

$3.58

24

GRIP KNEE L.H

51061-005

Unavailable

25

GRIP KNEE R.H

51062-004

Unavailable

26

EMBLEM FUEL TANK L.H

56013-006

Unavailable

27

EMBLEM FUEL TANK R.H

56014-007

Unavailable

28

SPACER FL TANK EMBLEM

56025-002

Unavailable

29

SCREW-PAN-CROS,4X8

220E0408

$3.30
