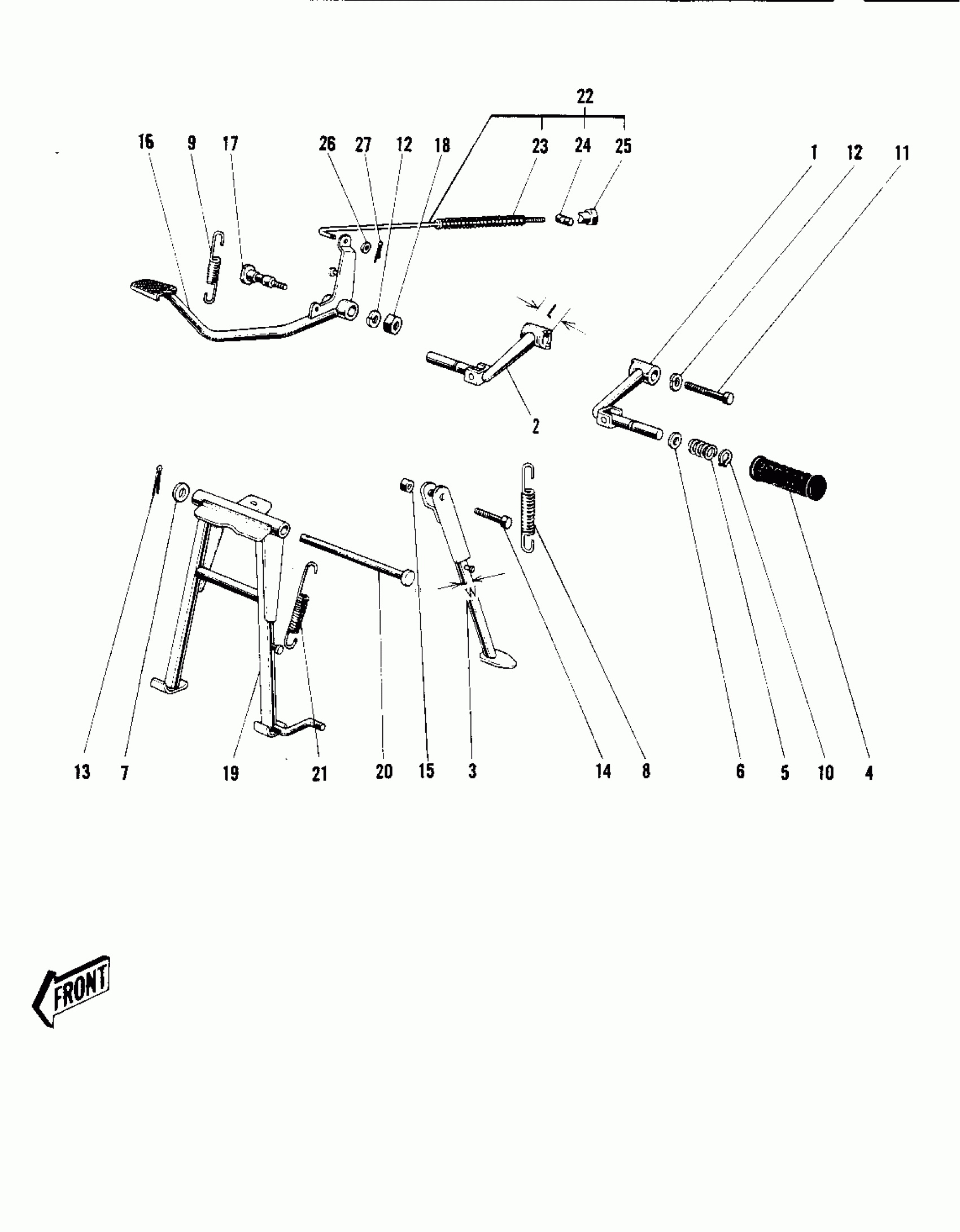

Kawasaki Bushwhacker FOOTRESTS/STANDS/BRAKE PEDAL Diagram

#

Description
Price

1

BAR FOOTREST L.H

34003-003

$18.18

1

BAR FOOTREST L.H

34003-012

$30.37

2

BAR FOOTREST R.H

34003-004

$18.18

2

BAR FOOTREST R.H

34003-014

$20.92

3

STAND-SIDE

34024-017

$26.80

4

RUBBER FOOTREST

92076-010

Unavailable

4

RUBBER FOOTREST

92076-006

$18.94

5

SPRING FOOTREST PEG

34006-002

Unavailable

6

WASHER FOLDING PEG

92022-049

Unavailable

7

WASHER BRAKE PEDAL

92022-085

$3.92

8

SPRING,SIDE STAND

34025-001

Unavailable

9

SPRING BRAKE PEDAL

43005-005

Unavailable

10

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

11

BOLT HEX HEAD 12X40

113G1240

$6.80

11

BOLT HEX HEAD 12X40

113G1240

$6.80

11

BOLT HEX HEAD 12X63

113G1263

$2.93

11

BOLT HEX HEAD 12X63

113G1263A

$3.55

12

WASHER-SPRING,12MM

461F1200

$0.96

13

PIN-COTTER,3.0X30

550D3030

$2.51

14

BOLT-UPSET,10X30

112G1030

Unavailable

15

NUT-HEX-FINE,10MM

315B1000

$0.58

16

PEDAL BRAKE

43001-022

Unavailable

17

SHAFT BRAKE PEDAL

43004-008

$7.62

18

NUT,12MM

314G1200A

$2.65

18

NUT-HEX-FINE

314B1200

$2.87

19

STAND-MAIN

34011-025

$41.38

19

STAND-MAIN

34011-025

$41.38

20

SHAFT MAIN STAND

34019-008

$15.16

21

SPRING MAIN STAND

34023-005

Unavailable

21

SPRING MAIN STAND

34023-005

$10.92

22

BRAKE ROD ASSY

43010-5003

Unavailable

22

ROD ASSY BRAKE

43010-008

$6.81

23

SPRING RR BRKE TORQUE

43008-001

$0.55

24

PIN,BRAKE ROD

92043-039

$6.38

25

NUT,BRAKE ROD

92015-042

$6.22

26

WASHER PLAIN 5MM

410B0500

$0.46

27

PIN COTTER 2.0X15

550D2015

$1.04
