Description

Price

1

PISTON STD

13001-024

Unavailable

1

PISTON 0.020' O.S

13029-021

Unavailable

1

PISTON 0.040' O.S

13027-022

Unavailable

2

RING SET STD

13008-021

Unavailable

2

RING SET 0.020' O.S

13025-023

Unavailable

2

RING SET 0.040' O.S

13024-026

Unavailable

3

CIRCLIP PISTON PIN

92036-004

$0.65

4

PIN-PISTON

13002-010

Unavailable

5

CRANK - CONROD ASSY

13031-027

Unavailable

6

CONNECTING ROD SET

13044-004

Unavailable

7

UNAVAILABLE IN PRICE BOOK

13033-011

Unavailable

7

BEARING-NEEDLE

92046-1038

Unavailable

8

NEEDLE BEARING BG END

13034-010

$34.84

9

WASHER SIDE

92026-024

$29.22

10

CRANK PIN

13035-005

Unavailable

11

CRANKSHAFT R.H

13038-015

Unavailable

12

CRANKSHAFT L.H

13037-021

Unavailable

13

KEY,WOODRUFF

92038-001

$4.96

14

PINION OIL PUMP

16084-003

$69.45

15

WASHER-TOOTHED,12MM

464H1200

$4.60

16

WASHER LOCK 12MM

92024-002

$5.23

17

VALVE ROTARY DISC

12001-005

Unavailable

18

COLLAR CRANKSHAFT

92027-017

$73.98

19

KEY,WOODRUFF

92038-003

$5.37

20

ROLLER,4X12

610A0412

$5.52

21

RING-O

92055-012

$1.01

21

"0" RING,OIL FIL PLUG

92055-026

$2.35

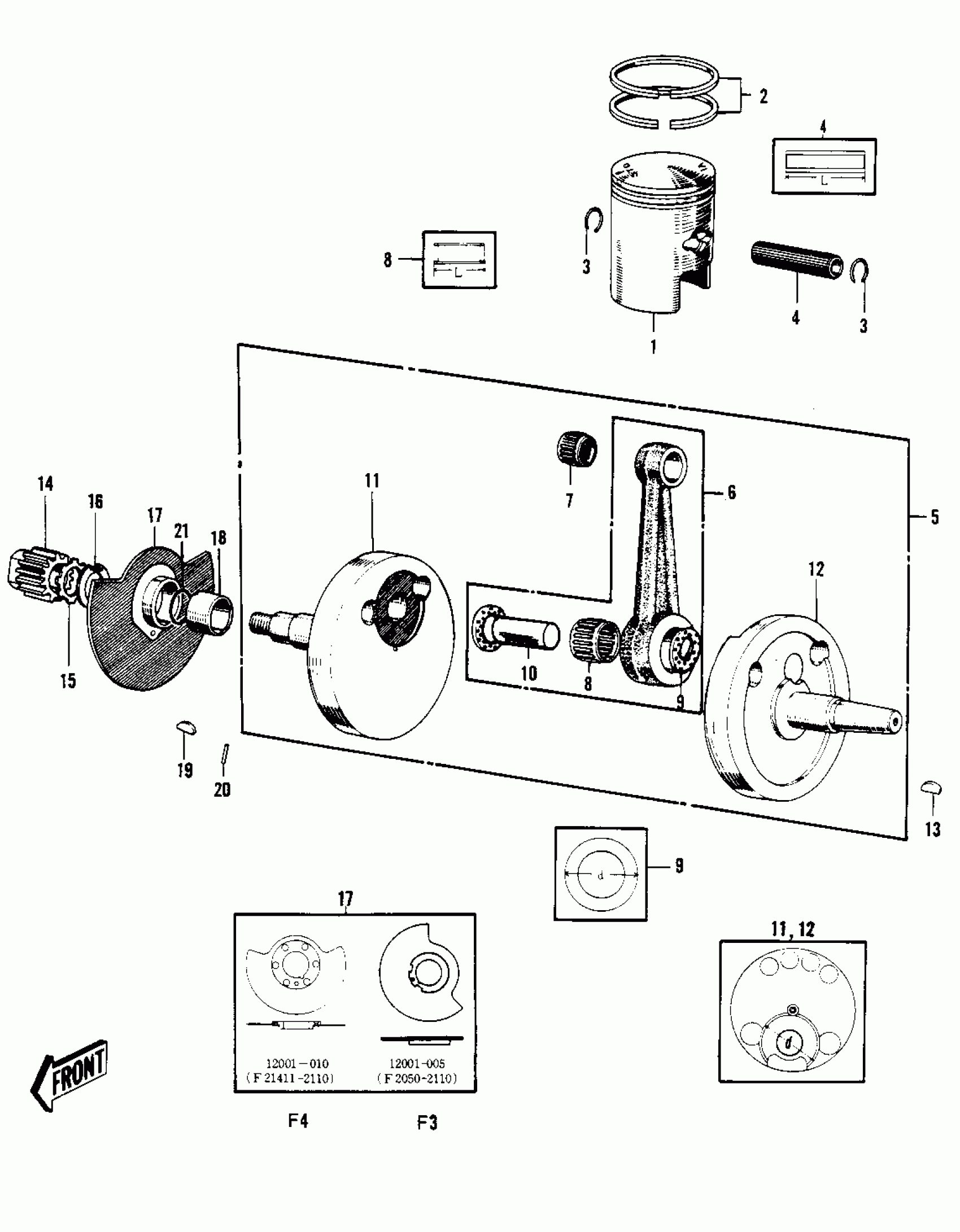

Kawasaki Bushwhacker CRANKSHAFT/PISTON/ROTARY VALVE Diagram

PISTON STD

PISTON 0.020' O.S

PISTON 0.040' O.S

RING SET STD

RING SET 0.020' O.S

RING SET 0.040' O.S

CIRCLIP PISTON PIN

PIN-PISTON

CRANK - CONROD ASSY

CONNECTING ROD SET

UNAVAILABLE IN PRICE BOOK

BEARING-NEEDLE

NEEDLE BEARING BG END

WASHER SIDE

CRANK PIN

CRANKSHAFT R.H

CRANKSHAFT L.H

KEY,WOODRUFF

PINION OIL PUMP

WASHER-TOOTHED,12MM

WASHER LOCK 12MM

VALVE ROTARY DISC

COLLAR CRANKSHAFT

KEY,WOODRUFF

ROLLER,4X12

RING-O

"0" RING,OIL FIL PLUG
