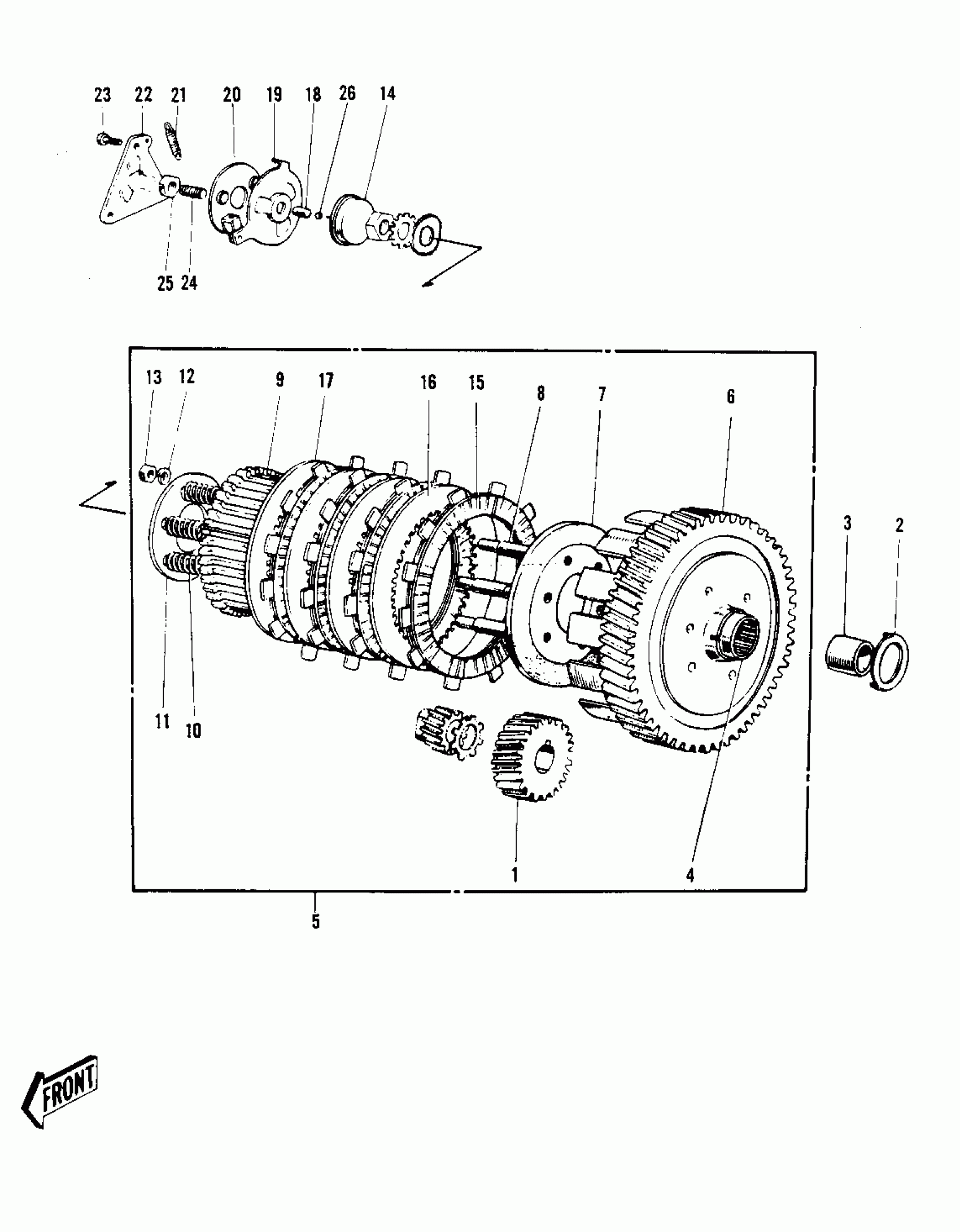

Kawasaki Bushwhacker CLUTCH Diagram
#
Description
Price
1
PINION PRIMARY
13121-005
Unavailable
2
THRUST WASHER 5MM
92026-004
$9.13
3
BUSH CLUTCH
13125-002
Unavailable
4
BEARING CLUTCH NEEDLE
92046-012
$12.95
5
CLUTCH-ASSY
13081-017
Unavailable
6
HOUSING CLOTCH
13096-003
Unavailable
7
BASE CLUTCH
13086-002
Unavailable
8
STUD CLUTCH BASE
92006-001
$1.23
9
STUD CLUTCH BASE
13087-003
Unavailable
9
CLUTCH,HUB
13087-037
Unavailable
10
SPRING CLUTCH
92081-019
$8.92
11
PLATE CLUTCH SPRING
13091-001
Unavailable
12
WASHER SPRING 8MM
461F0800
$0.40
12
WASHER SPRING 8MM
461F0800
Unavailable
13
NUT 8MM
312B0800
$0.58
14
PUSHER CLUTCH SPRING
13113-002
Unavailable
15
PLATE,FRICTION
13088-1104
$18.50
16
PLATE CLUTCH STEEL
13089-003
$14.22
17
PLATE CLUTCH OUTER
13090-002
Unavailable
18
PIN DOWEL 7X10
610A0710
$4.02
19
PLATE ASSY CLTH RELSE
13102-003
Unavailable
20
THRUST BALL ASSY CLTH
13110-003
Unavailable
21
SPRING GEAR CHNG LEV
92083-011
$4.09
22
PLATE CLTH RELESE CAM
13119-003
Unavailable
23
SCREW PAN HEAD 6X12
220B0612
Unavailable
24
SCREW SLOTTED
291Z0622
$5.93
25
NUT 6MM
312B0600
$0.72
26
BALL-STEEL,5/16
600A1000
$0.73
