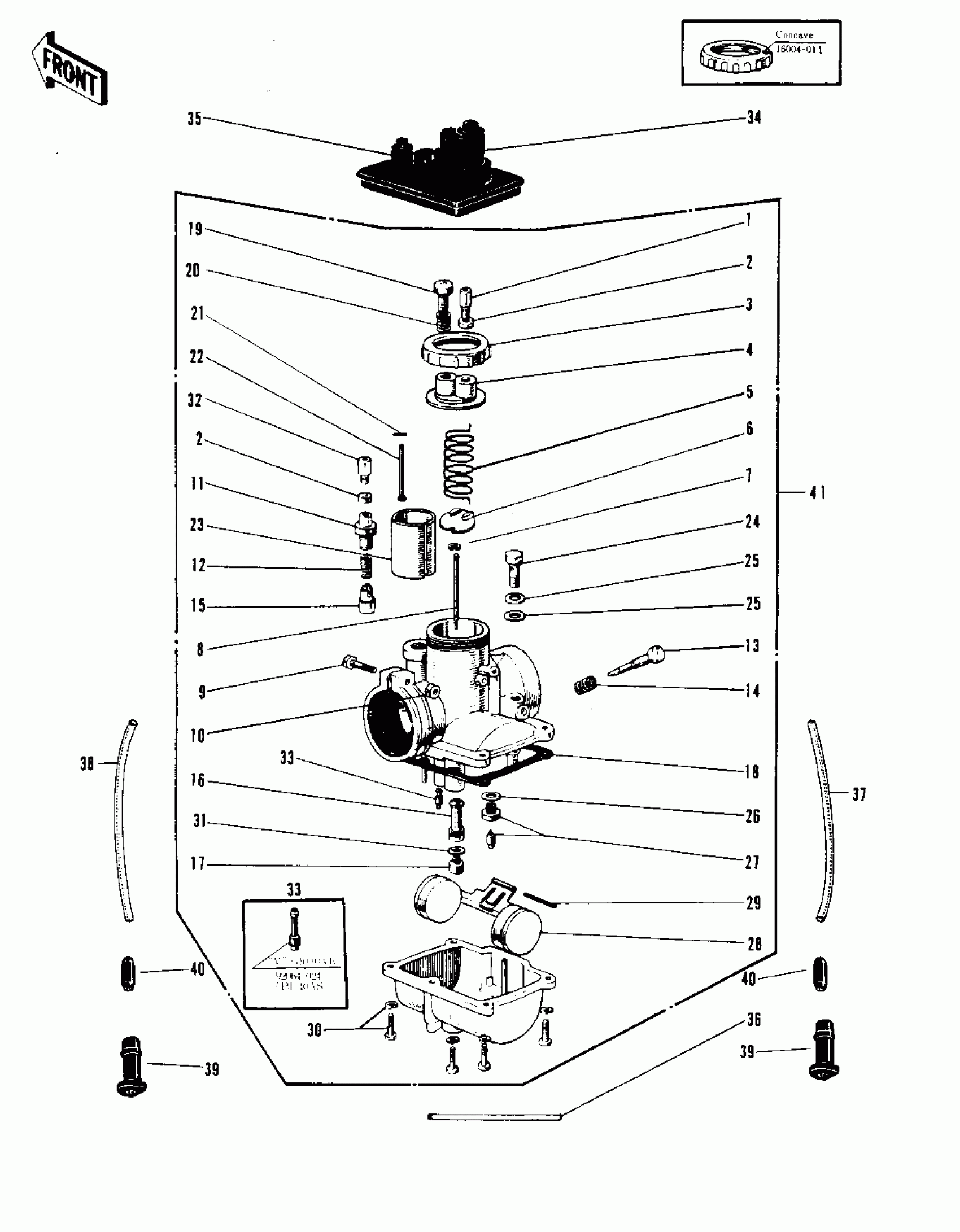

Kawasaki Bushwhacker CARBURETOR Diagram

#

Description
Price

1

CABLE ADJUSTER

16002-002

$11.83

2

NUT,CABLE ADJUST LOCK

16003-004

$7.34

3

CAP MIXING CHAMBER

16004-008

$6.81

3

CAP MIXING CHAMBER

16004-011

$9.15

4

TOP MIXING CHAMBER

16005-013

$6.38

5

SPRING THROTTLE VALVE

16006-010

Unavailable

6

SPRING SEAT THRTL VLV

16007-011

$2.25

7

CLAMP,E-TYPE

16008-010

$9.21

8

JET NEEDLE 4J13

16009-012

Unavailable

9

SCREW,CLAMP

16010-004

$5.57

10

NUT 6MM

311B0600

$0.93

10

NUT 6MM

311B0600

$0.93

11

CAP STARTER PLUNGER

16012-006

Unavailable

12

SPRING,STARTER PLUNGER

16013-005

$7.64

13

SCREW PILOT AIR ADJST

16014-003

Unavailable

14

SPRING,THROTTLE ADJST

16022-010

Unavailable

15

PLUNGER,STARTER

16016-002

$31.85

16

NEEDLE JET N-6

16017-019

Unavailable

17

JET-MAIN,#190

92063-021

$14.10

17

JET-MAIN,#170

92063-019

$14.10

17

JET-MAIN,#180

92063-020

$14.10

17

JET-MAIN,#200

92063-022

$14.10

17

JET-MAIN,#210

92063-023

$14.10

18

GASKET FLOAT CHAMBER

16019-010

$5.12

19

SCREW-THROTTLE STOP

16021-002

$18.22

20

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

21

UNAVAILABLE IN PRICE BOOK

16023-001

$2.46

22

ROD THROTTLE VLV STOP

16024-004

$2.42

23

VALVE THROTTLE CA2.0

16025-015

$23.22

24

BOLT BANJO

92001-014

Unavailable

25

GASKET 8MM

751P0800

$1.96

26

WASHER FLOAT VLV SEAT

16029-004

$3.89

27

VALVE-FLOAT,2.5

16030-005

$58.86

28

FLOAT

16031-010

Unavailable

29

PIN,FLOAT

16032-003

$6.57

30

SCREW FLOAT CHAMBER

16033-008

$0.90

30

SCREW FLOAT CHAMBER

16033-009

Unavailable

31

WASHER,MAIN JET

16034-001

$4.31

32

CABLE ADJUSTER

16002-005

$5.46

33

PILOT JET #40

92064-005

$14.42

33

JET-PILOT NO 40

92064-024

Unavailable

34

GROMMET CARBRETOR CAP

14038-011

Unavailable

35

CAP CARBURETOR

14038-014

Unavailable

36

PIPE FUEL OVERFLOW

92059-023

$0.24

36

PIPE FUEL OVERFLOW

92059-031

Unavailable

37

PIPE AIR VENT A

92059-038

Unavailable

38

PIPE AIR VENT A

92059-038

Unavailable

39

GUIDE FUEL OVERFLOW

16136-002

Unavailable

40

PIPE

92098-001

Unavailable

41

CARBURETOR ASSY

16001-054

Unavailable
