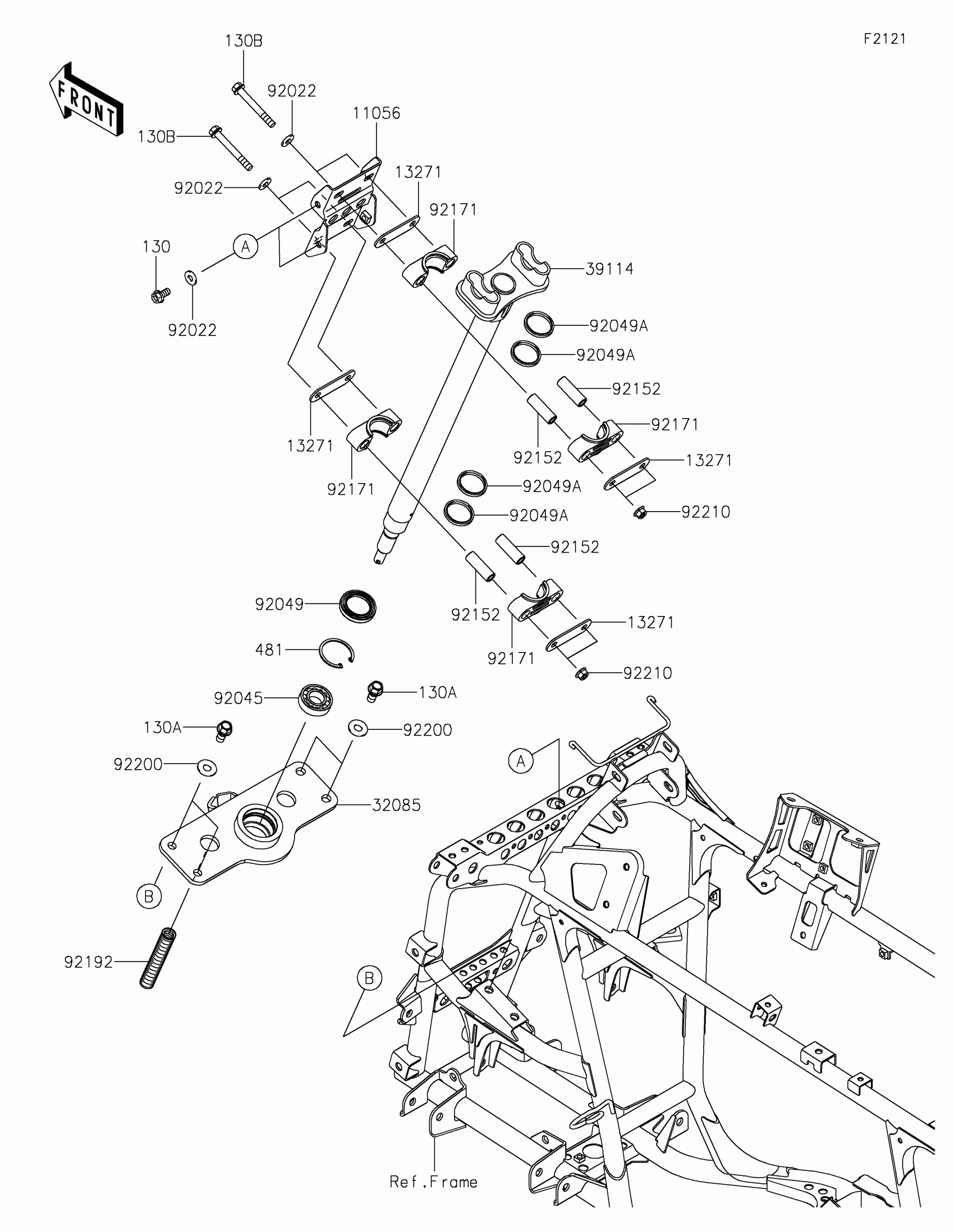

Kawasaki BRUTE FORCE® 750 Steering Shaft Diagram

Description

Price

11056

BRACKET,STRG,UPP

11056-0284

$10.58

13271

PLATE,STEERING,CLAMP

13271-7506

$1.94

32085

STOPPER,STRG

32085-0904

$91.95

39114

SHAFT-COMP-STRG

39114-0014

$181.94

92022

WASHER,8.2X19X2

92022-1533

$5.52

92045

BEARING-BALL,60042RD

92045-3705

$31.76

92049

SEAL-OIL,HTC 30X45X8

92049-1575

$16.41

92049A

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$5.00

92152

COLLAR,9.1X13.95X42

92152-7501

$7.65

92171

CLAMP,STEERING

92171-7501

$7.65

92192

TUBE,CORRUGATED,13X16.7X100

92192-0938

$0.84

92200

WASHER,10.5X25X1.6

92200-1595

$6.18

92210

NUT,FLANGED,LOCK,8MM

92210-0493

$7.60

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,10X20

130BB1020

$5.96

130B

BOLT-FLANGED,8X65

130CA0865

$2.32

481

CIRCLIP-TYPE-C,42MM

481J4200

$6.16
