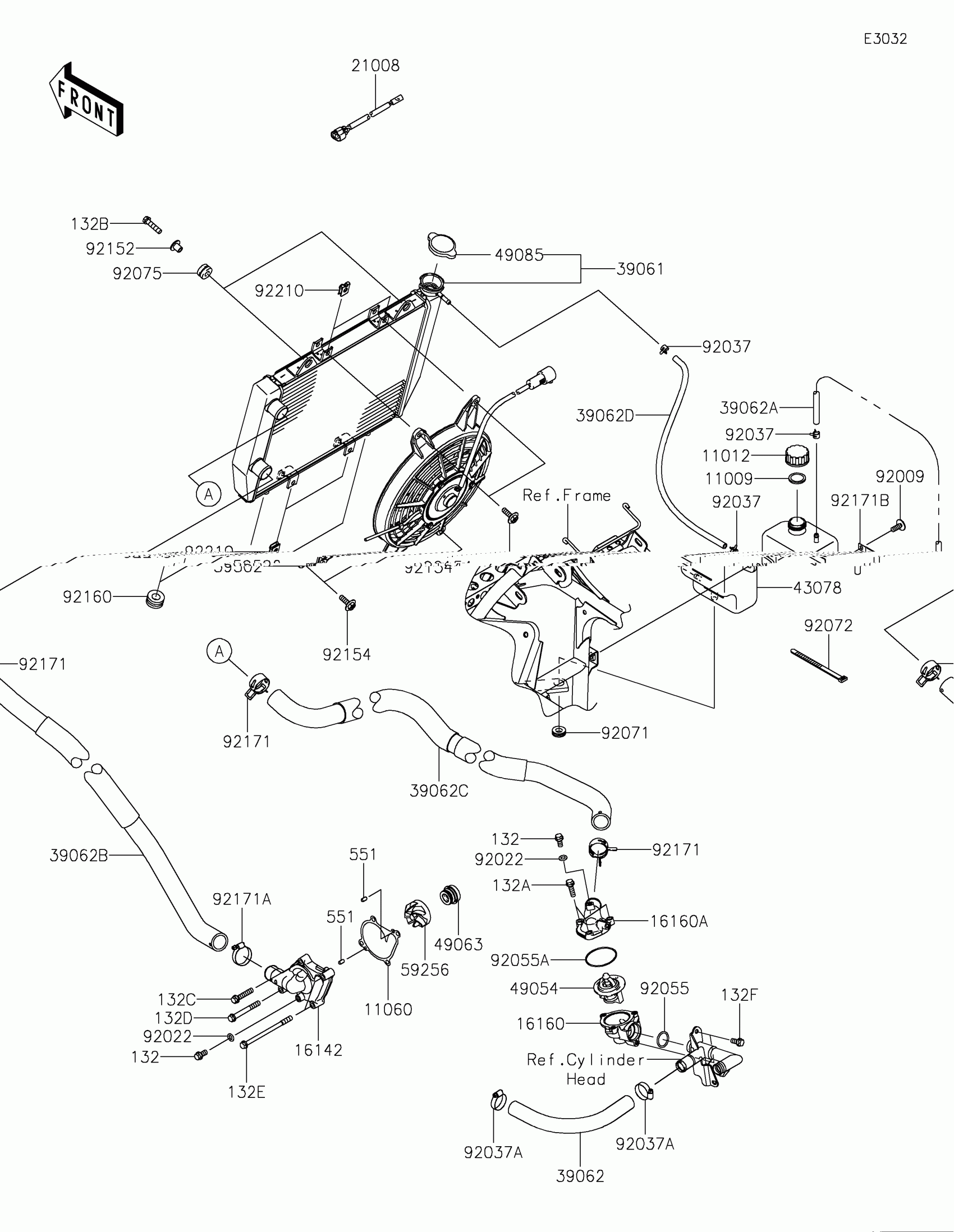

Kawasaki BRUTE FORCE® 750 Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,WATER PUMP
11060-1964
$7.58
16142
COVER-PUMP,WATER
16142-0069
$63.96
16160
BODY,THERMOSTAT,LWR
16160-0189
$79.78
16160A
BODY,THERMOSTAT,UPP
16160-0778
$67.23
21008
BREAKER,FAN MOTOR
21008-0555
$12.09
39061
RADIATOR-ASSY
39061-0589
$434.49
39062
HOSE-COOLING,FR HEAD-THERMO
39062-0316
$12.10
39062A
HOSE-COOLING,5X9X800
39062-0321
$7.59
39062B
HOSE-COOLING,RADIATOR-PUMP
39062-0587
$25.72
39062C
HOSE-COOLING,THERMO-RADIATOR
39062-0630
$35.05
39062D
HOSE-COOLING,5X9X410
39062-0631
$3.23
43078
RESERVOIR
43078-0070
$39.23
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-0005
$45.60
59256
IMPELLER
59256-1069
$21.38
59502
FAN-ASSY
59502-0554
$375.21
92009
SCREW,6X16
92009-1694
$3.92
92022
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-1461
$3.88
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92055
RING-O,22.1X2.4
92055-1081
$4.69
92055A
RING-O,44.7X2.4
92055-1279
$7.34
92071
GROMMET
92071-1115
$5.46
92072
BAND,L=149
92072-031
$5.00
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92152
COLLAR
92152-2852
$3.53
92154
BOLT,6X12
92154-0741
$5.22
92160
DAMPER
92160-1007
$5.52
92171
CLAMP,COOLING HOSE
92171-0060
$4.41
92171A
CLAMP
92171-0179
$8.20
92171B
CLAMP,L=60
92171-0652
$2.61
92210
NUT
92210-1323
$4.18
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
132B
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
132C
BOLT-FLANGED-SMALL,6X30
132BA0630
$2.65
132D
BOLT-FLANGED-SMALL,6X50
132BA0650
$3.69
132E
BOLT-FLANGED-SMALL,6X90
132BA0690
$3.26
132F
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
551
PIN-DOWEL,4X8
551A0408
$0.78
