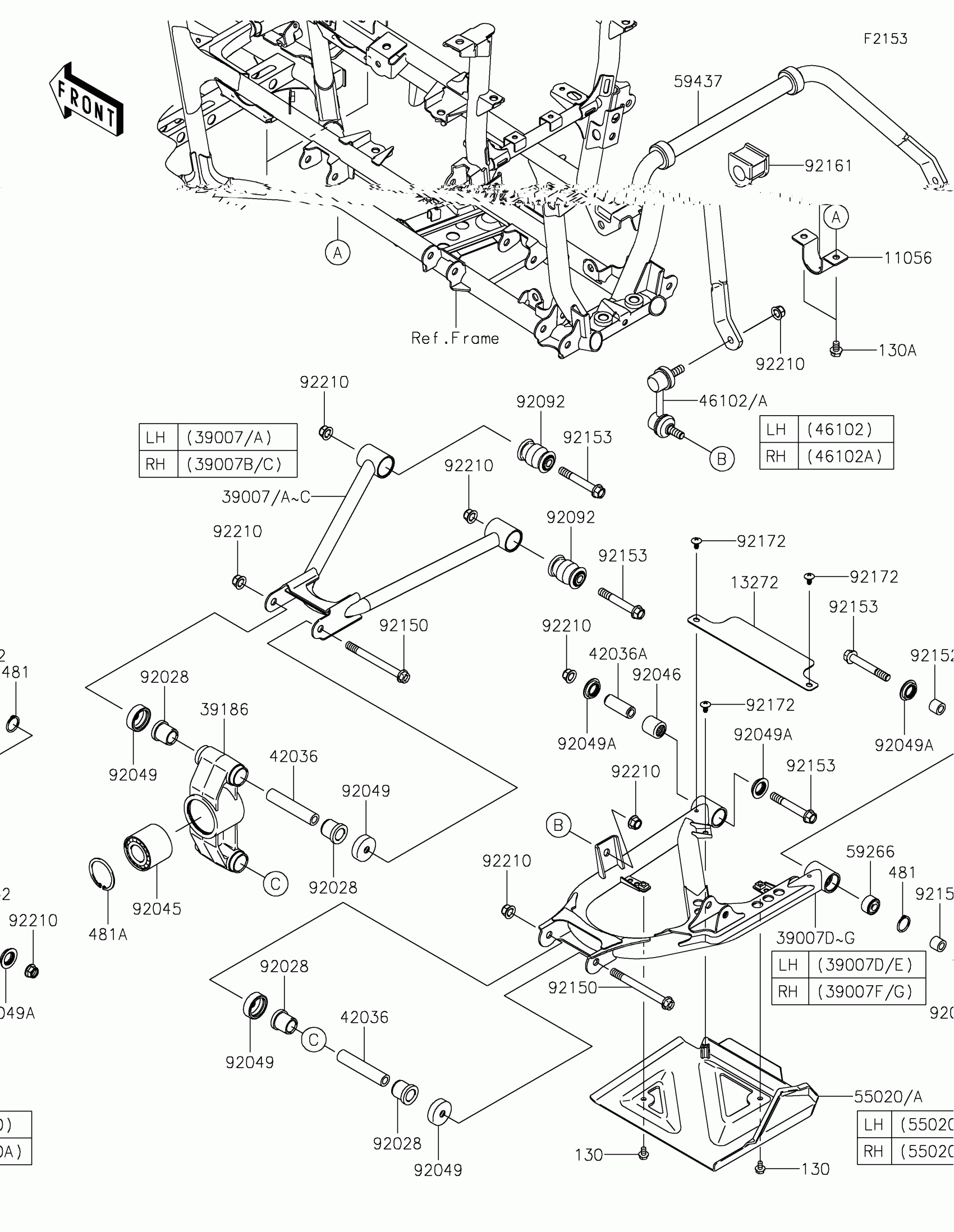

Kawasaki BRUTE FORCE® 750 LE EPS Rear Suspension Diagram

#

Description
Price

11056

BRACKET,STABILIZER

11056-1062

$3.62

13272

PLATE,RR ARM

13272-0919

$2.45

39007

ARM-SUSP,RR,UPP,LH,P.GOLD

39007-0170-66X

$83.53

39007A

ARM-SUSP,RR,UPP,LH,P.E.TURQUOI

39007-0170-72G

$83.53

39007B

ARM-SUSP,RR,UPP,RH,P.GOLD

39007-0171-66X

$83.53

39007C

ARM-SUSP,RR,UPP,RH,P.E.TURQUOI

39007-0171-72G

$83.53

39007D

ARM-SUSP,RR,LWR,LH,P.GOLD

39007-0172-66X

$111.32

39007E

ARM-SUSP,RR,LWR,LH,P.E.TURQUOI

39007-0172-72G

$111.32

39007F

ARM-SUSP,RR,LWR,RH,P.GOLD

39007-0173-66X

$111.32

39007G

ARM-SUSP,RR,LWR,RH,P.E.TURQUOI

39007-0173-72G

$111.32

39186

KNUCKLE,RR

39186-0099

$213.30

42036

SLEEVE,10X17X85.6

42036-1190

$29.63

42036A

SLEEVE

42036-1376

$14.71

46102

ROD,STABILIZER,LH

46102-0100

$48.58

46102A

ROD,STABILIZER,RH

46102-0101

$48.58

55020

GUARD,REAR ARM,LH,F.BLACK

55020-0972-6Z

$33.78

55020A

GUARD,REAR ARM,RH,F.BLACK

55020-0973-6Z

$33.78

59266

JOINT-BALL

59266-0013

$65.53

59437

STABILIZER,RR

59437-0307

$104.90

92028

BUSHING

92028-1466

$10.28

92045

BEARING-BALL,25BWD02ACA68

92045-0094

Unavailable

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL,KNUCKLE

92049-1198

$20.09

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92092

BUSHING-RUBBER

92092-0004

$8.28

92150

BOLT,FLANGED,10X105

92150-1624

$9.91

92152

COLLAR,10X17X14.5

92152-1455

$9.07

92153

BOLT,FLANGED,10X70

92153-1606

$4.65

92161

DAMPER

92161-0265

$5.64

92172

SCREW,6X12

92172-0884

$3.86

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,8X12

130BA0812

$0.95

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

481A

CIRCLIP-TYPE-C,52MM

481J5200

$4.96
