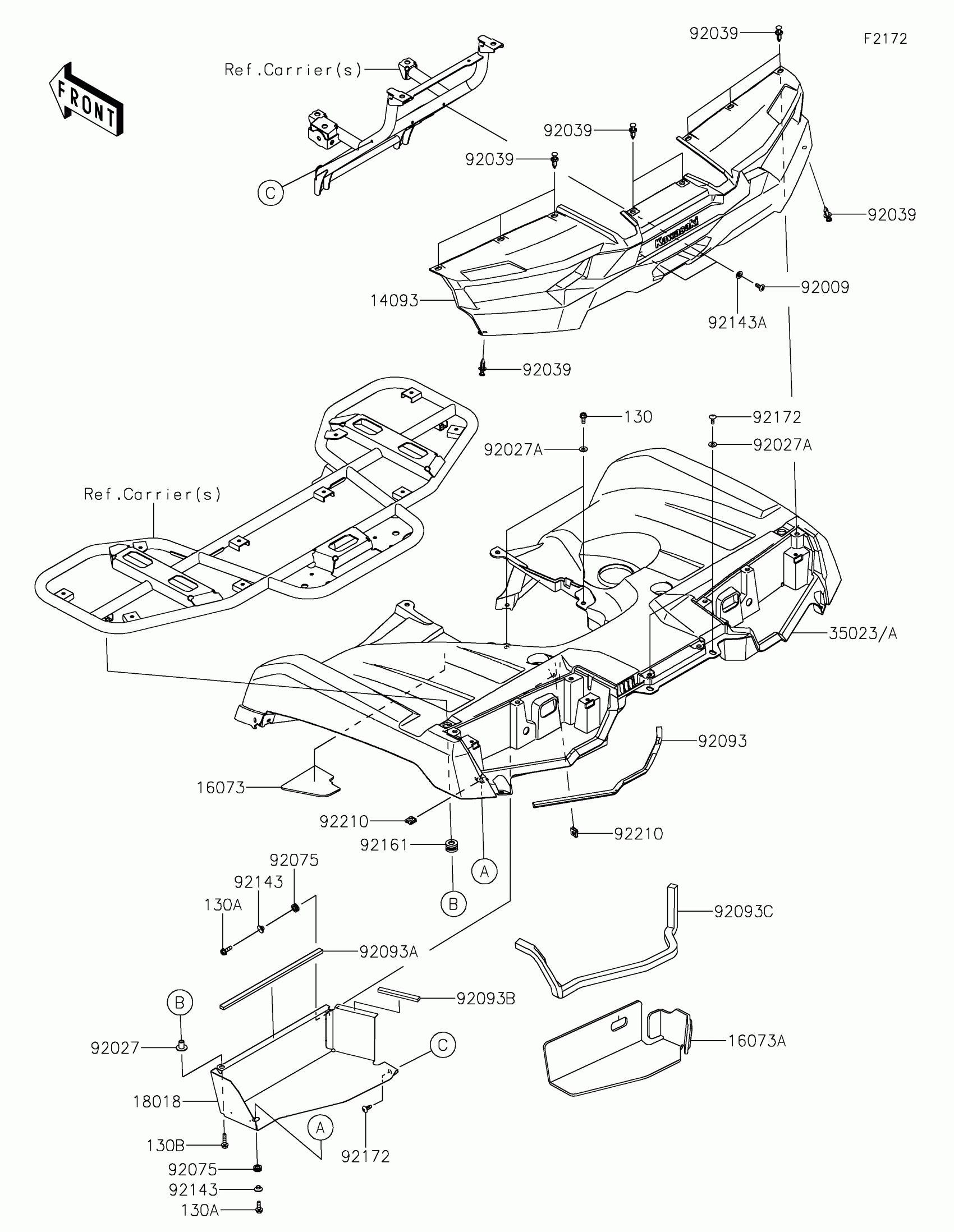

Kawasaki BRUTE FORCE® 750 LE EPS Rear Fender(s) Diagram

Description

Price

14093

COVER,RR

14093-1509

$115.75

16073

INSULATOR

16073-0926

$6.80

16073A

INSULATOR,HEAT GUARD

16073-0951

$48.44

18018

PLATE-HEAT GUARD

18018-0649

$95.17

35023

FENDER-REAR,C.C.GRAY

35023-0499-66Z

$586.09

35023A

FENDER-REAR,P.M.S.GREEN

35023-0499-72R

$542.36

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92027

COLLAR,L=16.1

92027-1847

$6.22

92027A

COLLAR

92027-4020

$4.65

92039

RIVET

92039-0776

$1.19

92075

DAMPER

92075-1947

$7.33

92093

SEAL,10X8X370

92093-0801

$9.27

92093A

SEAL,10X6X285

92093-0802

$5.96

92093B

SEAL,10X6X90

92093-0803

$2.37

92093C

SEAL,15X15X615

92093-0804

$21.41

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92161

DAMPER

92161-0106

$1.73

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92210

NUT

92210-0754

$2.02

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,6X18

130BA0618

$1.54

130B

BOLT-FLANGED,6X25

130BA0625

$1.20
