2025 Kawasaki Brute Force® 750 LE EPS Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2025 Kawasaki Brute Force® 750 LE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

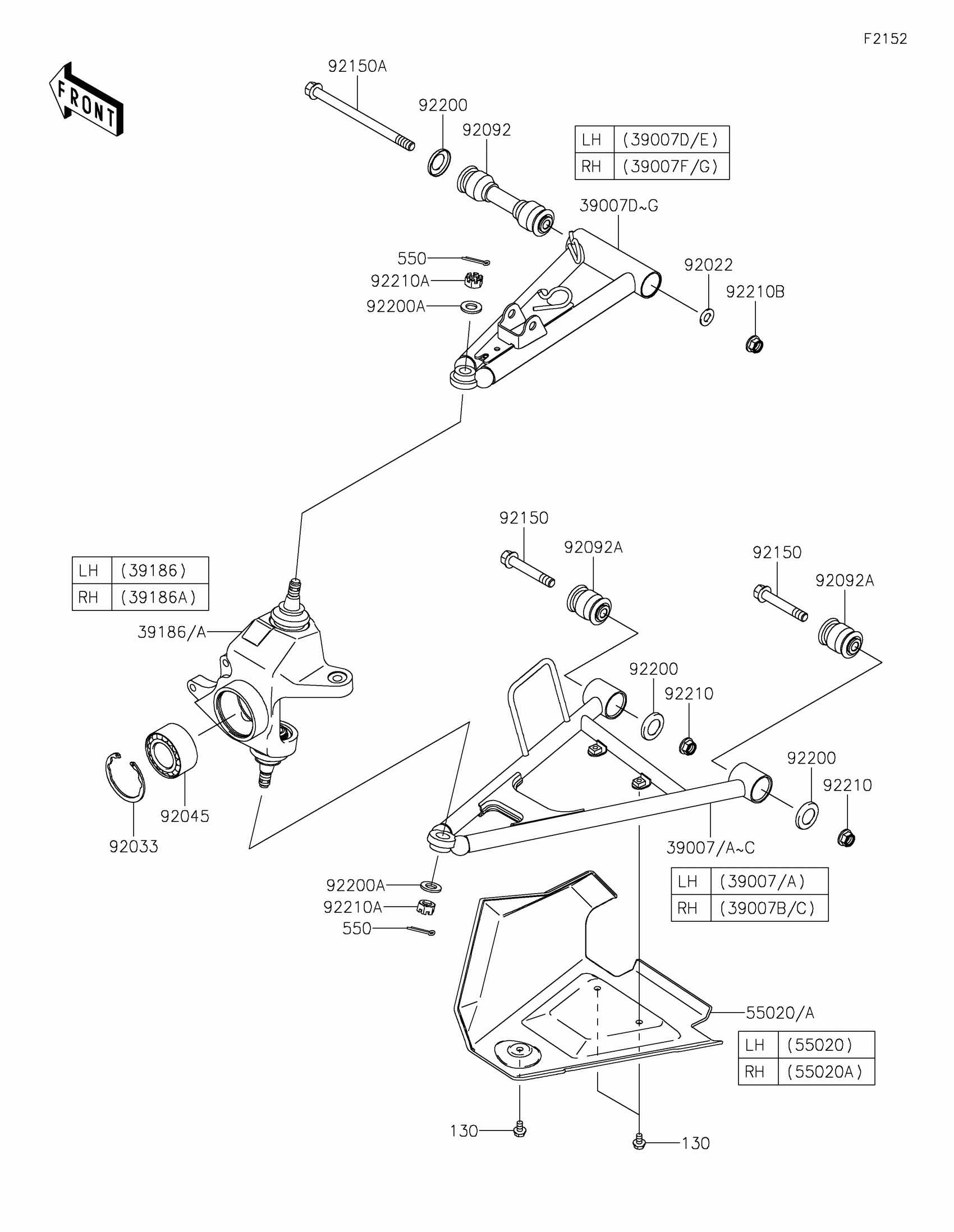

2025 Kawasaki Brute Force® 750 LE EPS Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,FR,LWR,LH,P.GOLD

39007-0176-66X

1
Out of stock

39007A

ARM-SUSP,FR,LWR,LH,P.E.TURQUOI

39007-0176-72G

1
Out of stock

39007B

ARM-SUSP,FR,LWR,RH,P.GOLD

39007-0177-66X

1
Out of stock

39007C

ARM-SUSP,FR,LWR,RH,P.E.TURQUOI

39007-0177-72G

1
Out of stock

39007D

ARM-SUSP,FR,UPP,LH,P.GOLD

39007-0341-66X

1
Out of stock

39007E

ARM-SUSP,FR,UPP,LH,P.E.TURQUOI

39007-0341-72G

1
Out of stock

39007F

ARM-SUSP,FR,UPP,RH,P.GOLD

39007-0342-66X

1
Out of stock

39007G

ARM-SUSP,FR,UPP,RH,P.E.TURQUOI

39007-0342-72G

1
Out of stock

39186

KNUCKLE ASSY,FR,LH

39186-0033

1

$281.18

In stock

39186A

KNUCKLE ASSY,FR,RH

39186-0034

1

$281.18

In stock

55020

1

$34.38

In stock

55020A

1

$31.62

In stock

92022

WASHER,10.2X20X1.5

92022-3742

1
Out of stock

92033

RING-SNAP,55MM

92033-1274

1
Out of stock

92045

BEARING-BALL,30BWD08ACA13

92045-0095

1
Out of stock

92092

BUSHING-RUBBER

92092-0025

1
Out of stock

92092A

BUSHING-RUBBER

92092-0026

1
Out of stock

92150

BOLT,FLANGED,10X63

92150-1384

1
Out of stock

92150A

BOLT,FLANGED,10X150

92150-1686

1
Out of stock

92200

WASHER,19X31.8X4

92200-0582

1
Out of stock

92200A

WASHER,12.3X23X2.3

92200-1004

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

92210A

NUT,CASTLE,12MM

92210-0395

1
Out of stock

92210B

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock
