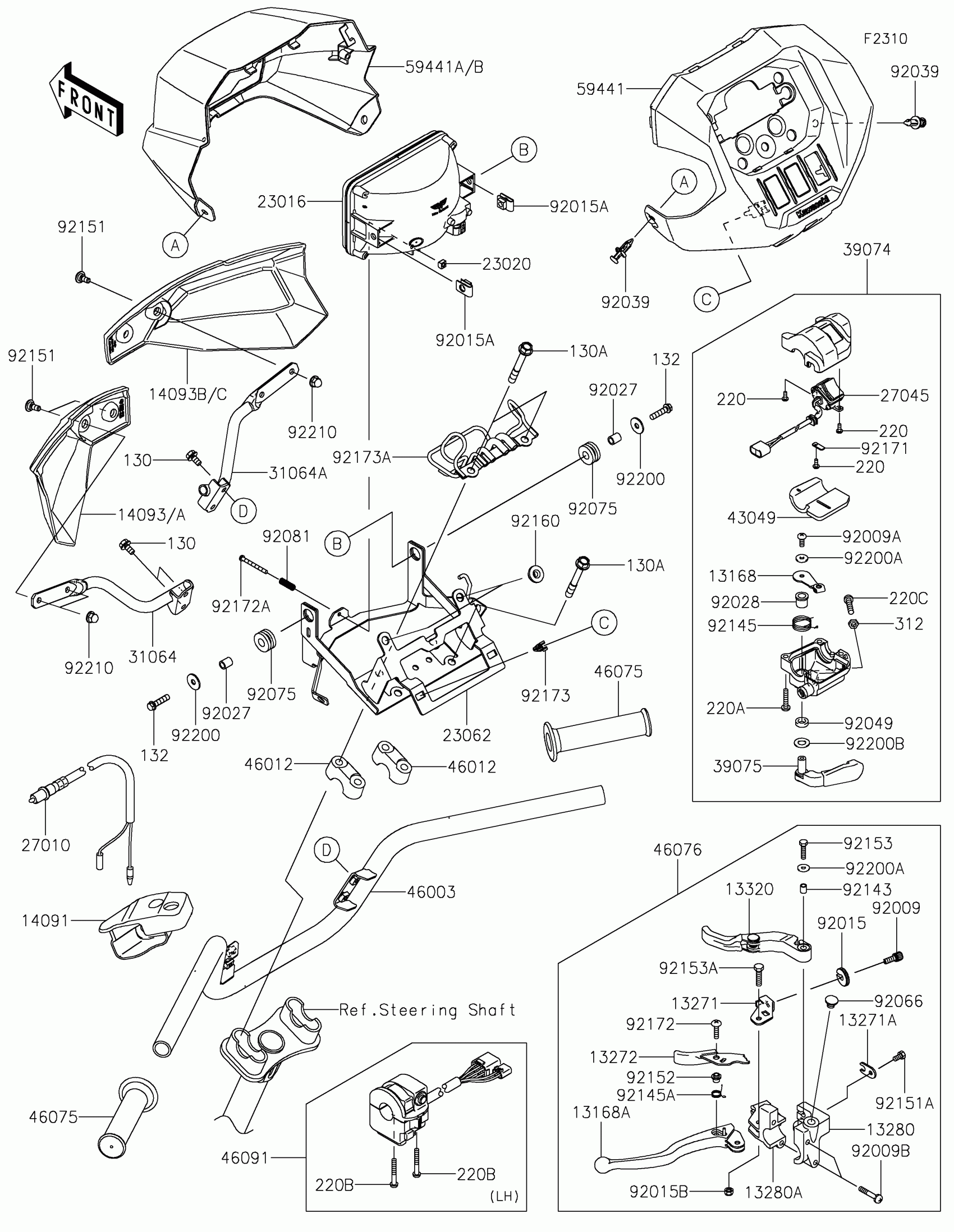

Kawasaki BRUTE FORCE® 750 LE EPS Handlebar Diagram

#

Description
Price

13168

LEVER

13168-1715

$8.37

13168A

LEVER,LH

13168-1736

$25.19

13271

PLATE,LOCK

13271-1259

$16.64

13271A

PLATE,WIRE OUTER STOPPER

13271-1636

$3.75

13272

PLATE,LEVER LOCK

13272-3826

$13.32

13280

HOLDER,DIFF LOCK LEVER

13280-1226

$28.99

13280A

HOLDER,LEVER,LH

13280-1227

$28.99

13320

LEVER-ASSY,DIFF LOCK

13320-0040

$65.11

14091

COVER,DIFF LOCK LEVER

14091-1403

$17.03

14093

COVER,HAND,LH,F.EBONY

14093-1516-45L

$115.30

14093A

COVER,HAND,LH,P.M.S.GREEN

14093-1516-72R

$115.30

14093B

COVER,HAND,RH,F.EBONY

14093-1517-45L

$115.30

14093C

COVER,HAND,RH,P.M.S.GREEN

14093-1517-72R

$115.30

23016

LAMP-ASSY,WORK

23016-0672

$105.73

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

23062

BRACKET-COMP,HANDLE

23062-1479

$23.64

27010

SWITCH,BRAKE

27010-1294

$35.85

27045

SWITCH-ASSY

27045-0010

$31.16

31064

PIPE-COMP,HAND COVER,LH

31064-0766

$13.95

31064A

PIPE-COMP,HAND COVER,RH

31064-0767

$14.32

39074

LEVER-ASSY-THROTTLE

39074-0011

$163.93

39075

LEVER-THROTTLE

39075-0032

$29.26

43049

PACKING

43049-1088

$10.63

46003

HANDLE

46003-0838

$76.98

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-0065

$26.99

46076

LEVER-ASSY-GRIP,DIFF LOCK

46076-0180

$105.23

46091

HOUSING-ASSY-CONTROL

46091-0243

$194.06

59441

COVER,METER

59441-0308

$17.61

59441A

COVER,WORK LAMP,C.C.GRAY

59441-0310-66Z

$174.66

59441B

COVER,WORK LAMP,P.M.S.GREEN

59441-0310-72R

$135.68

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92009A

SCREW

92009-1959

$1.73

92009B

SCREW,6X30

92009-1961

$1.98

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015A

NUT,6MM

92015-1602

$5.61

92015B

NUT

92015-1829

$3.12

92027

COLLAR,6.8X10X12

92027-162

$4.93

92028

BUSHING

92028-1986

$3.15

92039

RIVET

92039-0776

$0.80

92049

SEAL-OIL

92049-1578

$3.55

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1216

$5.54

92145

SPRING

92145-1392

$3.25

92145A

SPRING

92145-1429

$7.46

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15

92151A

BOLT,5X10

92151-1975

$2.00

92152

COLLAR

92152-1176

$3.85

92153

BOLT,5X20

92153-1129

$2.63

92153A

BOLT

92153-1919

$16.19

92160

DAMPER

92160-1613

$2.84

92171

CLAMP

92171-1344

$2.00

92172

SCREW,5X20

92172-0078

$1.98

92172A

SCREW,4X40

92172-1092

$0.85

92173

CLAMP

92173-1423

$1.14

92173A

CLAMP

92173-2656

$85.90

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

92200A

WASHER

92200-1558

$4.42

92200B

WASHER

92200-1559

$4.42

92210

NUT,CAP,6MM

92210-0003

$0.60

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,8X60

130CA0860

$1.28

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

220

SCREW-PAN-CROS,3X8

220AA0308

$0.54

220A

SCREW-PAN-CROS,5X25

220AB0525

$2.66

220B

SCREW-PAN-CROS,5X35

220AB0535

$1.49

220C

SCREW-PAN-CROS,6X25

220AB0625

$2.63

312

NUT-HEX,6MM,BLACK

312AB0600

$3.04
