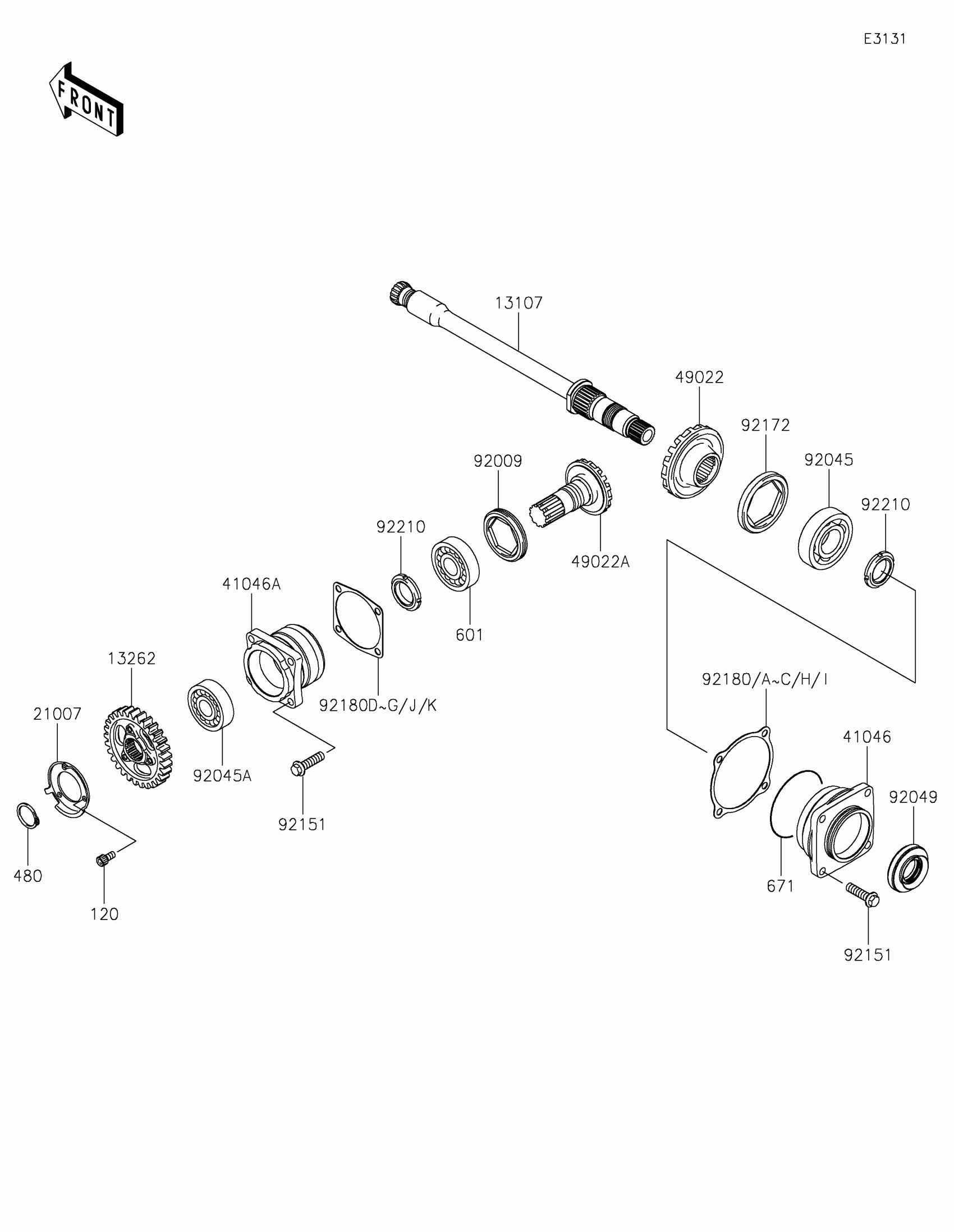

Kawasaki BRUTE FORCE® 750 LE EPS Front Bevel Gear Diagram
#
Description
Price
13107
SHAFT,F/R OUTPUT
13107-0727
$238.06
13262
GEAR,OUTPUT,29T
13262-0960
$172.03
21007
ROTOR,REVERSE SENSOR
21007-1416
$9.43
41046
HOUSING-BEARING
41046-0025
$165.88
41046A
HOUSING-BEARING
41046-1101
$139.87
49022
GEAR-BEVEL,DRIVEN,20T
49022-0011
$213.72
49022A
GEAR-BEVEL,DRIVE,12T
49022-1192
$214.46
92009
SCREW,64MM
92009-1914
$29.63
92045
BEARING-BALL,6306SH2
92045-1190
$40.80
92045A
BEARING-BALL,62/28
92045-1207
$19.03
92049
SEAL-OIL
92049-0160
$12.92
92151
BOLT-FLANGED-SMALL,8X30
92151-1688
$2.80
92172
SCREW,SET,75X10
92172-0371
$46.79
92180
SHIM,DRIVEN,T=0.15
92180-1307
Unavailable
92180A
SHIM,DRIVEN,T=0.20
92180-1308
Unavailable
92180B
SHIM,DRIVEN,T=0.50
92180-1309
Unavailable
92180C
SHIM,DRIVEN,T=0.80
92180-1310
Unavailable
92180D
SHIM,DRIVE,T=0.15
92180-1311
Unavailable
92180E
SHIM,DRIVE,T=0.20
92180-1312
Unavailable
92180F
SHIM,DRIVE,T=0.50
92180-1313
Unavailable
92180G
SHIM,DRIVE,T=0.80
92180-1314
Unavailable
92180H
SHIM,DRIVEN,T=1.00
92180-1349
Unavailable
92180I
SHIM,DRIVEN,T=1.20
92180-1350
Unavailable
92180J
SHIM,DRIVE,T=1.00
92180-1351
Unavailable
92180K
SHIM,DRIVE,T=1.20
92180-1352
Unavailable
92210
NUT,30MM
92210-1294
$40.82
120
BOLT-SOCKET,6X12
120CA0612
$1.71
480
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
601
BALL BEARING,#6206
601B6206
$22.50
671
O RING
671D2585
$7.98
