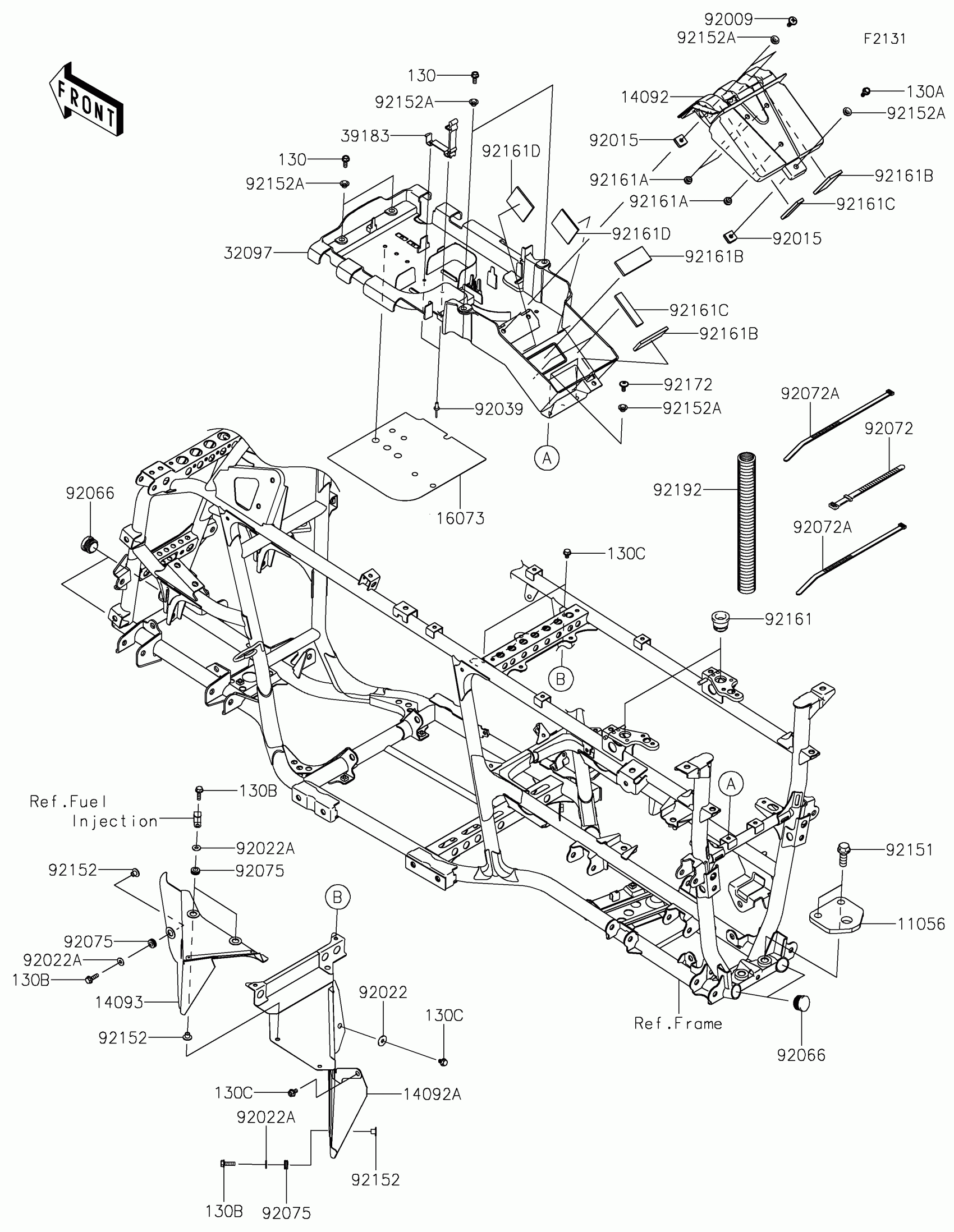

Kawasaki BRUTE FORCE® 750 LE EPS Frame Fittings Diagram
#
Description
Price
11056
BRACKET,TRAILER HITCH
11056-0299
$8.18
14092
COVER,BATTERY
14092-0189
$8.40
14092A
COVER,HEAT GUARD,FR
14092-0897
$74.19
14093
COVER,HEAT GUARD
14093-0021
$46.76
16073
INSULATOR,BATTERY CASE
16073-0809
$8.08
32097
CASE-BATTERY
32097-0577
$25.72
39183
BAND-ASSY,TOOL BAG
39183-1065
$9.49
92009
SCREW,6X20
92009-1289
$4.31
92015
NUT,6MM
92015-1094
$8.58
92022
WASHER,6.5X20X1.6
92022-1804
$1.40
92022A
WASHER,6.2X15X1.2
92022-2373
$0.43
92039
RIVET,4.8MM
92039-3719
$6.22
92066
PLUG
92066-0036
$2.10
92072
BAND,L=186
92072-056
$5.00
92072A
BAND,L=292.1
92072-3509
Unavailable
92075
DAMPER
92075-2097
$2.06
92151
BOLT,FLANGED,12X35
92151-1903
$7.36
92152
COLLAR,6.3X8.3X9.2
92152-0237
$5.65
92152A
COLLAR,6.3X8.3X7.2
92152-1865
$1.19
92161
DAMPER
92161-0048
$6.37
92161A
DAMPER
92161-1084
$2.67
92161B
DAMPER,30X70X5
92161-1127
$7.65
92161C
DAMPER,15X70X5
92161-1380
$3.02
92161D
DAMPER,50X50X3
92161-1386
$3.85
92172
SCREW,6X14
92172-0401
$2.55
92192
TUBE,CORRUGATED,25.5X32.25X300
92192-1042
$4.18
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,6X18
130BA0618
$1.54
130B
BOLT-FLANGED,6X20
130BA0620
$1.74
130C
BOLT-FLANGED,6X10
130BD0610
$3.67
