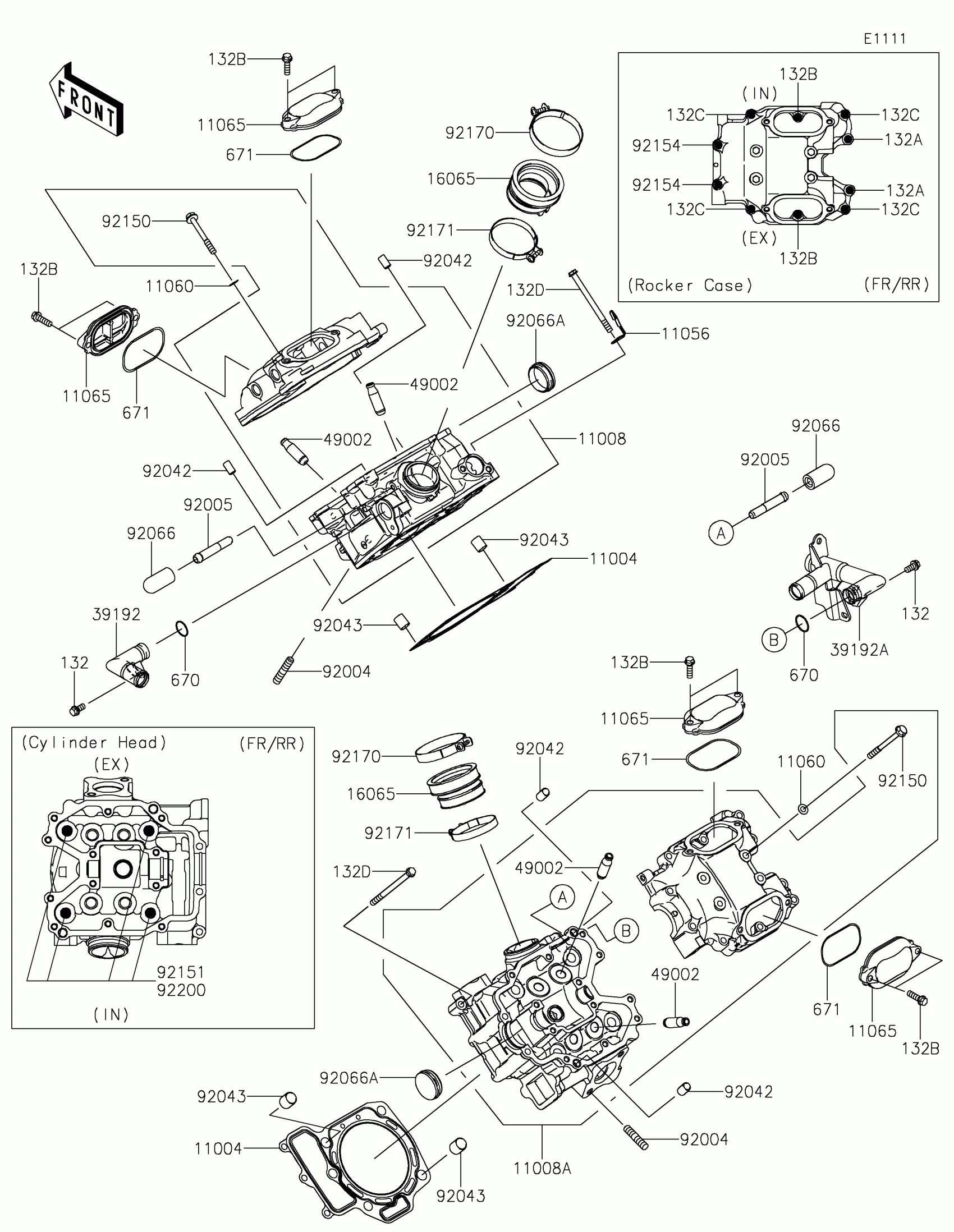

Kawasaki BRUTE FORCE® 750 LE EPS Cylinder Head Diagram
#
Description
Price
11004
GASKET-HEAD
11004-0011
$29.14
11008
HEAD-COMP-CYLINDER,FR
11008-1495
$881.32
11008A
HEAD-COMP-CYLINDER,RR
11008-1496
$881.32
11056
BRACKET
11056-1255
$4.41
11060
GASKET,6.2X12X0.3
11060-1994
$2.39
11065
CAP,ROCKER CASE
11065-0724
$14.18
16065
HOLDER-CARBURETOR
16065-0113
$14.62
39192
PIPE-WATER,FR
39192-0119
$36.44
39192A
PIPE-WATER,RR
39192-0120
$84.91
49002
GUIDE-VALVE
49002-0706
$28.86
92004
STUD,8X22
92004-1217
$5.65
92005
FITTING
92005-1264
$7.56
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,10.1X12X14
92043-4009
$6.22
92066
PLUG
92066-0713
$3.62
92066A
PLUG
92066-0904
$13.56
92150
BOLT,6X55
92150-1302
$6.34
92151
BOLT,FLANGED,10X150
92151-1917
$20.09
92154
BOLT,FLANGED,6X130
92154-0993
$4.41
92170
CLAMP
92170-1448
$8.10
92171
CLAMP
92171-0722
$15.20
92200
WASHER,11.5X20.5X1.6
92200-1128
$5.52
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
132B
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
132C
BOLT-FLANGED-SMALL,6X30
132BA0630
$2.65
132D
BOLT-FLANGED-SMALL,6X95
132BA0695
$2.49
670
O RING,16MM
670B2016
$1.36
671
O RING,55MM
671D2555
$3.65
