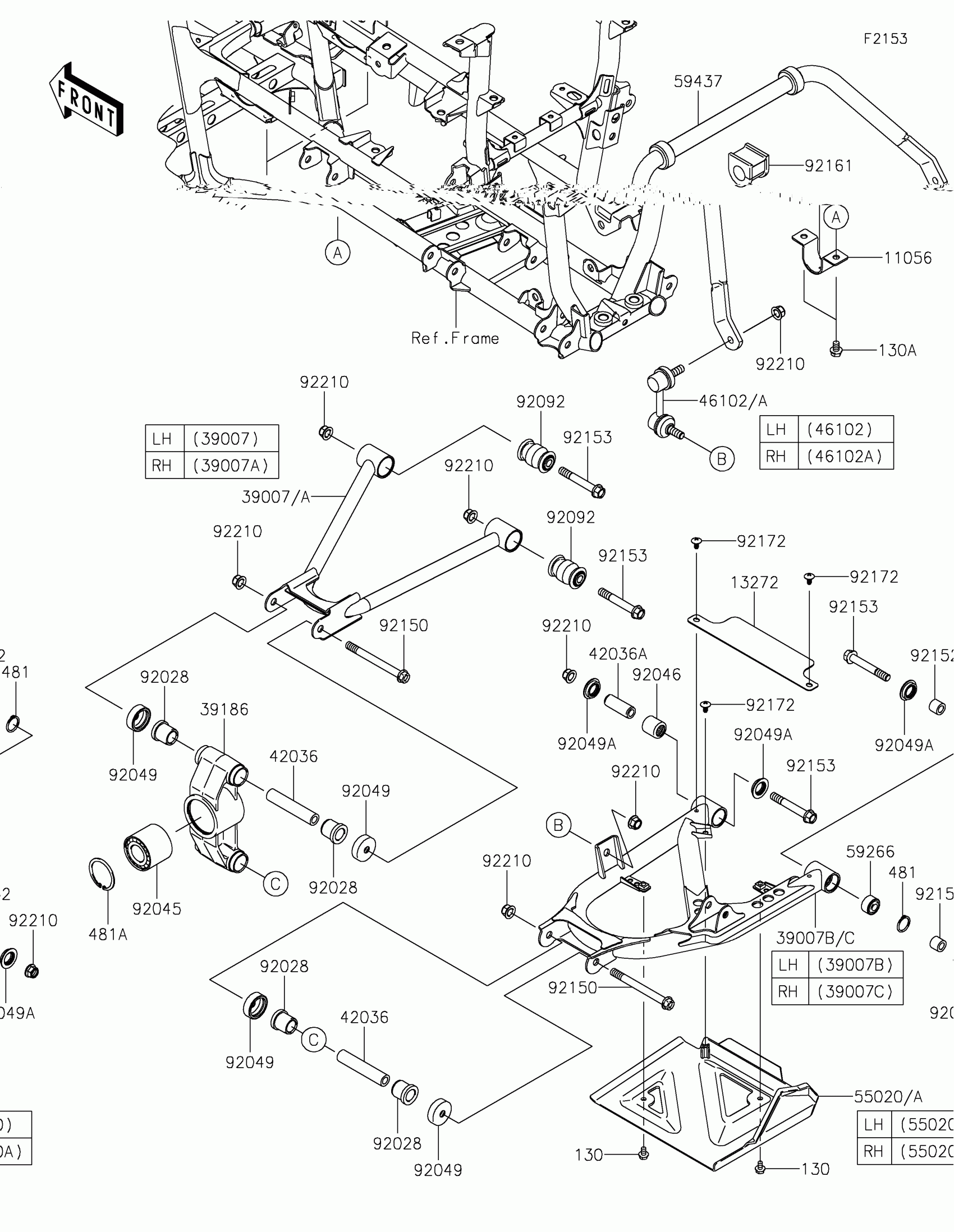

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Rear Suspension Diagram
#
Description
Price
11056
BRACKET,STABILIZER
11056-1062
$3.62
13272
PLATE,RR ARM
13272-0919
$2.45
39007
ARM-SUSP,RR,UPP,LH,BLACK
39007-0170-10
$83.53
39007A
ARM-SUSP,RR,UPP,RH,BLACK
39007-0171-10
$83.53
39007B
ARM-SUSP,RR,LWR,LH,BLACK
39007-0172-10
$111.32
39007C
ARM-SUSP,RR,LWR,RH,BLACK
39007-0173-10
$111.32
39186
KNUCKLE,RR
39186-0099
$213.30
42036
SLEEVE,10X17X85.6
42036-1190
$29.63
42036A
SLEEVE
42036-1376
$14.71
46102
ROD,STABILIZER,LH
46102-0100
$48.58
46102A
ROD,STABILIZER,RH
46102-0101
$48.58
55020
GUARD,REAR ARM,LH,F.BLACK
55020-0972-6Z
$33.78
55020A
GUARD,REAR ARM,RH,F.BLACK
55020-0973-6Z
$33.78
59266
JOINT-BALL
59266-0013
$65.53
59437
STABILIZER,RR
59437-0307
$104.90
92028
BUSHING
92028-1466
$10.28
92045
BEARING-BALL,25BWD02ACA68
92045-0094
Unavailable
92046
BEARING-NEEDLE
92046-1046
$27.88
92049
SEAL-OIL,KNUCKLE
92049-1198
$20.09
92049A
SEAL-OIL,MHA17245.7F
92049-1223
$8.86
92092
BUSHING-RUBBER
92092-0004
$8.28
92150
BOLT,FLANGED,10X105
92150-1624
$9.91
92152
COLLAR,10X17X14.5
92152-1455
$9.07
92153
BOLT,FLANGED,10X70
92153-1606
$4.65
92161
DAMPER
92161-0265
$5.64
92172
SCREW,6X12
92172-0884
$3.86
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,8X12
130BA0812
$0.95
481
CIRCLIP-TYPE-C,24MM
481J2400
$3.40
481A
CIRCLIP-TYPE-C,52MM
481J5200
$4.96
