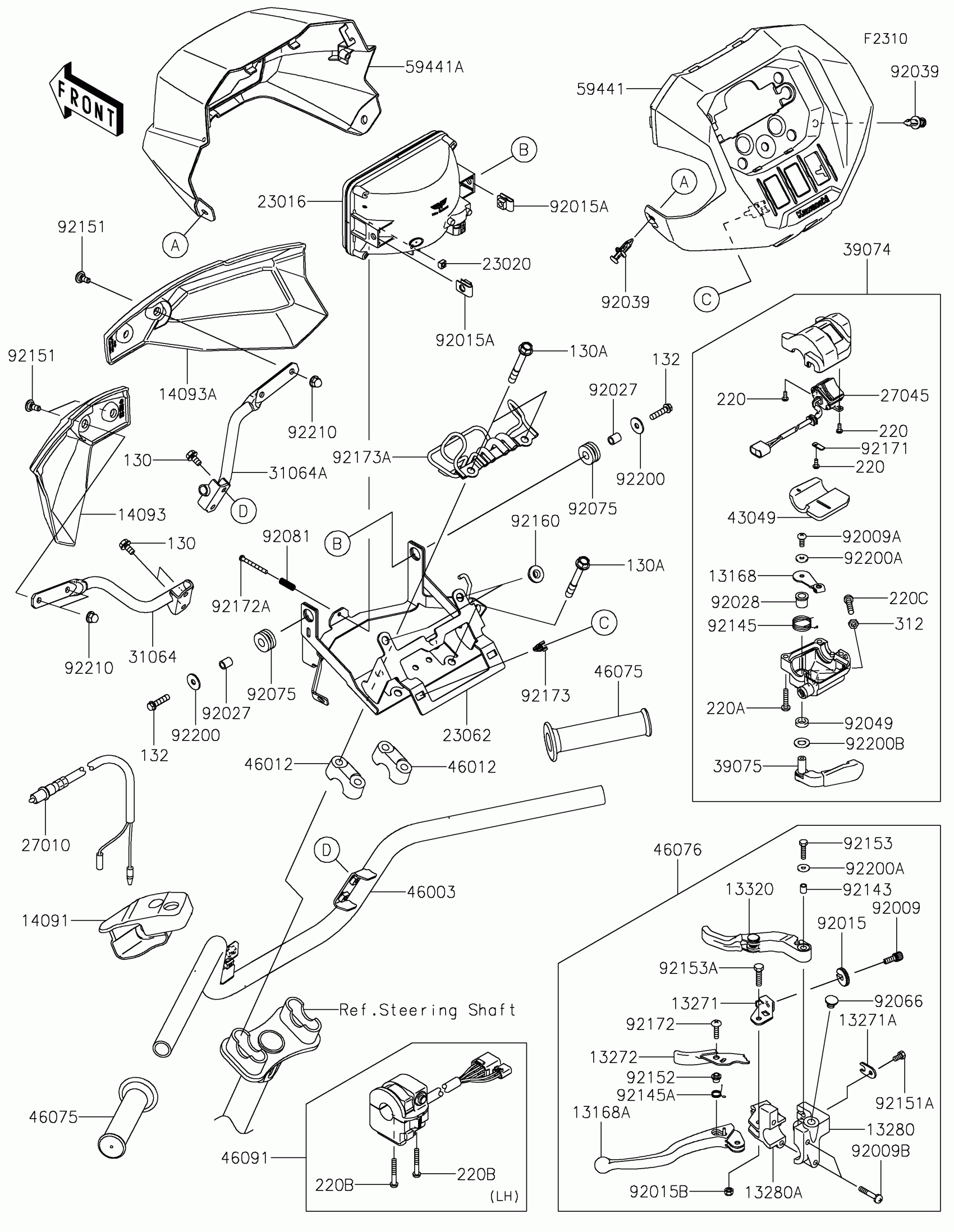

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Handlebar Diagram

#

Description
Price

13168

LEVER

13168-1715

$8.58

13168A

LEVER,LH

13168-1736

$26.86

13271

PLATE,LOCK

13271-1259

$17.76

13271A

PLATE,WIRE OUTER STOPPER

13271-1636

$4.18

13272

PLATE,LEVER LOCK

13272-3826

$14.02

13280

HOLDER,DIFF LOCK LEVER

13280-1226

$28.44

13280A

HOLDER,LEVER,LH

13280-1227

$28.44

13320

LEVER-ASSY,DIFF LOCK

13320-0040

$63.90

14091

COVER,DIFF LOCK LEVER

14091-1403

$18.20

14093

COVER,HAND,LH,F.EBONY

14093-1516-45L

$113.05

14093A

COVER,HAND,RH,F.EBONY

14093-1517-45L

$113.05

23016

LAMP-ASSY,WORK

23016-0672

$103.83

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

23062

BRACKET-COMP,HANDLE

23062-1479

$25.24

27010

SWITCH,BRAKE

27010-1294

$35.18

27045

SWITCH-ASSY

27045-0010

$34.82

31064

PIPE-COMP,HAND COVER,LH

31064-0766

$14.77

31064A

PIPE-COMP,HAND COVER,RH

31064-0767

$15.17

39074

LEVER-ASSY-THROTTLE

39074-0011

$183.68

39075

LEVER-THROTTLE

39075-0032

$28.70

43049

PACKING

43049-1088

$11.06

46003

HANDLE

46003-0838

$75.62

46012

HOLDER-HANDLE

46012-1168

$16.33

46075

GRIP

46075-0065

$30.65

46076

LEVER-ASSY-GRIP,DIFF LOCK

46076-0180

$103.23

46091

HOUSING-ASSY-CONTROL

46091-0243

$190.03

59441

COVER,METER

59441-0308

$18.91

59441A

COVER,WORK LAMP,CAMOUFLAGE

59441-0310-72X

$170.15

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$16.33

92009A

SCREW

92009-1959

$2.41

92009B

SCREW,6X30

92009-1961

$2.80

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$8.86

92015A

NUT,6MM

92015-1602

$7.34

92015B

NUT

92015-1829

$4.26

92027

COLLAR,6.8X10X12

92027-162

$6.57

92028

BUSHING

92028-1986

$4.14

92039

RIVET

92039-0776

$1.19

92049

SEAL-OIL

92049-1578

$4.67

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92143

COLLAR

92143-1216

$6.34

92145

SPRING

92145-1392

$3.70

92145A

SPRING

92145-1429

$7.58

92151

BOLT,DISC PLATE,6MM

92151-1799

$4.13

92151A

BOLT,5X10

92151-1975

$2.41

92152

COLLAR

92152-1176

$4.31

92153

BOLT,5X20

92153-1129

$3.26

92153A

BOLT

92153-1919

$17.27

92160

DAMPER

92160-1613

$3.74

92171

CLAMP

92171-1344

$2.41

92172

SCREW,5X20

92172-0078

$2.80

92172A

SCREW,4X40

92172-1092

$0.85

92173

CLAMP

92173-1423

$1.48

92173A

CLAMP

92173-2656

$84.27

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

92200A

WASHER

92200-1558

$5.00

92200B

WASHER

92200-1559

$5.00

92210

NUT,CAP,6MM

92210-0003

$0.64

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,8X60

130CA0860

$1.77

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

220

SCREW-PAN-CROS,3X8

220AA0308

$0.59

220A

SCREW-PAN-CROS,5X25

220AB0525

$3.52

220B

SCREW-PAN-CROS,5X35

220AB0535

$2.06

220C

SCREW-PAN-CROS,6X25

220AB0625

$3.67

312

NUT-HEX,6MM,BLACK

312AB0600

$3.92
