2025 Kawasaki Brute Force® 750 LE EPS Camo Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2025 Kawasaki Brute Force® 750 LE EPS Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

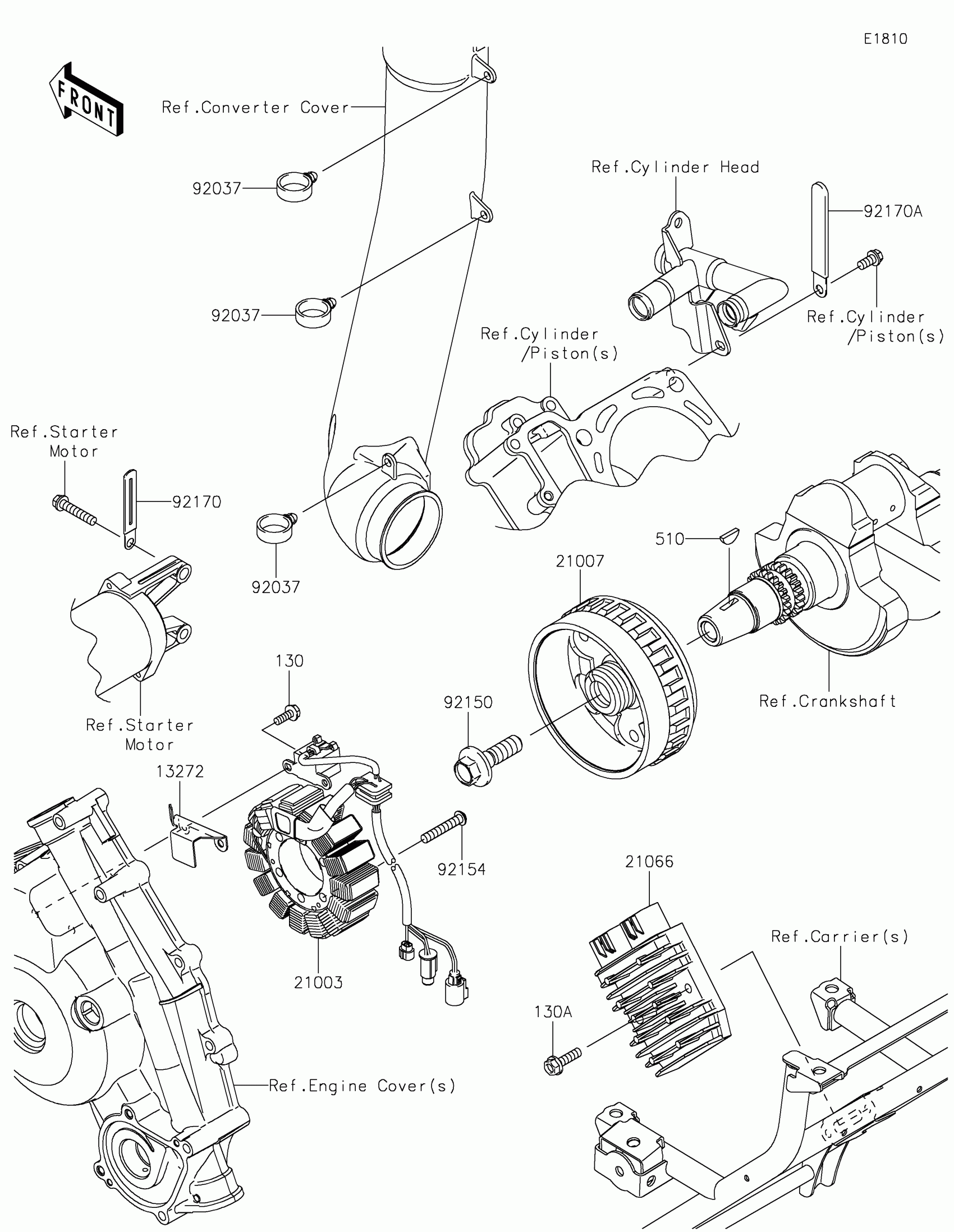

2025 Kawasaki Brute Force® 750 LE EPS Camo Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-1222

1

$3.20

In stock

21003

STATOR

21003-0167

1
Out of stock

21007

ROTOR

21007-0633

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0771

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92150

BOLT,12X40

92150-1717

1
Out of stock

92154

BOLT,TORX,6X35

92154-1007

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92170A

CLAMP

92170-1925

1

$1.98

In stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

130A

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

510

KEY-WOODRUFF

510A4200

1
Out of stock
