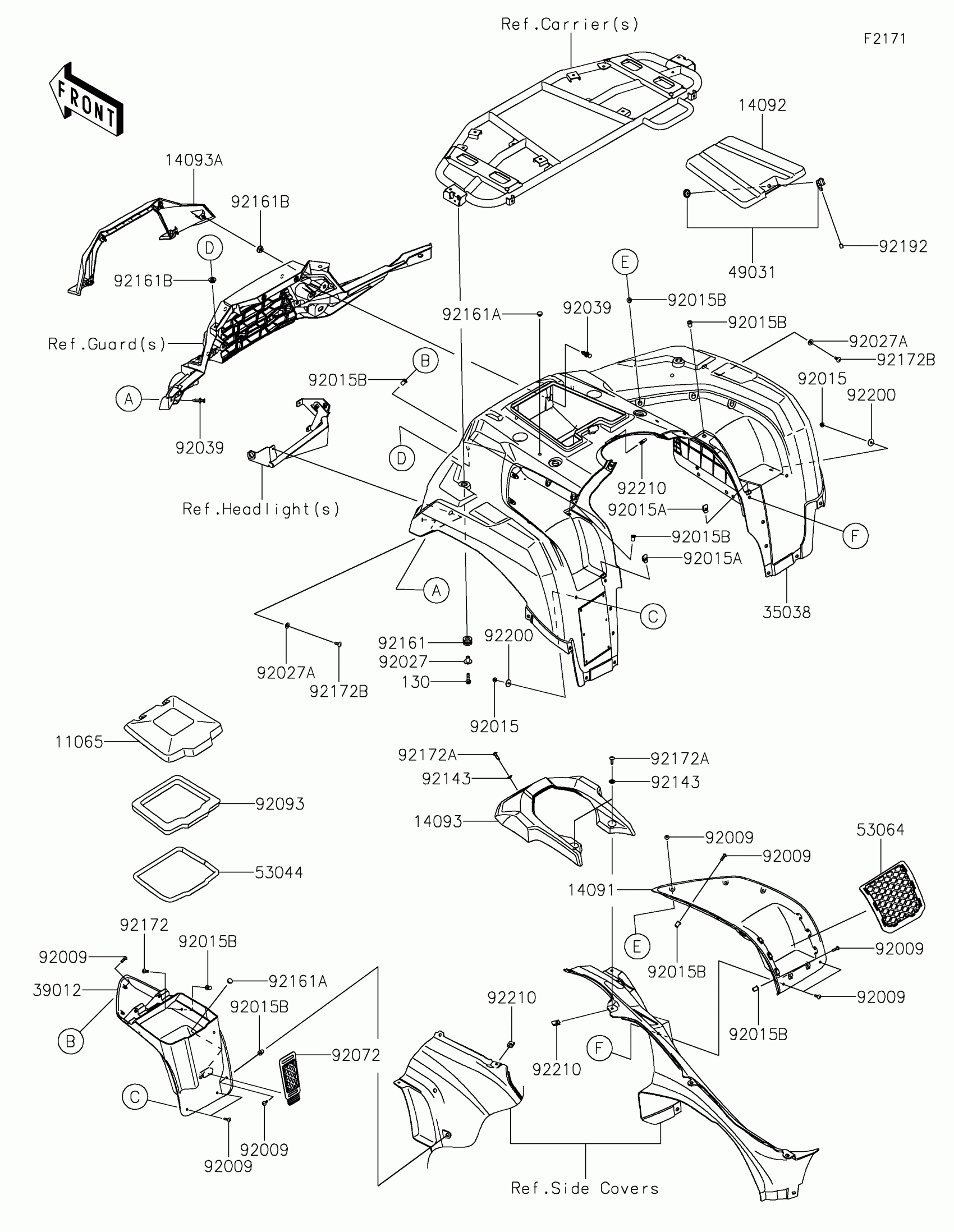

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Front Fender(s) Diagram
#
Description
Price
11065
CAP,STORAGE,F.BLACK
11065-0194-6Z
$12.44
14091
COVER,POCKET,RH,F.BLACK
14091-0136-6Z
$29.71
14092
COVER,STORAGE BOX
14092-0180
$42.35
14093
COVER,TOP
14093-1508
$84.31
14093A
COVER,FR,CAMOUFLAGE
14093-1518-72X
$116.82
35038
FENDER-FRONT,CAMOUFLAGE
35038-0049-72X
$563.78
39012
CASE-STORAGE,F.BLACK
39012-0015-6Z
$32.52
49031
LATCH
49031-0004
$6.60
53044
TRIM,L=700
53044-0037
$11.93
53064
NET-CARGO
53064-0002
$9.00
92009
SCREW,5X18
92009-1655
$4.31
92015
NUT,FLANGED,5MM
92015-1259
$3.92
92015A
NUT,5MM
92015-1710
$6.22
92015B
NUT,WELL,5MM
92015-1757
$7.29
92027
COLLAR,L=16.1
92027-1847
$6.22
92027A
COLLAR
92027-4020
$4.65
92039
RIVET
92039-0776
$1.19
92072
BAND,STORAGE
92072-0095
$9.15
92093
SEAL,STORAGE CAP
92093-0568
$19.99
92143
COLLAR
92143-1087
$4.31
92161
DAMPER
92161-0106
$1.73
92161A
DAMPER
92161-0586
$2.34
92161B
DAMPER
92161-1531
$3.02
92172
SCREW,5X18
92172-0428
$0.88
92172A
SCREW,TAPPING,6X20
92172-0488
$3.02
92172B
SCREW,TAPPING,6X16
92172-0739
$0.85
92192
TUBE,4.8X7.9X10
92192-2759
$1.48
92200
WASHER,5.5X20X1.2
92200-0284
$2.15
92210
NUT,LEAF SPRING,6MM
92210-0624
$2.32
130
BOLT-FLANGED,6X25
130BA0625
$1.20
